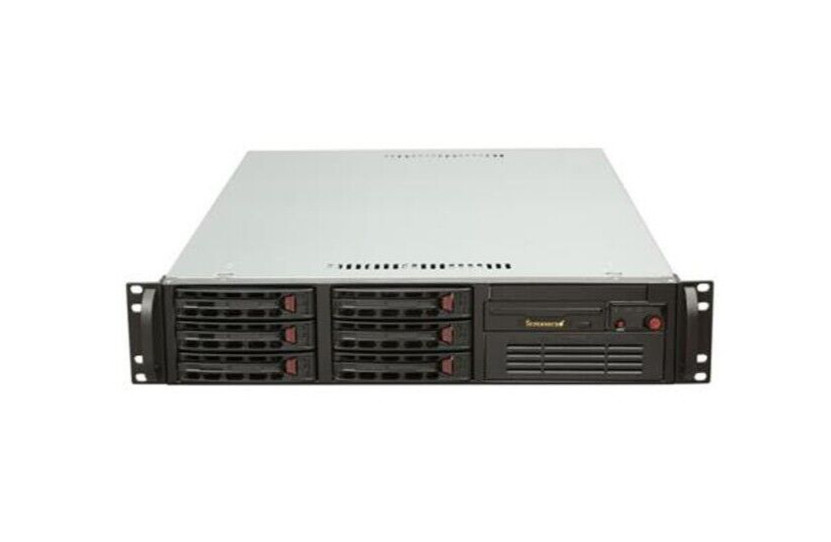

Supermicro SuperChassisCSE-822T-400LPB (SC822T-400LPB)Chassis NEW, IN STOCK, 5 Year Warranty
SpecificationsProduct SKUsCSE-822T-400LPB

• SuperChassis 822T-400LPB

Form Factor

2U chassis supports for maximum motherboard sizes - E-ATX 12" x 13", ATX 12" x 10" motherboards

Processor Support

Dual and Single Intel® and AMD processors

DimensionsHeight

• 3.5" (89 mm)

Width

• 16.8" (426 mm)

Depth

• 25.6" (650 mm)

Gross Weight

• 49 lbs (22.23 kg)

Packaging (W x H x L)

• 23.8" (605 mm) x 9.8" (249 mm) x 32.9" (836 mm)

Available Color

• Black

Expansion Slots

• 7 low-profile expansion slot(s)

Drive Bays

• 6 x 3.5" hot-swap SAS/SATA

Backplane

• 6-port 2U TQ backplane (W/O AMI9071/72 enclosure management), support up to 6x 3.5-inch SAS/SATA HDD

Peripheral Drives

• 1 x slim DVD-ROM drive bay

Front PanelButtons

• Power On/Off button
• System Reset Button

LEDs

• 2 Network Activity LEDs
• HDD activity LED
• Power Status LED
• Power Fail LED
• System Information LED

Systems CoolingFans

• 4 x 8cm hot-swap redundant PWM cooling fan(s)

Operating Environment (System)Operating Temperature Range

• 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)

Power Supply2U 400W Multi-output power supply 24pin outputPower Efficiency

• 87%

Total Output Power and Input

• 400W with Input 100 - 240Vac

AC Input Frequency

• 308 x 106 x 83.2 mm

Output Type

• 24pin ATX

-12V

• Max: 0.5A / Min: 0A

+12V

• Max: 32A / Min: 1A (100Vac - 240Vac)

+5V

• Max: 30A / Min: 0.5A

+3.3V

• Max: 25A / Min: 0.3A

+5Vsb

• Max: 4A / Min: 0A

Certification

• Certified


Regulatory (Power Supply)Power Supply Safety / EMC

• CE/EMC
• FCC class B
• TUV/CB
•
