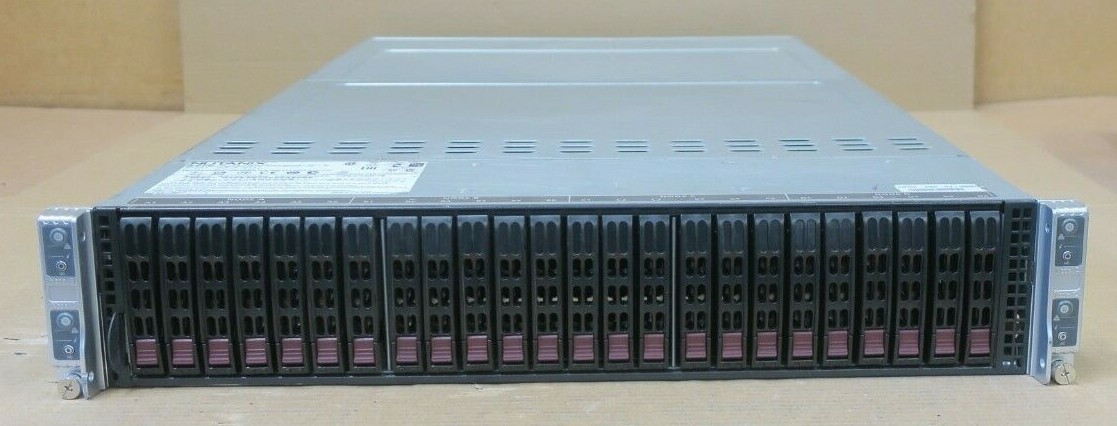

Supermicro SuperServer 2028TP-HC0R 24-Bay CTO 3-Node Server X10DRT-P 2x PSU
Chassis P/N:2028TP-HC0RNode P/N: X10DRT-P
In Good Condition, Full Working OrderTested1 Year Warranty
CTO Configure-To-OrderCTO Server, no memory, no CPU, no HDD included - required in order to operate, we can quote to supply if required
Included:

• 1 x Supermicro SuperServer 2028TP-HC0R4-Node Server Chassis
• 1 x 24x 2.5" Bay BackplaneBPN-SAS3-217HQ
• 24 x 2.5" Hard Drive Caddies
• 2 x 2000W Power SupplyPWS-2K04A-1R
• 1 x Bezel
• 3 x Server Nodes X10DRT-P Each With:
• 2 x Heatsinks
• 16 x DDR4 Memory Slots
• Motherboard - X10DRT-P rev 1.10
• 1 x TwinPro Riser card with one PCI-E x16 slot RSC-R1UTP-E16R rev 3.00
• 1 x Backplane Adapter CardBPN-ADP-S3008L-L6IP rev 1.00

Full Manufacturers specification:
Product SKUsSYS-2028TP-HC0R

• SuperServer 2028TP-HC0R (Black)

Motherboard (Four per System)
Super X10DRT-PProcessor/Cache (per Node)CPU

• Intel® Xeon® processor E5-2600v4†/ v3 family (up to 145W TDP)*

• Dual Socket R3 (LGA 2011)

Cores / Cache

• Up to22 Cores†/ Up to55MB†Cache

System Bus

• QPI up to 9.6 GT/s

Note†BIOS version 2.0 or above is requiredSystem Memory (per Node)Memory Capacity

• 16x 288-pin DDR4 DIMM slots
• Up to 2TB†ECC 3DS LRDIMM, 512GB ECC RDIMM

Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices (per Node)Chipset

• Intel® C612 chipset

SAS

• Broadcom 3008 SAS3 (12Gbps) controller;
  RAID 0, 1, 10 support

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® i350-AM2 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1 Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• ASPEED AST2400 BMC

Input / Output (per Node)SAS

• 6 SAS3 (12Gbps) ports

LAN

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 2 USB 3.0 ports total (2 rear)

VGA

• 1 VGA port

Serial Port / Header

• 1 Fast UART 16550 port / 1 Header (internal)

Others

• 1SATADOMsupport on the motherboard

ChassisForm Factor

• 2U Rackmount

Model

• 17.25" (438mm)

Height

• 3.47" (88mm)

Depth

• 28.75" (730mm)

Weight

• Gross Weight: 90 lbs (40.9kg)
• Net Weight: 72 lbs (32.7 kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2 Network activity LEDs
• Universal Information (UID) LED

Expansion Slots (per Node)PCI-Express

• 1 PCI-E 3.0 x16 Low-profile slot

0 Slot

• 1x "0 slot" (x16)

Drive Bays (per Node)Hot-swap

• 6 Hot-swap 2.5" SAS/SATA HDD trays

System CoolingFans

• 4 heavy duty 8cm PWM fans with optimal fan speed control

Power Supply (76mm Width)2000W Redundant Power Supplies with PMBusTotal Output Power

• 1000W: 100 – 127Vac
• 1800W: 200 – 220Vac
• 1980W: 220 – 230Vac
• 2000W: 230 – 240Vac
• 2000W: 200 – 240Vdc (UL/cUL only)

Dimension
(W x H x L)

• 76 x 40 x 336 mm

Input

• 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
• 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
• 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)

+12V

• Max: 83.3A / Min: 0A (100-127 Vac)
• Max: 150A / Min: 0A (200-220 Vac)
• Max: 165A / Min: 0A (220-230 Vac)
• Max: 166.7A / Min: 0A (230-240 Vac)
• Max: 166.7A / Min: 0A (200-240 Vac)
  (UL/cUL only)

+5Vsb

• Max: 1A / Min: 0A

Output Type

• 27 Pairs Gold Finger Level

  System BIOSBIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
  BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
  Operating Environment / ComplianceRoHS

  • RoHS Compliant
  Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
  We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
  VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£800 excluding VAT
  VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
