Chassis P/N:6028TR-DTR

Node P/N:X10DRT-H

In Good Condition, Full Working Order

Tested

Included

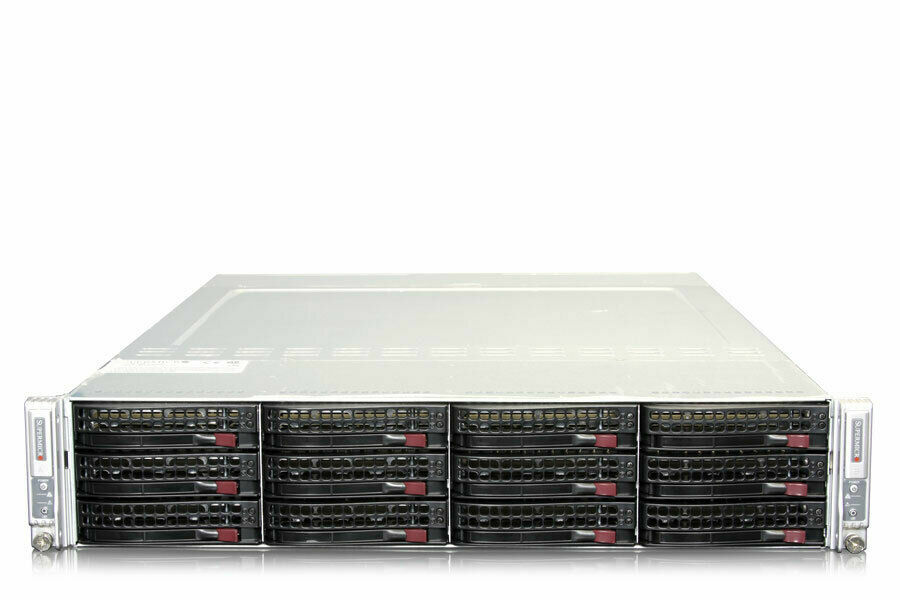

• 1 xSupermicro SuperServer 6028TR-DTR2-Node Server Chassis
• 12 x Drive Caddies
• 2 x 1280W Power Supply
• 2 x Server NodesX10DRT-HEach With:
• 2 x Intel Xeon Fourteen-Core E5-2695v3 2.30GHz Processors With Heatsinks
• 64GB DDR4 Memory
• Backplane Adapter -BPN-ADPX9-6SATA
• 1 x 2U Riser Card W/ 3 PCI-E x8 Twin MBs - Supermicro 2U Twin Server consists of 2 nodes in a 2U chassis with shared redundant PSU and backplane. The 6028TR-DTR has an advantage over two 1U systems as it has more drive bays and PCIe slots in the same space.
  Each node supports the following:
  • Up to 2x Intel Xeon E5-2600 v4/v3 Family Processors
  • 8x DIMM Slots for up to 1TB ECC 3DS LRDIMM DDR4-2400MHz Memory
  • 3x PCI-E 3.0 x8 Slots (1x Low-Profile and 2x Full Height Half Length)
  • 1x Intel I350 With Dual Port Gigabit Ethernet LAN Ports
  • 6x 3.5" Hot-Swap SATA 3.0 Drive Bays
  • 2x SATA DOM
  • 2x 1280W Redundant Power Supplies Platinum Level
  Full Manufacturers specification:

  System Memory (per Node)Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB†ECC 3DS LRDIMM, 256GB ECC RDIMM
  Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
  Memory Voltage
  • 1.2 V
  Error Detection
  • Corrects single-bit errors
  On-Board Devices (per Node)Chipset
  • Intel® C612 chipset
  SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
  Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
  Video
  • ASPEED AST2400 BMC
  Input / Output (per Node)Serial ATA
  • 8x SATA3 (6Gbps) ports
  LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
  USB
  • 2x USB 3.0 ports (rear)
  Video
  • 1x VGA port
  Serial Port / Header
  • 1x RS232
  ChassisForm Factor
  • 2U Rackmount
  Model
  • 17.25" (438mm)
  Height
  • 3.47" (88mm)
  Depth
  • 28.5" (724mm)
  Package
  • 26.4" (H) x 11.2" (W) x 39.8" (D)
  Weight
  • Gross Weight: 85 lbs (38.6kg)
  • Net Weight: 54.5 lbs (24.7 kg)
  Available Colors
  • Black
  Front PanelButtons
  • Power On/Off button
  • System Reset button
  • UID button
  LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED
  Expansion Slots (per Node)PCI-Express
  • 1x PCI-E 3.0 (x8) Low-profile slot
  • 2x PCI-E 3.0 (x8) Full-height Half-length slots
  Drive Bays (per Node)Hot-swap
  • 6x 3.5" Hot-swap SATA3 HDD trays



  System CoolingFans
  • 4x 8cm heavy duty PWM fans with optimal fan speed control
  Power Supply1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2AC Input
  • 1000W Output @ 100-140V, 8-12A, 50-60Hz
  • 1280W Output @ 180-240V, 6-8A, 50-60Hz
  DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
  Certification
  Platinum CertifiedSystem BIOSBIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
  BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
  Operating Environment / ComplianceRoHS

  • RoHS Compliant
  Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

  We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
