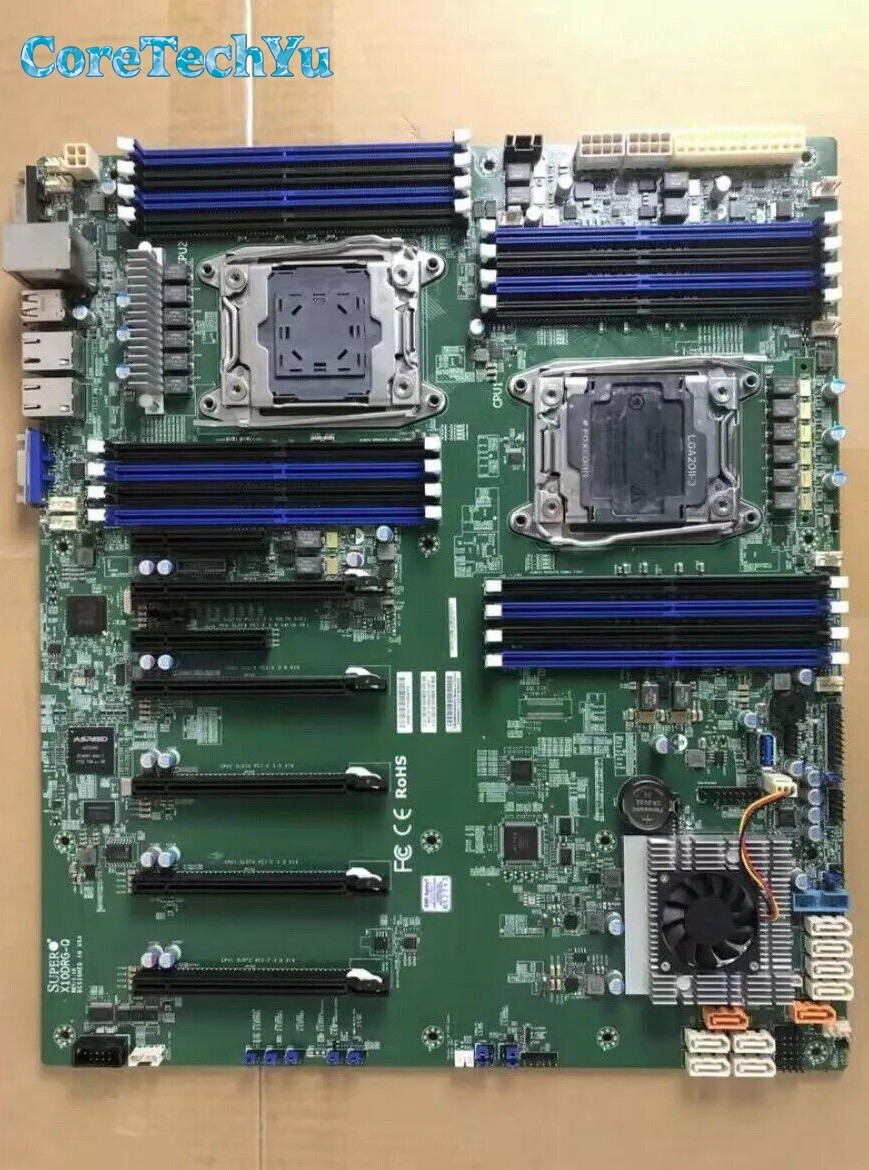

CPU

·Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.

·Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s

Cores / Cache

·Up to 22 cores † / Up to 55MB† cache

Note

·† BIOS version 2.0 or above is required

Note

·** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory

Memory Capacity

·16x 288-pin DDR4 DIMM slots ,

·Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM

Memory Type

·2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

·RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB

·LRDIMM: 32GB, 64GB

·3DS LRDIMM: 128GB

Memory Voltage

·1.2V

Error Detection

·Corrects single-bit errors

On-Board Devices

Chipset

·Intel® C612

SATA

·RAID 0,1,5,10

·Intel® C612 controller for 6 SATA3 (6 Gbps) ports;

AHCI SATA

·SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA

·SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI

·Support for Intelligent Platform Management Interface v.2.0

·IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

·ASPEED AST2400 BMC

Network Controllers

·Dual LAN with Intel® i350 Gigabit Ethernet Controller
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Audio

·HD Audio with optical S/PDIF

Graphics

·Aspeed AST2400 BMC

Please note: Due to the aviation requirements of express delivery, we will remove the button battery from the motherboard.
