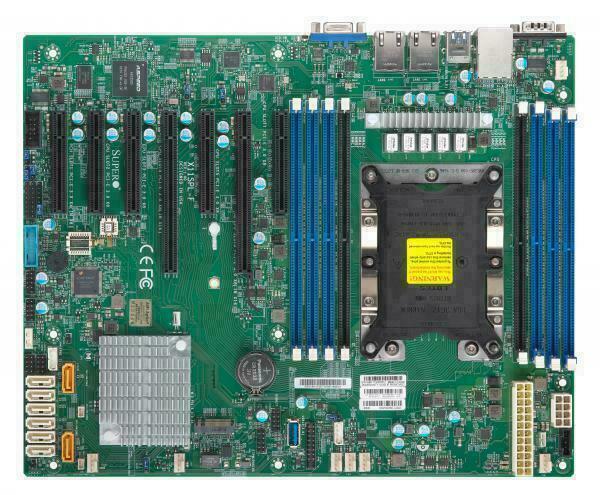

FOR Supermicro X11SPL-F Motherboard ATX Intel Xeon Scalable LGA364
-
- Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W
- Intel® C621 Chipset
- Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots
- Expansion slots:
- 2 PCI-E 3.0 x8 (in x16),
- 4 PCI-E 3.0 x8,
- 1 PCI-E 3.0 x4 (in x8)
- 2 GbE LAN ports
- 8 SATA3 (6Gbps) ports
- I/O: 1 VGA, 2 COM, TPM header
- 2 SuperDOM with built-in power
- 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers)
- M.2 NGFF connector
- M.2 Interface: PCI-E 3.0 x4 and SATA
- Form Factor: 2280, 22110
- Key: M-Key
- Double Height Connector
Main Specifications Form Factor ATX
Device Type Motherboard
Dimensions (WxDxH) 12" x 9.6" (30.48cm x 24.38cm)
Processor Compatible Processors Intel Xeon Processor Scalable Family
Processor Sockets Single Socket P (LGA 3647) supported, CPU TDP support 165W
Cache/Cores Up to 28 cores
System Memory Memory Capacity 8x 288-pin DDR4 DIMM slots
Up to 1TB ECC 3DS LRDIMM
Up to 512GB ECC LRDIMM
Up to 256GB ECC RDIMM
Memory Type 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices Chipset Intel C621
SATA Intel C621 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Dual LAN with 1GbE with Intel I210
Graphics Aspeed AST2500 BMC
Input / Output USB 8 USB 2.0 ports (2 rear + 6 via header(s))
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
VGA 1 VGA port
Serial Port / Headers 2 COM Ports (1 rear, 1 header(s))
TPM TPM Header
Expansion / Connectivity Expansion Slots Total (Free) PCI-E: 2 PCI-E 3.0 x8 (in x16 slot)
PCI-E: 4 PCI-E 3.0 x8
PCI-E: 1 PCI-E 3.0 x4 (in x8 slot)
M.2: Interface: PCIe 3.0 x4 and SATA
M.2: Form Factor: 2280, 22110
System BIOS BIOS Type AMI UEFI
BIOS Features ACPI 6.0, RTC (Real Time Clock) Wakeup, SMBIOS 3.0 or late
Management Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
Environmental Standards Non-operating Temperature -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity 8% - 90% (non-condensing)
Non-operating Relative Humidity 5% - 95% (non-condensing)
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
FAN 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature CPU thermal trip support, PECI
LED CPU / System Overheat LED
UID/Remote UID
Suspend static indicator LED
Other Features ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL
Parts List Motherboard MBD-X11SPL-F
Included Accessories Motherboard Quick Reference Guide
I/O Cables 6x CBL-0044L
I/O Shield 1x MCP-260-00042-0N
