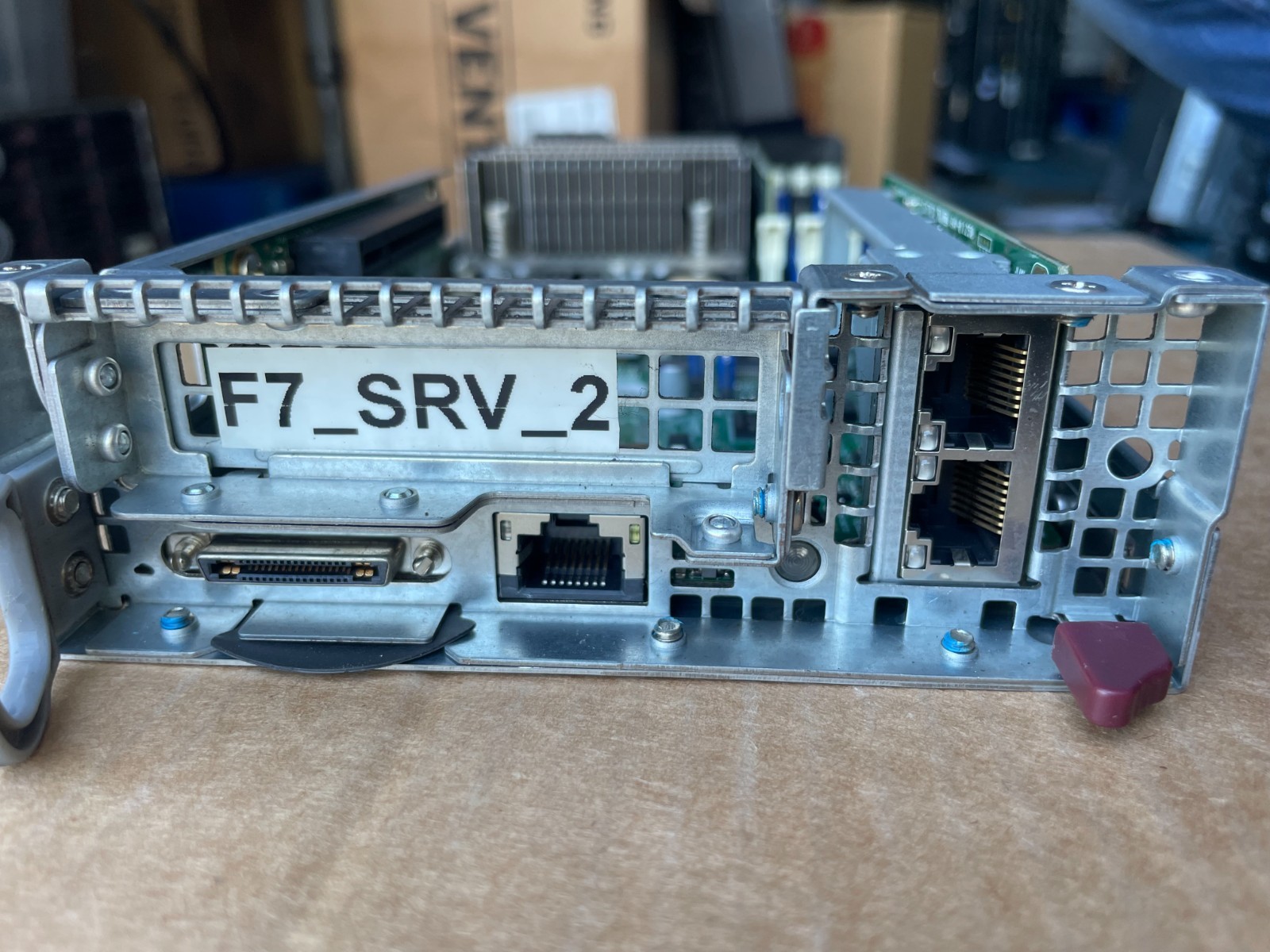

Supermicro X9SCD-F MicroCloud Server Node — Tested Pull
Pulled from a working Supermicro SYS-5037MC-H8TRF / CSE-938 MicroCloudchassis. Board is fully functional.
INCLUDES:- Supermicro X9SCD-F node motherboard in CSE-938 node tray- Intel Xeon E3-1230 v2 (4-core/8-thread, 3.3GHz, 69W TDP)- Node heatsink- Riser card: RSC-RR1U-E8 (PCIe x8)- Micro-LP NIC (dual GbE)- IPMI port onboard (Nuvoton WPCM450 BMC)
DOES NOT INCLUDE:- RAM (4x DDR3 ECC UDIMM slots, supports up to 32GB 1333/1600MHz)- Hard drive- SATA DOM
COMPATIBLE CHASSIS:- Supermicro CSE-938 / CSE-938H-R1620B / CSE-938H-R920B- SYS-5037MC-H8TRF- SYS-5037MR-H8TRF
SPECIFICATIONS:- Socket: LGA-1155 (H2)- Chipset: Intel C204- Memory: 4x DDR3 ECC UDIMM slots (up to 32GB)- Storage: 2x SATA 6Gbps + 1x SATA DOM connector- PCIe: 1x PCIe 3.0 x8 slot (via riser), 1x Micro-LP slot- IPMI: v2.0 with KVM over LAN, virtual media- BMC: Nuvoton WPCM450
Ideal for replacing a failed node in an existing MicroCloud system.Ships carefully packed. Sold as-is, pull from working environment.
