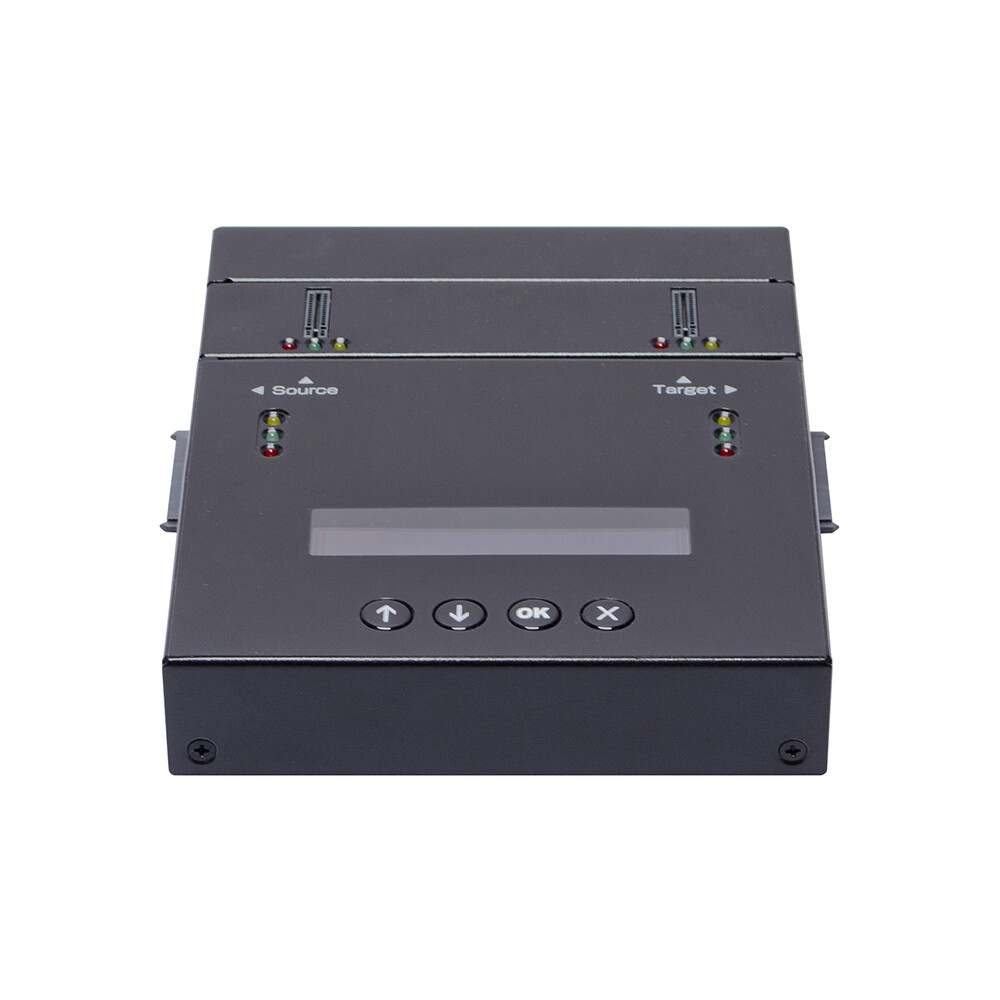

Systor M.2 NVMe PCIe/SATA SSD/HDD duplicators are completely standalone units that can clone or sanitize a number of different media types. Easily insert and copy (or erase) M.2 or SATA solid state SSD drives or HDD hard disk drives with a single touch of a button. These duplicators consistently perform copy sessions with no speed degradation. Various copying and erasing modes help in managing different task requirements for duplicating and wiping your storage media. These high-speed, high-performance M2 copiers are the perfect solution for business (small to enterprise), education, and government entities (military, law enforcement, etc.) where copying and erasing device data needs to be accomplished with precision and minimal time.

* Duplication speed will vary depending on read/write transfer rates of master (source) and target (blank) drives.

FLEXIBLE CROSS INTERFACE DUPLICATION

Automatically detect NVMe and/or SATA signals to easily copy devices from one interface to another, such as:

• M.2 (SATA) to M.2 (NVMe)
• M.2 (NVMe) to HDD/SSD (SATA)
• HDD/SSD (SATA) to M.2 (NVMe)
• HDD/SSD (SATA) to HDD/SSD (SATA)

SUPPORTED DEVICES

• NVMe M.2
• SATA M.2
• SATA 3.5" HDD
• SATA 2.5" HDD
• SATA 2.5" SSD

NVME SIZE COMPATIBILITY

Compatible with all sizes of:

• NVME M.2 SSD (Types 2230, 2242, 2260, 2280, 22110)
• PCIe SSD (full and low profiles)

INTELLIGENT DUPLICATION (COPY MODES) System and Files (Quick Copy Mode)

Copies only the data area and skips empty space, reducing the copy duration time.

All Partitions

Can be set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.

Whole Device

Copies from the initial sector to the end, bit-by-bit. There are no format limitations in this mode. Supports all systems and proprietary formats, along with various brands.

Percentage Copy

Set a selected percentage of source/master capacity to copy.

SANITIZATION METHODS (ERASE MODES) Quick Erase

Erases the device's index table, and only takes a few seconds to complete.

Full Erase

Erases the entire device.

DoD Erase

Complies with the erasure standards of the U.S. Department of Defense (DoD) 5220.22-M.

DoD EraseComp

Erases entire device(s) and verifies complete erasure, in compliance with the DoD 5220.22-M standard.

7-pass Erase

Erases entire device(s) 7 times, in compliance with the DoD 5220.22-M standard.

Secure Erase

Complies with standards of the National Institute of Standards and Technology (NIST) 800-88.

Enhanced Secure Erase

Implements device-specific procedures to overwrite data, including in reallocated sectors, and may also destroy the drive's internal encryption key to ensure all user data is permanently unrecoverable.

COMPARE FUNCTION + CRC CHECKSUM

Performs bit-by-bit cyclic redundancy check (CRC) to ensure copies are identical for every duplication session.

OVERVIEWEASY OPERATIONSMART LED INDICATORSPRODUCT FEATURES

Features
Descriptions
Operation Type

• Stand-alone, FPGA-based design (no PC required)

Controller Design

• Embedded controller is designed to support capacities over 18TB+.
• Constant improvement supports latest market-available devices.

Devices Supported

• Automatically detect NVMe and/or SATA signals to easily copy devices from one interface to another, such as:
• M.2 (SATA) to M.2 (NVMe)
• M.2 (NVMe) to HDD/SSD (SATA)
• HDD/SSD (SATA) to M.2 (NVMe)
• HDD/SSD (SATA) to HDD/SSD (SATA)


Hot Swap Supported

• Supports hot swapping of devices.

Bandwidth Performance

• Peak transfer speeds up to 24GB/min. (400MB/sec.)
• Actual performance is dependent on media transfer speeds.
• Dedicated bandwidth enables high-volume replications without speed degradation.

Read-Only Or Eraseable Source Port

• Built-in feature. Enables/disables source media to be erased/sanitized during erase process.

Modular Port Design

• Replace ports easily to reduce downtime and for cost-effective long-term usage.

PRODUCT FUNCTIONS

Features
Descriptions
Copy Modes

• System and Files (Quick Copy Mode):
  Copies data and skips empty space. Only supports Windows, Mac, and Linux.
• All Partitions:
  Set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.
• Whole Device:
  Copies from the initial sector to the end, bit-by-bit. No format limitations. Supports all systems and proprietary formats, along with various brands.
• Percentage Copy:
  Set a selected percentage of source/master capacity to copy.

Compare (Verification)

• Performs bit-by-bit comparison with CRC (cyclic redundancy check) to detect errors and ensure accuracy of copied data from source device to target device(s).

Sanitization Modes

• Quick Erase:
  Erases device index table.
• Full Erase:
  Erases entire device(s), in compliance with the NIST 800-88 standard.
• DoD Erase:
  Erases entire device(s), in compliance with the DoD 5220.22-M standard.
• DoD EraseComp:
  Erases entire device(s) and verifies complete erasure, in compliance with the DoD 5220.22-M standard.

• 7-Pass Erase:
  Erases entire device(s) 7 times, in compliance with the DoD 5220.22-M standard.
• Secure Erase:
  Erases non-loadable areas, in compliance with the NIST 800-88 standard.
• Enhanced Secure Erase:
  Erases devices that support this feature.


Skip Bad Sectors

• Set number of bad sectors to skip during COMPATIBILITIES

  Compatibilities
  Descriptions
  Compatible Devices

  • NGFF (M.2): 2230, 2242, 2260, 2280, 3030, 3042, 3060, and 3080.
  • Supports B+M Key or M Key only
  • SATA HDD/SSD

  Supported Formats

  • Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX).
  • Whole Device Copy Function: All Formats, including proprietary formats.
  • GPT, MBR, and Advanced Formats.
  Supported O/S

  • All (Windows, Mac, Linux, and other proprietary systems).

  PRODUCT SPECIFICATIONS

  Specifications
  Descriptions
  LCD Display

  • 2 x 20 Backlit Monochrome LCD Display
  LEDs

  • 3 LED Indicators per Port:
  • Yellow (Power), Green (Pass), and Red (Fail)
  Control Panel

  • 4 Push Buttons (▲, ▼, OK, ESC)
  Power Requirements

  • 12V 5A Power Adapter
  Operational Temperature

  • 5°C ~ 45°C (41°F ~ 113°F)
  Non-operational Temperature

  • -20°C ~ 85°C (-4°F ~ 20% ~ 80%, non-condensing
  • Non-operating: 5% ~ 95%, non-condensing
  Packaging Dimensions (L×W×H)

  • 11 in. x 9 in. x 3 in.
  Product Weight

  • 3.31 CE, RoHS, and REACH



  * Specifications are subject to change without notice.
