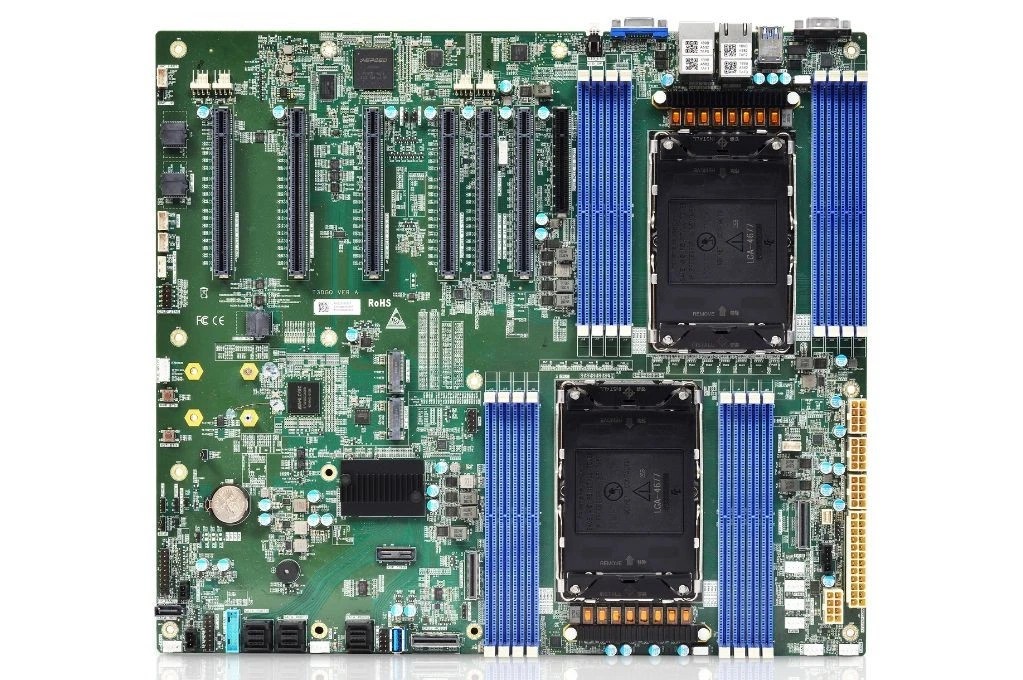

T3DGQ Server Motherboard Intel C741 LGA4677 Support 6-WAYS GPU
This document reflects the verified mapping of PCIe slots to CPU IIO groups for the T3DGQ dual Xeon platform. Confirmed configuration: Slots 1, 2, and 5 are controlled by CPU 1, while Slots 3, 4, 6, and 7 are controlled by CPU 2. Slots 1–6 are ×16 electrical; Slot 7 is ×8 and shares lanes with M.2_2.
function
Technical Specifications:
Plate type
■ Non-standard plate type, 15.12" x 13.2" (384.3mm*335.3mm)
processor
■ Support 2 x 4th or 5th Gen Intel ® Xeon ® Scalable processors, up to 385W
PCH
￭ Intel C741
memory
■ Support 16 DDR5 memory slots, 1DPC, up to 5600MHz
■ Support RDIMM, 3DS RDIMM, up to 4TB memory
PCIe extensions
■ 7 standard PCIe expansion slots
■ 4 PCIe 5.0 x16 double-wide slots
■ 2 PCIe 5.0 x16 single-wide slots
■ 1 x PCIe 5.0 x8 single wide slot
Internet
■ Support 1 x 1Gbps RJ45 dedicated management port
■ Support 2 x 1Gb RJ45 data network ports, LAN1 supports NCSI
Storage interfaces
■ 12 x SATA 3.0 (3 x SFF-8643), support RAID 0, 1, 5, 10
■ 3 MCIOs (PCIe 5.0x8), 6 NVMe (PCIe 5.0 x4)
■ 2 x M.2 ports, PCIe 4.0 x4, 2280&22110
Rear I/O ports
■ One COM
■ 4 x USB 3.0
■ 1 x 1Gb RJ45 management network port
■ Two 1Gb RJ45 data network ports
■ 1 VGA
■ 1 UID (button and indicator)
On-board I/O
■ 12 4pin FAN headers
■ 1 x VGA header for FP
■ 1 x SPI TPM header
■ 2 x USB 3.0 (2 via header)
■ 3 x USB 2.0 (2 via header, 1 type A)
■ 1 x VROC Key header
manage
■ Integrated BMC management chip AST2600, support IPMI2.0, Redfish, KVM, virtual media and other functions
■ Provide one 1Gbps RJ45 dedicated management port
security
■ Optional TPM module
temperature
■ Operating temperature: 5ºC - 35ºC
■ Storage temperature: -40ºC - 65ºC
humidity
■ Operating relative humidity: 8% to 90% (non-condensing)
■ Storage relative humidity: 5% to 95% (non-condensing)
Operating system support
■ Support Microsoft Windows Server, Microsoft Hyper-V Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Oracle Linux, VMware ESXi, Citrix XenServer and other mainstream operating systems
Please contact the sales staff for specific versions
