Notice: These units are permanently set (switch is glued) to output 5 Volts DC.

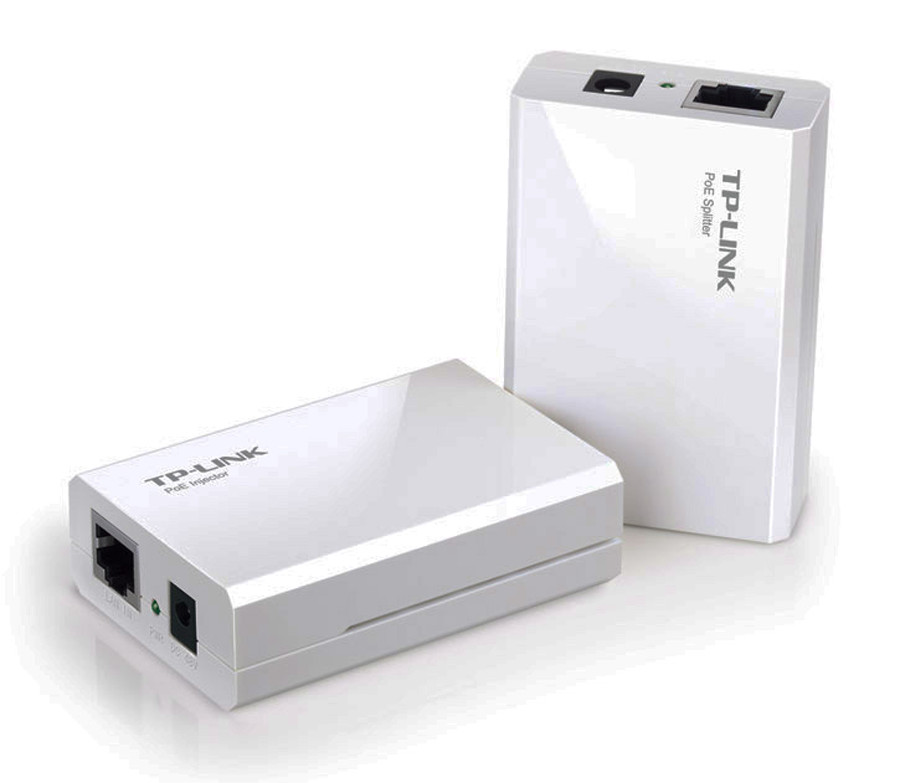

The TL-POE200 is designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away. The PoE kit uses two devices, one, the injector, injects power and data into a single Ethernet cable while the other, the splitter‚placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place Ethernet enabled devices such as access points, IP cameras, or VoIP phones anywhere that they are best suited, regardless of whether a power socket is available, to achieve the best performance for the connected devices.

General Information

• Manufacturer: TP-LINK Technologies Co., Ltd
• Manufacturer Part Number: TL-PoE200
• Brand Name: TP-LINK
• Product Model: TL-POE200
• Product Name: TL-POE200 Power over Ethernet Adapter Kit
• Product Type: PoE Injector

Power Description

• Input Voltage:
  • 240 V AC
  • 48 V DC
• Maximum Output Voltage: 5 VDC

Interfaces/Ports

• Input Ports: 1 10/100Base-TX
• Output Ports: 1 10/100Base-TX

Miscellaneous

• Package Contents:
  • TL-POE200 Power over Ethernet Adapter Kit
  • 1 x Power Cord
  • 1 x RJ-45 Ethernet Cable
  • User Guide
  • Injector
  • Splitter
• Compatibility:
  • TP-Link TL-WA500G 54Mbps eXtended Range Wireless Access Point
  • TP-Link TL-WA5110G 54Mbps High Power Wireless Access Point
  • IP Cameras
  • VoIP Phones
  • TL-SC3130 2-Way Audio Surveillance Camera
• Certifications & Standards:
  • CSMA/CD
  • TCP/IP

  Complaints:

  • IEEE 802.3
  • IEEE 802.3u
