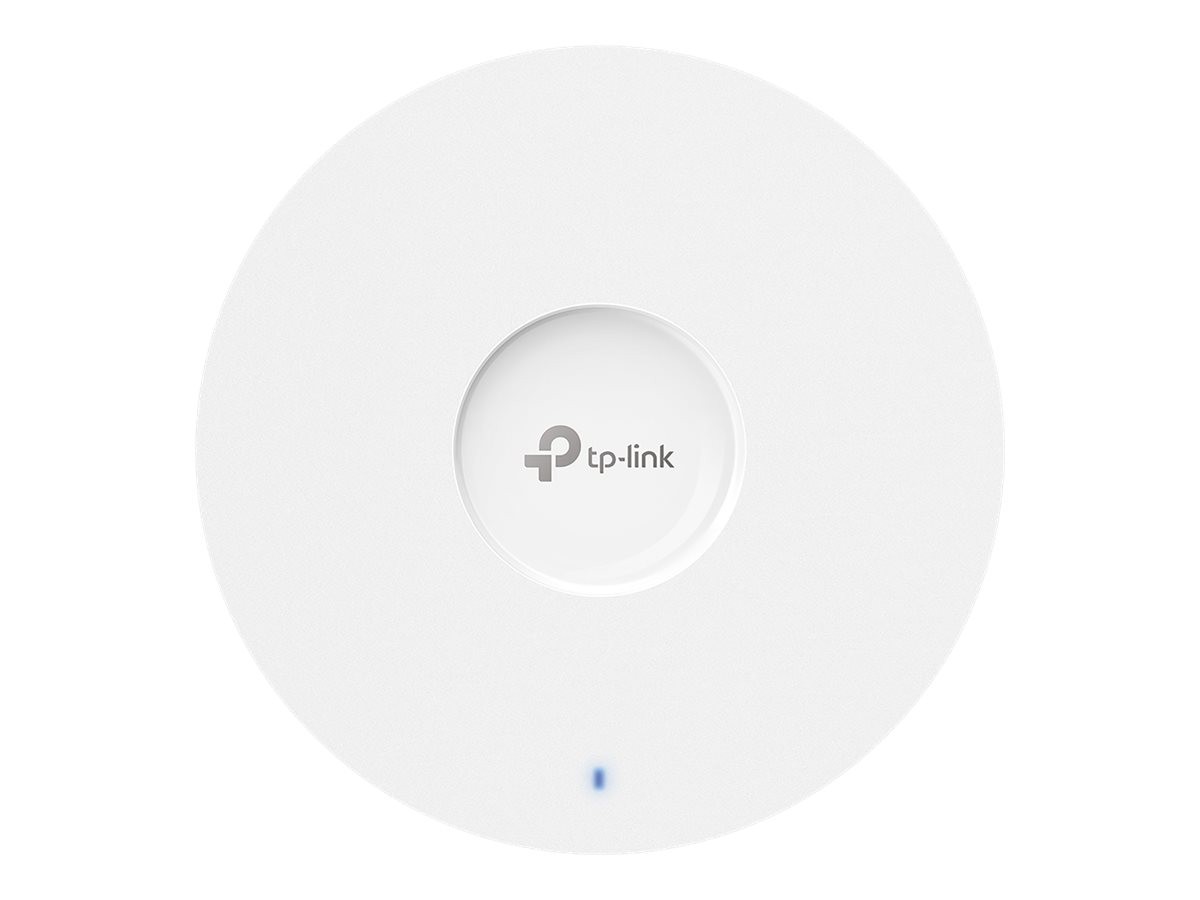

TP-Link Omada EAP683 UR Dual Band IEEE 802.11 a/b/g/n/ac/ax 5.81 Gbit/s Wireless Access Point (eap683ur) TP-Link Omada EAP683 UR Dual Band IEEE 802.11 a/b/g/n/ac/ax 5.81 Gbit/s Wireless Access Point (eap683ur)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: EAP683 UR Wireless Access Point Ceiling/Wal/Junctionl Mounting Kits Installation Guide Cable Compartment Cover
Certifications & Standards: CE FCC
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Product Description
This item is brand-new, factory sealed.
EAP683 UR
AX6000 Ceiling Mount WiFi 6 Access Point
Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
Ultra-range wireless coverage by 44 MIMO dual-band internal antennas with high transmission power.
Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
Integrates with the Omada SDN platform for centralized management.
Advanced Features: Omada Mesh, Seamless Roaming, and more.
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
Ultra-Range Wireless Coverage
4 x 4 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.HARDWARE FEATURES
Interface
1x 2.5 Gigabit PoE+ Port
Button
Reset
Power Supply
802.3at PoE
12 V / 2 A DC
NotePower adapter is not included.
Power Consumption
EU: 20.43W
US: 23.69W
Antenna Type
Internal Omni
2.4 GHz: 4x 4 dBi
5 GHz: 4x 5 dBi
Bluetooth
Yes
Mounting
Ceiling /Wall Mounting (Kits included)WIRELESS FEATURES
Coverage
185m2(2000ft2)
Concurrent Clients
510+
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 1148 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
