Overview:

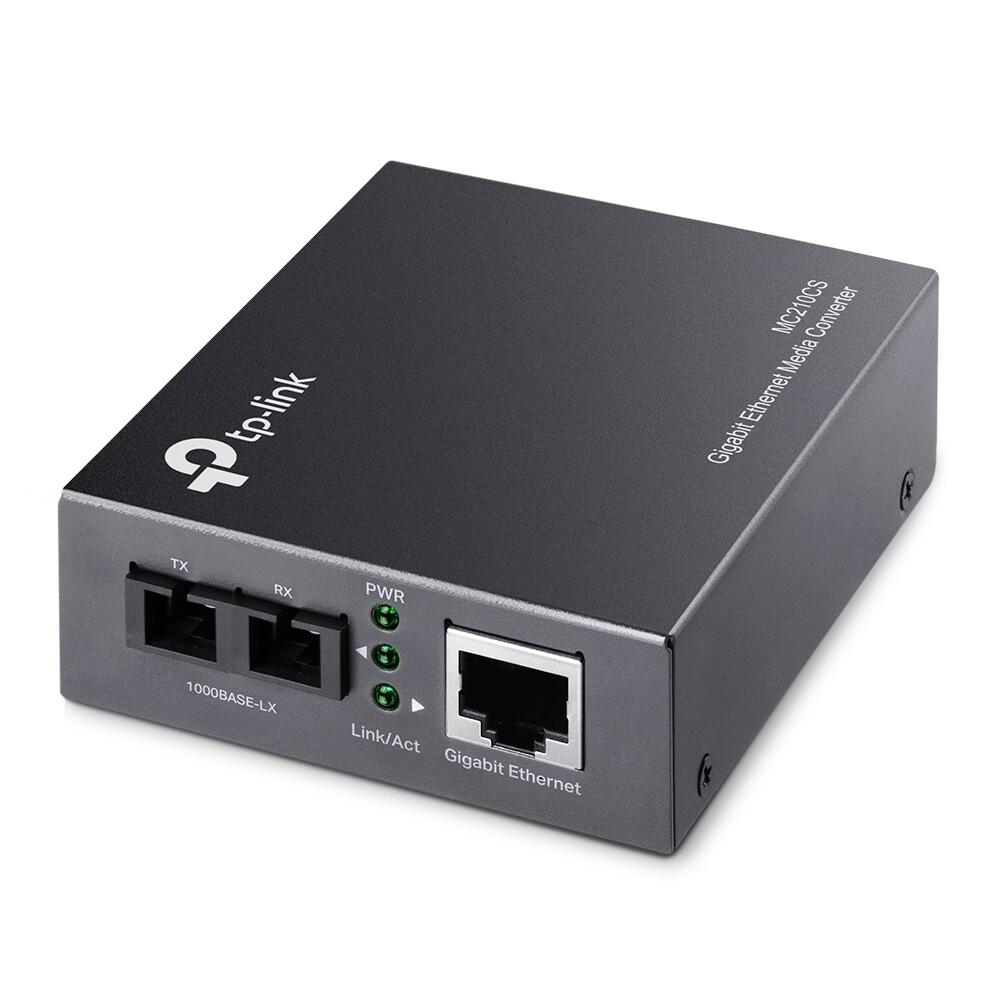

The MC210CS is a media converter designed to convert1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed underIEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS isdesigned for use with single-mode fiber cable utilizing the SC-Type connector.The MC210CS supports longwave (LX) laser specification at a full wire speedforwarding rate. It works at 1310nm on both transmitting and receiving data. Other features of this module include the ability to be used as a standalonedevice (no chassis required) or with TP-LINK´s 19” system chassis, AutoMDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmitat extended fiber optic distances utilizing single-mode fiber up to 15kilometers (9.3 miles).
Features:
·Works at 1000Mbps in Full-Duplex modefor both TX port and FX port
·Supports auto MDI/MDIX for TX port
·Provides switch configuration of Force/Auto transfer mode for FX port.
·Extends fiber distance up to 15km (9.3miles)
·Easy-to-view LED indicators providestatus to monitor network activity easily
·External power supply
Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 15km
Ports
1 1000M SC/UPC port
1 1000M RJ45 port (Auto MDI/MDIX)
Wave Length
1310nm
Network Media 1000BASE-FX
Single-mode Fiber
Network Media 1000BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators
PWR, LINK, RX
Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply
External Power Adapter
Max Power Consumption
5.5W
Safety & Emission
FCC, CE, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
