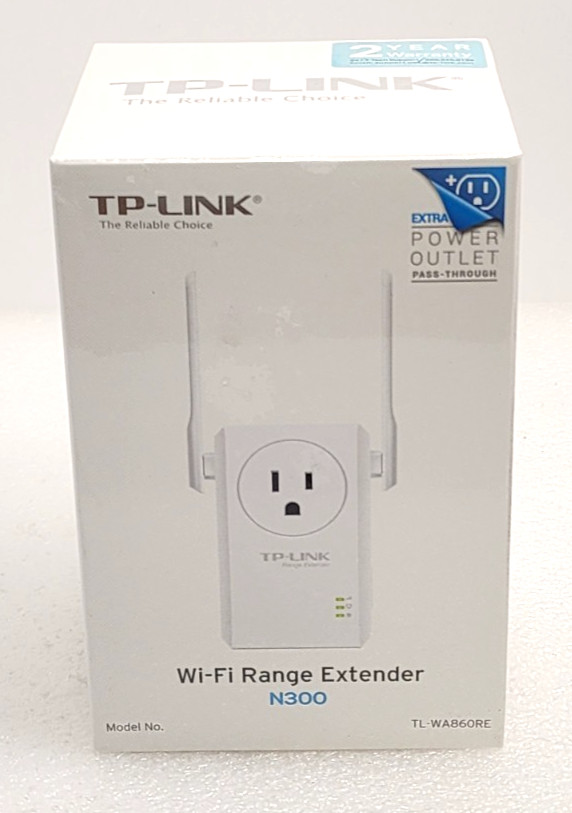

TP-Link N300 300Mbps Wi-Fi Range Extender - TL-WA860RE, NEW/SEALED
WIRELESS
Working ModesRange Extender/Access Point
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.11n, IEEE 802.11g, IEEE 802.11bPlug TypeEU, UK, USInterface1 x 10/100Mbps Ethernet Port (RJ45)ButtonRE (Range Extender) Button, Reset ButtonInput Power100-240V~50/60HzMax. Power ConsumptionAbout 3WDimensions ( W x D x H )4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)Antenna2 * external
WIRELESS FEATURES
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11bFrequency2.4~2.4835GHzSignal Rate11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)Working ModesRange Extender/Access PointReception Sensitivity270M: -69dBm@10% PER
130M: -69dBm@10% PER
108M: -69dBm@10% PER
54M: -69dBm@10% PER
11M: -86Bm@8% PER
6M: -89dBm@10% PER
1M: -91dBm@8% PERWireless ModesRange ExtenderWireless FunctionsWMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login FunctionWireless Security64/128/152-bit WEP
WPA-PSK / WPA2-PSKTransmission PowerCE: <15dBm
OTHER
Network Services Enabled by DefaultWeb Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 20002 Protocol: UDP
RJ-45 Ethernet Cable
Quick Installation GuideSystem RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
