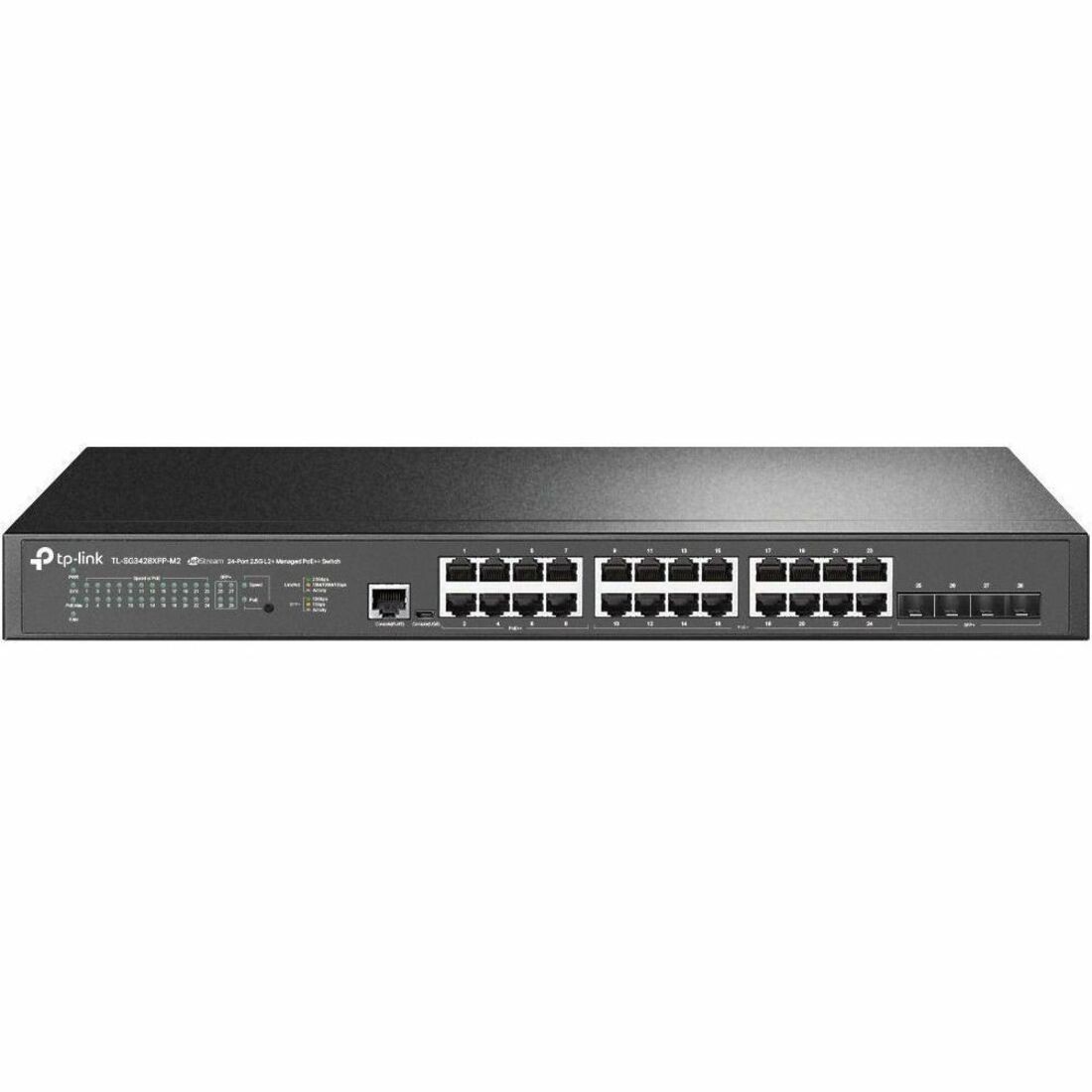

TP-Link JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ (276844) TP-Link JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ (276844)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Application/Usage:
Product Description
This item is brand-new, factory sealed.
2.5G PoE++/PoE+ Ports for WiFi 7/6E/6
24 2.5 Gbps Ports Unlock the Full Potential of WiFi 7/6E/6 APs
10G -Fast Uplink Connection
4 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
PoE++/PoE+ Output
8 PoE++ and 16 PoE+ Ports with a Total 500 W Power Budget*
Centralised Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE++/PoE+ Ports
Featuring 8x PoE++ and 16x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 500 W total PoE power budget* and flexible installation to fit in various application scenarios.
Enterprise Switch with 10G Uplink
4 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and -fast connections to the server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralised cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided and developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
SpecificationManagement & ProtocolsManageableYesPower DescriptionPower Source
PoE Budget500 WFrequency
Input Voltage
PoE (RJ-45) PortYesPower Consumption629.10 WPhysical CharacteristicsForm (RJ-45)YesPort/Expansion Slot Details
- 16 x 2.5 Gigabit Ethernet PoE+
- 8 x 2.5 Gigabit Ethernet PoE++
- 4 x 10 Gigabit Ethernet Expansion Slot
Total Number of Network Ports24I/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFP+Number of SFP+ Slots4General InformationBrand NameTP-LinkMarketing Information 2.5G PoE++/PoE+ Ports for WiFi 7/6E/6 24? 2.5 Gbps Ports Unlock the Full Potential of WiFi 7/6E/6 APs 10G Lightning-Fast Uplink Connection 4? 10 Gbps SFP+ Slots for High-Bandwidth Connectivity PoE++/PoE+ Output 8 PoE++ and 16 PoE+ Ports with a Total 500 W Power Budget* Centralised Cloud Management SDN Solutions Integration for a Highly Efficient Network Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE++/PoE+ Ports Featuring 8x PoE++ and 16x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 500 W total PoE power budget* and flexible installation to fit in various application scenarios. Enterprise Switch with 10G Uplink 4? 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to the server and other switches are easily built. Software Defined Networking (SDN) with Cloud Access Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralised cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Enterprise Level Features A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency. Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. ISP Features QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided and developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. Product TypeEthernet SwitchProduct NameJetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SG3428XPP-M2Product LineJetStreamMedia & PerformanceEthernet Technology
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
Media Type Supported
- Twisted Pair
- Optical Fiber
Network Technology
- IEEE 802.3bt
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1ab
