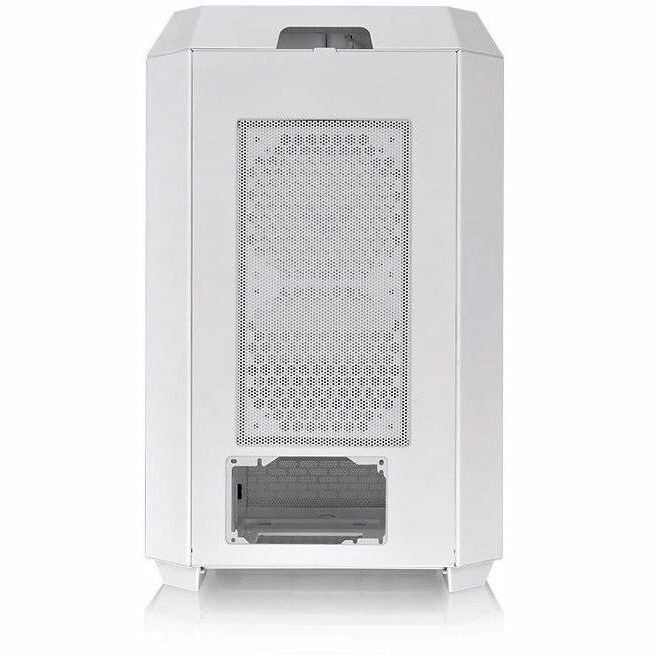

Thermaltake The Tower 300 Micro Tower Chassis Thermaltake The Tower 300 Micro Tower Chassis
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
The Legacy Continues
As the newest edition of the Tower Series, the Tower 300 inherited the classic vertical design but was updated with a new octagonal prism shape to meet todays aesthetics. It may be small but it sure can pack a punch with support for up to 400mm GPUs, 420mm AIOs, and up to a 220mm PSU. If cooling is a concern then the Tower 300 has you covered with being able to accommodate up to eight 120mm or 140mm fans. Also did someone say upgrades, well the Tower 300 has optional 3.9 LCD screen kits as well as Horizontal Chassis stands sold separately so your build comes out exactly how you want it to.
Classic Vertical Body Design
The Tower series has been iconic for its vertical body designs and the Tower 300 follows in those footsteps. However, with its new octagonal prism design we were able to not only increase the viewing areas for the components inside but also allow for better airflow and bigger cooling options too. This gives the Tower 300 the classic looks of its predecessors but with even better performance and updated styling.
A Unique View
Our optional Horizontal Chassis Stand Kit comes not only with the stand itself but also included is a replacement bottom cover to delete the feet and provide a clean look.
How to install:
1. Unscrew the original feet located on the base of the chassis
2. Install the new bottom cover of the chassis and carefully place The Tower 300 on the stand
*Note: It is recommended to position the radiator higher than the AIO pump.
Maximum Radiator Support
Supporting up to a 420mm AIO radiator on the right side of the case the Tower 300 is ready for some of the most demanding hardware. And to assist that AIO with optimal chassis temperature is the ability to mount up to eight 120mm or 140mm fans.P/N
CA-1Y4-00S6WN-00
SERIES
The Tower
CASE TYPE
Micro Tower
SIDE PANEL
3mm Tempered Glass x 3
COLOR
White
MATERIAL
SPCC
COOLING SYSTEM
Top(exhaust):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2
EXPANSION SLOTS
4
MOTHERBOARD
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
I/O PORT
USB 3.2 (Gen 2) Type-C x 1
PSU
Standard PS2 PSU (optional)FAN SUPPORT
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right Side:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Rear:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Power Cover:
1 x 120mm
1 x 140mmRADIATOR SUPPORT
Right Side (AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
CLEARANCE
CPU cooler height limitation:
210mm
VGA length limitation:
280mm (With power cover)
400mm (Without power cover)
PSU length limitation:
220mmItem Dimension (L inchxW inchxH inch)
17 x 15 x 26
Weight
48 lbs
Warranty Information
3 Years SpecificationPhysical CharacteristicsProduct Material
Form FactorMicro TowerWeight (Approximate)18.30 lbCooler TypeFan CoolerProduct ColorSnowHeight21.7"Color FamilyWhiteMaximum PSU CPU Cooler Height8.27"I/O ExpansionsTotal Number of Expansion Slots4Interfaces/PortsTotal Number of Audio Out Ports1USB Port Details
- 1 x USB 3.2 (Gen 2) Type C
- 2 x USB 3.0
Front Audio InYesFront Audio OutYesFront USBYesTotal Number of USB Ports3Total Number of Audio In Ports1BaysNumber of Total Expansion Bays3Number of Internal 3.5" Bays3General InformationBrand NameThermaltakeMarketing Information The Tower 300 Snow is an m-ATX case with a classic vertical case design and comes in an octagonal prism shape. It supports up to a 420mm AIO radiator on the right side and can accommodate up to eight 120mm/140mm fans. With a separately sold Chassis Stand Kit, users can enjoy a unique view with a special horizontal placement. More from the Manufacturer Product TypeComputer CaseProduct NameThe Tower 300 Micro Tower ChassisManufacturerThermaltake Technology Co., LtdManufacturer Part NumberCA-1Y4-00S6WN-00Product LineThe TowerTitleProduct TitleThermaltake The Tower 300 Micro Tower Chassis (CA1Y400S6WN00)Technical InformationMotherboard Supported
Number of Fans Supported8Fan Size Supported5.51" Shipping
