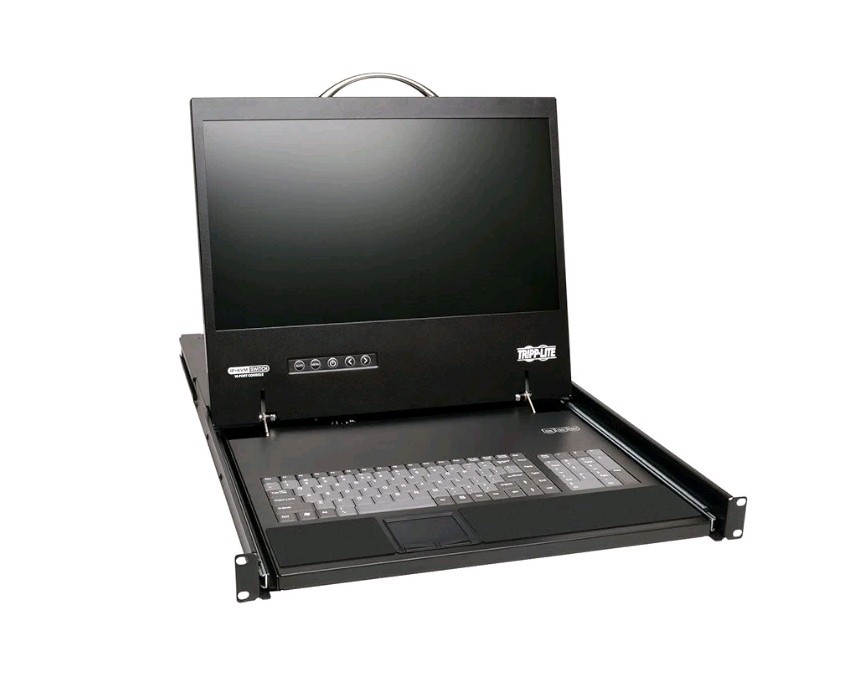

Tripp Lite B070-008-19-IP 8-Port IP KVM Rack Console 1U
Tripp Lite's B070-008-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD, and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street, or halfway around the globe on a LAN, WAN, or Internet.
Saves Space and Money
Combines 8-port KVM switch, 19"" LCD screen, keyboard, and touchpad in a single 1U rack-mountable drawer
Mounts into 19""-wide rack, 27""-42"" deep; to mount in a 2-post rack, use Tripp Lite's B019-000
Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
Use Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
IP Remote Access for Fewer Trips to the Server Room
Remote access means there's no need to travel to the server room or network closet
Java-based application allows access via a web browser; non-browser client that can bypass browser-related Java Security prompts is available
1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session
Supports both IPv4 and IPv6
Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
Overview
Users: 2
Console: Yes
Input
Nominal Input Voltage(s) Supported: 100V AC, 110V AC, 115V AC, 120V AC, 127V AC, 140V AC, 200V AC, 208V AC, 220V AC, 230V AC, 240V AC
Electrical Consumption: (Line Mode) 30W / (Standby Mode) 5W
Nominal Input Voltage Description: Internal Switching 100-240 VAC 50/60Hz
Input Frequency: 50/60Hz
Input Current: 120V (1.2A) / 230V (0.7A)
Color
Black
Environmental
Storage Temperature Range: -20 to 60 C (-4 to 140 F)
Relative Humidity: 0 to 80% RH, Non-Condensing
Operating Temperature: 0 to 40 C (32 to 104 F)
BTUs: (Line Mode) 102 BTU/Hr / (Standby Mode) 17.06 BTU/Hr
Communications
Port Control: Hotkeys, OSD, Remote Toolbar
IP Remote Access: Yes
Connections
Ports: 8
PC/Server Connections: VGA, USB, PS/2
Special Features
Cat5 KVM Switch: Yes
Features and Specifications
Autoscan: No
Certifications
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
System Requirements
Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
User-supplied Cat 5e/6/6a cabling
B078-101-USB-1 (USB) Server Interface Unit is required for each connected computer/server
Compatible with Windows and Linux
