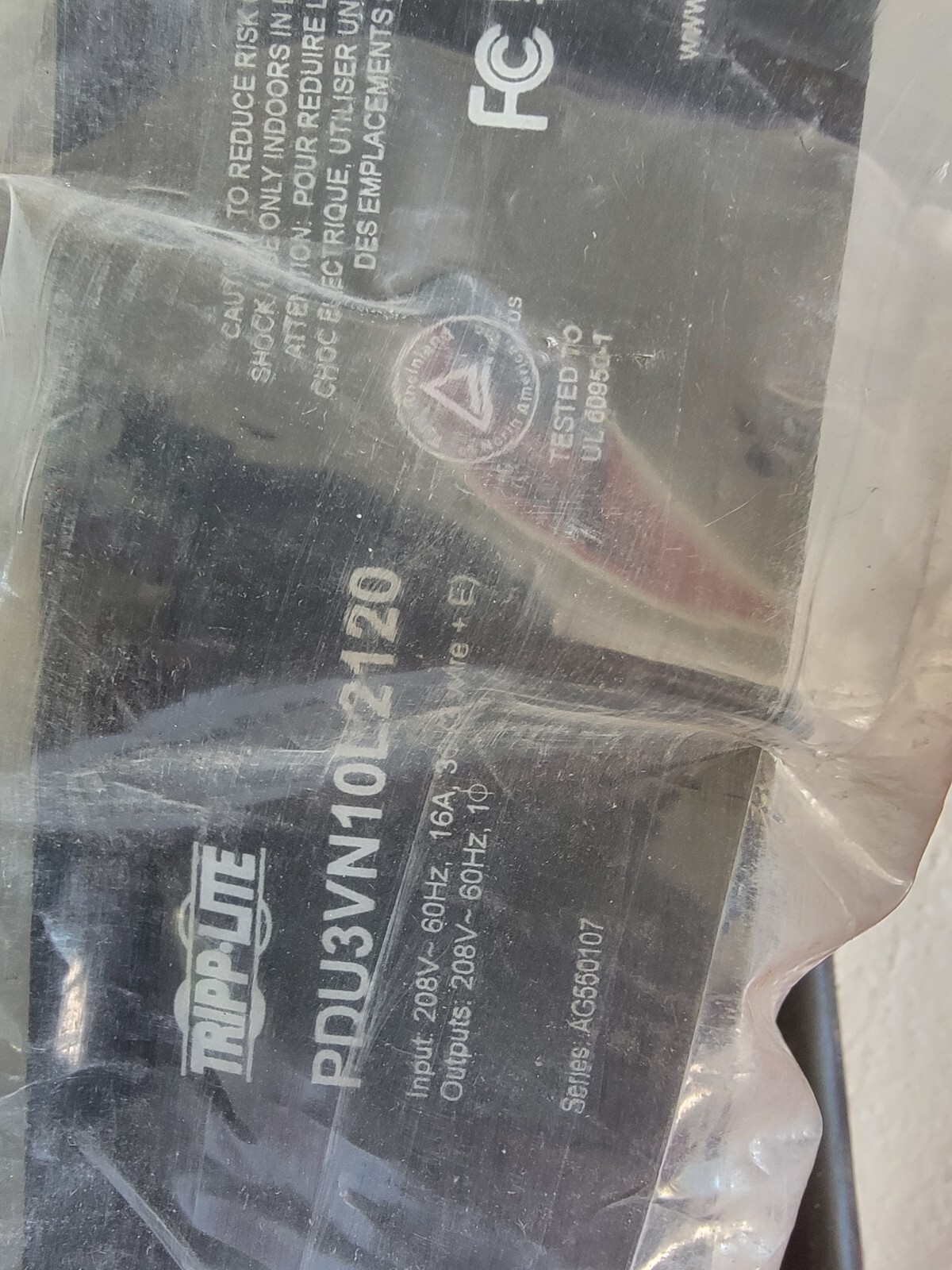

Tripp Lite PDU3VN10L2120 PDU 3-Phase Monitored 208V 5.7kW L21-20P 30 C13, 6 C19 0URM
imensionsCord Dimensions (hwd / in.)70.000 x 2.190 x 3.260Input Cord Length (ft.)10DetailsItem3-Phase Monitored PDUNumber of Outlets36Voltage208VMax. Amps16AMounting StyleVertical Rackmount/0UPower IndicatorYesHousing MaterialMetalNEMA Receptacle Configuration(30) C13; (6) C19NEMA Plug ConfigurationNEMA L21-20PFrequency50/60 HzProduct NameMonitored PDU3VN10L2120 36-Outlets 5.7kW PDUReceptacle Detail30 x IEC 60320 C13, 6 x IEC 60320 C19PDU TypeMonitoredInput Voltage230 V ACMounting OrientationVerticalPlug/Connector TypeNEMA L21-20POutput Voltage208 V ACProduct TypePDUPower Rating (Watt)5700 WMount TypeRack-mountableProduct SeriesMonitoredPackage ContentsMonitored PDU3VN10L2120 36-Outlets 5.7kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's ManualFront Panel LEDsSet of 3 LEDs (L1, L2, L3) indicate the output load segment the digital current display is reportingOutput Nominal Voltage208Maximum Input Amps16Package IncludesMonitored rackmount PDU with pre-installed mounting buttons;Cord retention brackets;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manualRecommended Electrical Service20A 208V with NEMA L21-20R outletPower Measurement Accuracy (Watts)+/-1%Voltage Measurement Accuracy (Volts)+/-1%Form Factors SupportedVertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racksInput Phase3-PhaseCommunications CableRJ45-to-DB9 configuration/console Access cableOutput Receptacles(30) C13; (6) C19Front Panel LCD DisplayDigital display reports output load level in amps separately for each output phase; Can also be used to scroll the configured IP addressNetwork Compatibility10 Mbps; 100 Mbps (Fast Ethernet)Output Capacity Details5.7kW (208V) total capacity / 9.2A max per output phase (L1-L2, L2-L3, L3-L1)Operating Temperature Range37 to 122F (0C to 50C)Relative Humidity5-95% non condensingPDU Form FactorVertical (0U)Storage Temperature Range-30°C to +60°C (-22°F to +140°F)Current Measurement Accuracy (Amps)+/-1%PDU Plug TypeNEMA L21-20PSwitchesSELECT switch advances the digital display and LED to report power consumption for load segments L1, L2 and L3 (short press); SELECT switch also rotates the local display 90 degrees for overhead power input (long press); SCROLL IP button scrolls the configured IP address (long press)Operating Elevation (ft.)0-10,000Frequency Compatibility50 / 60 HzMaterial of ConstructionMetalReported Load SegmentsSupports local monitoring of current for each output phase (9.2A max per L1-L2, L2-L3, L3-L1 balanced); BANK "L1" is powered by L1-L2 (outlets 1-12); BANK "L2" is powered by L2-L3 (outlets 13-24); BANK "L3" is powered by L3-L1 (outlets 25-36)
