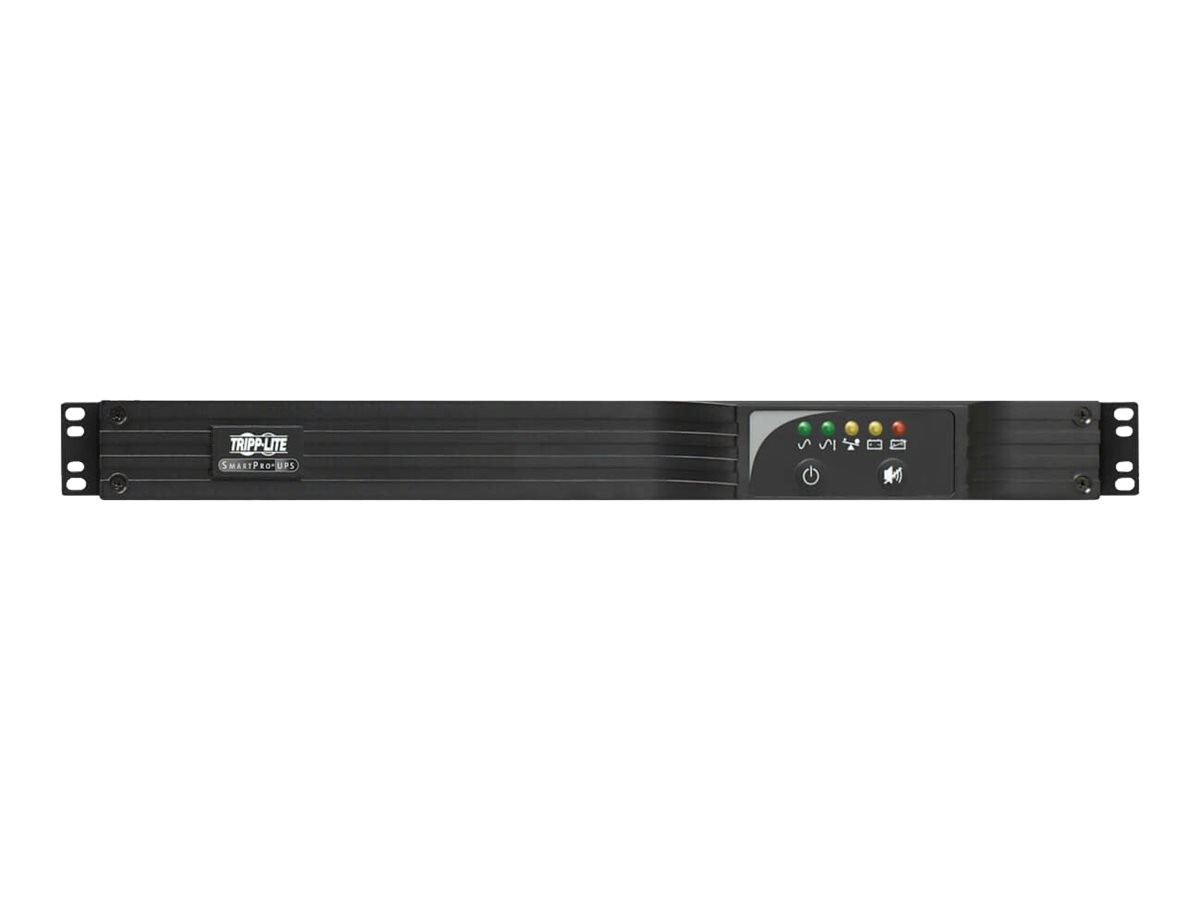

Tripp Lite UPS Smart 500VA 300W Rackmount USB DB9 WEBCARDLX 6 Outlets 1URM (smart500rt1un) Tripp Lite UPS Smart 500VA 300W Rackmount USB DB9 WEBCARDLX 6 Outlets 1URM (smart500rt1un)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: SmartPro SMART500RT1UN 500VA Rack/Tower UPS WEBCARDLX Network Management Card Micro USB to USB-A USB Cable DB9 Cable EPO Cable Rack-Mounting Hardware Owner's Manual
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
500VA/300W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro® line-interactive SMART500RT1UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The seven-outlet 120V battery backup is ideal protection for rack-mount equipment in your server room or network closet.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (150W) powered as long as 14 minutes and a full load (300W) up to three minutes.
Included WEBCARDLX Network Interface Offers 24/7 Access
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
6 NEMA Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, 567 joules of surge protection and voltage regulation for your crucial components. Five are UPS-supported, and one is surge-only to connect peripherals not requiring battery backup. One UPS-supported outlet is switchable, allowing you to power its connected device on and off remotely to reset or reboot it or to shed a less significant load to extend battery runtime for more critical equipment.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART500RT1UN maintains regulated 120V nominal output during brownouts as low as 90V, while keeping the battery fully charged and ready to take over in case of power failure. The internal batteries are field-replaceable and hot-swappable.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A 96% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
LED Indicators and Audible Alarms Keep You Informed
Five front-panel LEDs keep you apprised of line power, battery power, overload, voltage regulation and battery low/replace status at a glance. A multi-function alarm sounds to warn you of power failure, overload and low-battery conditions.
Package Contents:
- SmartPro SMART500RT1UN 500VA Rack/Tower UPS
- WEBCARDLX Network Management Card
- Micro USB to USB-A
- USB Cable
- DB9 Cable
- EPO Cable
- Rack-Mounting Hardware
- Owner's Manual
SpecificationPower DescriptionLoad Capacity (Watt)300 WSurge Energy Rating567 JInput Voltage120 V ACOutput Voltage
Load Capacity (VA)500 VAWaveform TypeSine WavePhysical CharacteristicsForm FactorRack/TowerWeight (Approximate)17.60 Height1UWarrantyLimited Warranty2 YearControls/IndicatorsStatus Indicators LED Indicators: 5 LEDs Indicate Line Power Battery Power Overload Voltage Regulation Battery Low/Replace Status Interfaces/PortsEPO PortYesSerial PortYesUSB (HID Compliant) PortYesBattery InformationBackup/Run Time (Full Load)3 MinuteDC System Voltage12 V DCReplaceable BatteryYesHot SwappableYesBackup/Run Time (Half Load)14 MinuteTypical Battery Recharge Time14.40 HourGeneral InformationBrand NameTripp Lite seriesMarketing Information 500VA/300W/120V Battery Backup for PC Networks, Security Systems or Digital Signage The SmartPro® line-interactive SMART500RT1UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The seven-outlet 120V battery backup is ideal protection for rack-mount equipment in your server room or network closet. Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (150W) powered as long as 14 minutes and a full load (300W) up to three minutes. Included WEBCARDLX Network Interface Offers 24/7 Access The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. 6 NEMA Outlets Protect Your Connected Components Six 5-15R outlets provide battery backup, 567 joules of surge protection and voltage regulation for your crucial components. Five are UPS-supported, and one is surge-only to connect peripherals not requiring battery backup. One UPS-supported outlet is switchable, allowing you to power its connected device on and off remotely to reset or reboot it or to shed a less significant load to extend battery runtime for more critical equipment. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART500RT1UN maintains regulated 120V nominal output during brownouts as low as 90V, while keeping the battery fully charged and ready to take over in case of power failure. The internal batteries are field-replaceable and hot-swappable. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Designed for High Efficiency to Help You Save Money and Protect the Environment A 96% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs. LED Indicators and Audible Alarms Keep You Informed Five front-panel LEDs keep you apprised of line power, battery power, overload, voltage regulation and battery low/replace status at a glance. A multi-function alarm sounds to warn you of power failure, overload and low-battery conditions. Product TypeLine-interactive UPSProduct NameSmartPro SMART500RT1UN 500VA Rack/Tower UPSManufacturerEaton CorporationManufacturer Part NumberSMART500RT1UNProduct ModelSMART500RT1UNProduct LineSmartProTitleProduct TitleTripp Lite by Eaton UPS SmartPro 120V 500VA 300W Line-Interactive UPS 1U WEBCARDLX USB DB9 6 Outlets (SMART500RT1UN)Technical InformationReceptacle TypeNEMA 5-15RReceptacle Detail6 x NEMA 5-15ROverload ProtectionYesPhaseSingle PhasePlug/Connector TypeNEMA 5-15PEMI/RFI Noise FilterYesApplication/Usage
- Digital Signage
- Network Closet
- Server Room
- Electronic
- Mission Critical Equipment
- Business
- POS Terminal
- VoIP
- Desktop Computer
Number of Surge-only Outlets1Transfer Time4 msAVRYesManagementNetwork ManagementSNMP/Telnet/SSHAlarm
- Power Failure
- Overload
- Low Battery
Environmental ConditionsThermal Dissipation12.90 WMaximum Operating Temperature104°F (40°C)Storage Temperature5°F (-15°C) - 122°F (50°C) Shipping
