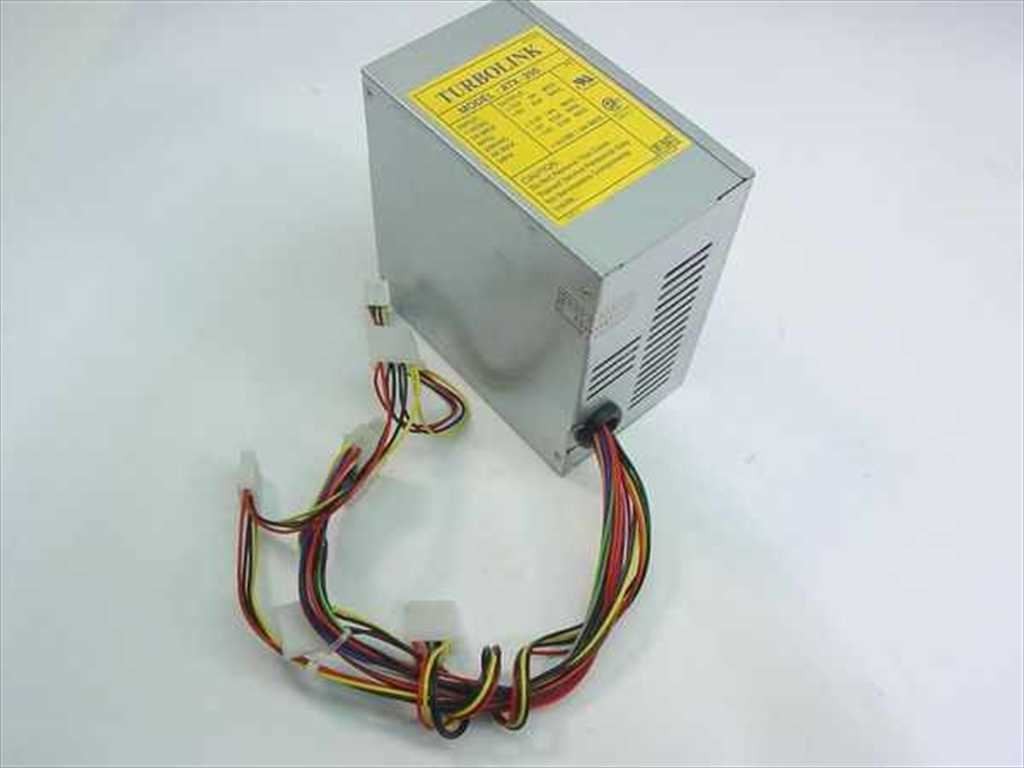

Turbolink ATX-250 250W ATX Power Supply 20-Pin CWT-250ATX 115/230V Desktop PSU

Turbolink ATX-250 250W ATX Power Supply 20-Pin CWT-250ATX 115/230V Desktop PSU

The Turbolink ATX-250 is a 250-watt ATX form-factor desktop computer power supply, manufactured to the ATX 2.03 standard. It features a 20-pin ATX main connector and a rear-mounted hard power switch, and is dual-voltage capable — accepting 115VAC at 60Hz or 230VAC at 50Hz for use in either North American or international desktop systems. The secondary model designation is CWT-250ATX (also labeled C1245-1 Rev B on the unit).

Specifications & What's Included

• Model: ATX-250 / CWT-250ATX (C1245-1 Rev B)
• ATX Standard: ATX 2.03
• Maximum Output Power: 250W
• Main Connector: 20-Pin ATX
• Input Voltage: 115VAC (7A Max, 60Hz) / 230VAC (4A Max, 50Hz)
• Output +12V: 8A Max
• Output +5V: 25A Max
• Output +3.3V: 14A Max
• Output -5V: 0.5A Max
• Output -12V: 0.5A Max
• Output +5V Standby: 1.5A Max
• Rear-mounted hard power switch (I/O)
• IEC C14 AC inlet on rear panel
• Rear exhaust fan for active cooling
• Includes attached Molex (4-pin peripheral) and drive power power supplies of this type were the standard power source for desktop PCs built from the mid-1990s through the mid-2000s, powering motherboards, hard drives, optical drives, and add-in cards from a single regulated multi-rail unit. The ATX 2.03 standard was widely used during the Pentium II, Pentium III, and early Pentium 4 era, and the 20-pin main connector is compatible with motherboards from that generation as well as many later boards that include a 20+4 pin socket. This unit is suited for restoring or maintaining period-correct desktop systems, as a replacement for failed PSUs in vintage builds, or as a bench power source for testing ATX-era components. The dual-voltage input makes it usable in both 120V and 240V mains environments.
  Condition: Used
  This Turbolink ATX-250 CWT-250ATX 250W ATX power supply has been tested at our facility and is in good working order. The unit powers on and functions as expected. The housing shows typical light wear consistent with prior use, and the attached Molex and drive cables are intact. The rear power switch and IEC AC inlet are present and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function. Visit Our Store
