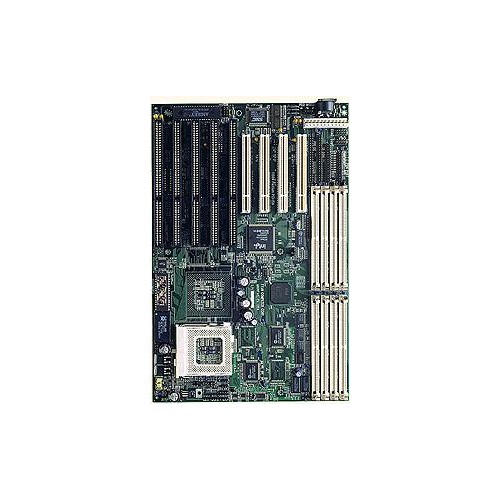

Tyan,S1564,Tomcat IV Socket 7 motherboard 5ISA 4PCI slots AT
Price: US $338.17
Tyan S1564S Tomcat IV Motherboard Tyan S1564S Tomcat IV Motherboard


  • Storage:
    • 2 x PCI Bus Master IDE Ports (Up to 4 IDE Devices)
    • Supports PIO Mode 3, 4: 17MB/Sec.(Max.)
    • DMA Mode 2: 22MB/Sec.(Max.)

  • Rear Panel I/O Ports:
    • 1 ATX PS/2 Mouse port using IRQ 12
    • 1 ATX ECP/EPP Parallel port
    • 2 ATX 16550 High Speed Serial Ports
    • 2 USB Ports rev 1.2
    • 1 ATX PS/2 Keyboard Connector

  • Internal I/O Interface:
    • 2 x Floppy Port (Up to 2.88MB, 3 Mode)
    • 2 x Serial Ports (16550 Fast UART Compatible)
    • 1 x Parallel Port (ECP, EPP Port)
    • 2 x USB Ports
    • 1 x IR Port
    • 1 x PS/2 Mouse Port

Motherboard Specifications

  • Model:
    • Tyan S1564S Tomcat IV Motherboard
  • Processor Support:
    • ZIF Socket 7 for Pentium CPUs
    • Intel Pentium 75-200MHz
    • Intel Pentium MMX 166 - 233MHz
    • Cyrix P120+ - P166+
    • AMD K5/K6 75-233MHz
  • FSB:
    • 66MHz Bus Speeds

  • Chipset:
    • Intel 430HX PCIset

  • Memory:
    • 8 x 72-Pin SIMM Sockets
    • Support 8MB to 512MB Memory Capacity
    • Support 4/8/16/32/64MB 72-Pin DRAM Module
    • Fast Page Mode or EDO DRAM Support
    • Fast Page Mode or EDO Dram
    • Support EDO / FPM w/Parity / ECC Support
  • Expansion Slots:
    • Four 32-bit PCI Bus Mastering Slots
    • Five 16-bit ISA Slots
    • One Shared PCI/ISA Slot - 7 usable
  • BIOS:
    • Award or AMI BIOS
    • With DMI, Green, Plug and Play Features
    • 1M-bit Flash EPROM
  • Form Factor:
    • Baby AT. 8.6" x 13"
