Tyan S2507T Tiger 230T dual socket 370 motherboard Via Apollo Pro 133 chipset. S
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Tyan S2507T Tiger 230T dual socket 370 motherboard Via Apollo Pro 133 chipset. S
Price: US $361.59

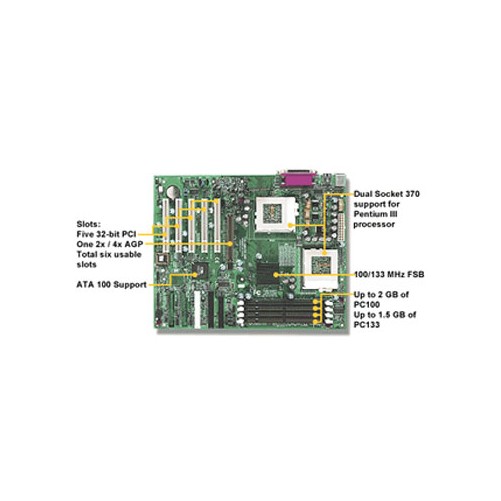

Tyan Tiger 230T (S2507T) dual socket 370 Motherboard

Dual socket 370 motherboard

  • Up to four Enhanced IDE devices
  • Support for ATA-100/66/33 IDE and ATAPI-compliant devicess
  • Rear Panel I/O Ports:
    • Stacked parallel (one) and serial (two) ports
    • Stacked USB (two) ports
    • Stacked keyboard and mouse ports
  • Internal I/O Interface:
    • One floppy connector supports up to two drives
    • Two USB ports (via optional BIOS on 2Mb Flash ROM
    • Auto-configuration of IDE hard drive types
    • DMI 2.0 compliant
    • Multiple boot options

    • Motherboard Tiger 230T (S2507T) dual socket 370 Motherboard

  • Processor Support:
    • Dual PGA370 ZIF sockets (universal)
    • Supports up to two Intel Pentium III Processors or up to two Pentium III Processors with 512kB Cache (FC-PGA)
    • Two onboard VRMs (VRM 8.5 Apollo Pro133T chipset
    • VT82C694T north bridge and VT82C686B south and 3.3v 168-pin DIMM sockets
    • Supports up to 2/1.5GB of PC100/133 SDRAM
    • Supports ECC (72-bit) memory modules
  • Expansion Slots:
    • One AGP 1X/2X/4X slot
    • Five 32-bit Master PCI bus slots
    • Total of six usable slots
  • Hardware Monitoring:
    • Winbond W83782D hardware monitoring ASIC
    • CPU temperature, voltage, and fan monitoring
  • Form Factor:
    • ATX footprint (12" x 9.6", 304.8mm x 243.84mm)
    • One 20-pin ATX power connector
