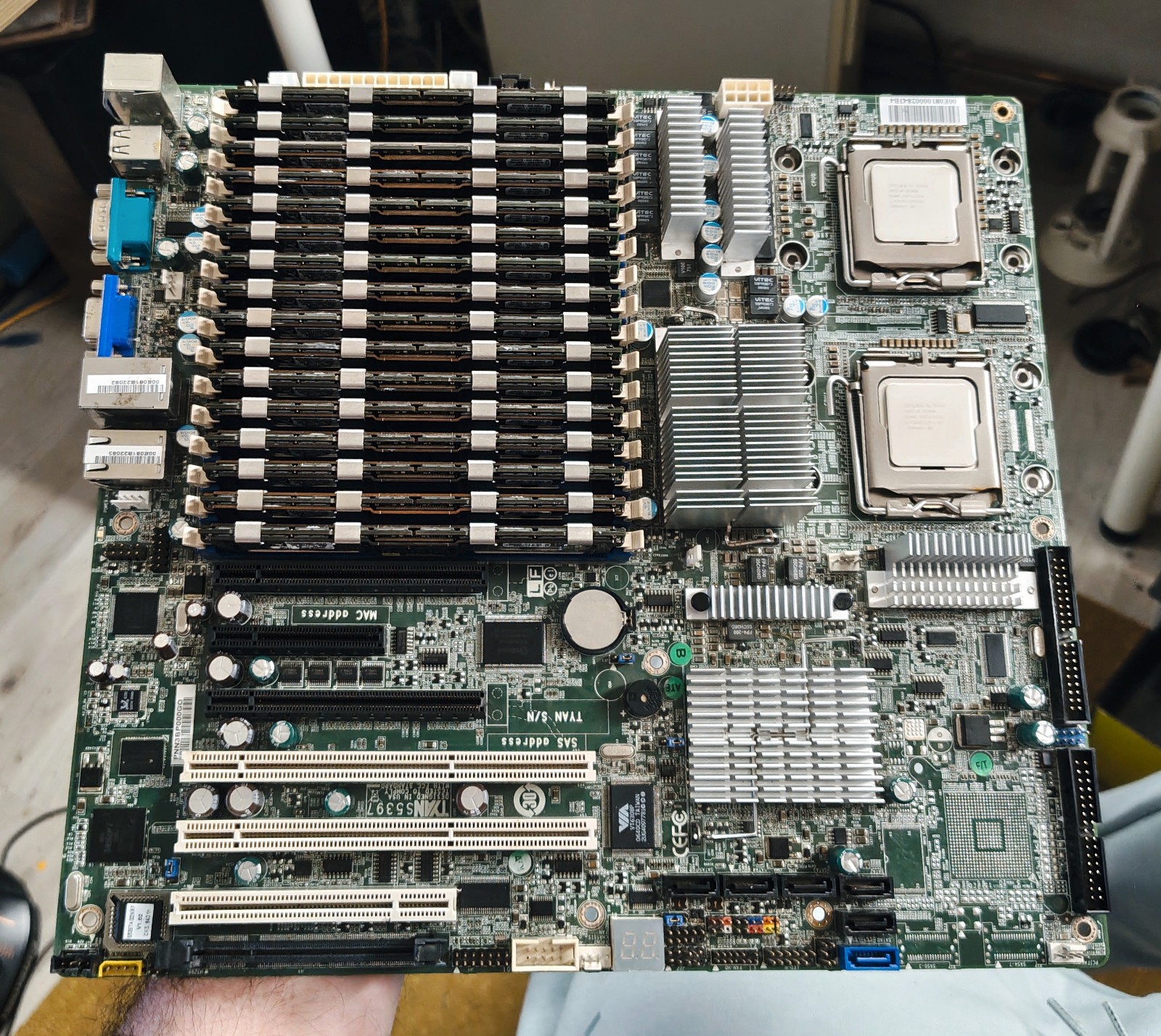

Tyan S5397 socket 771 Dual CPU EATX Motherboard with two Xeon E5440 CPUs and 16x 4GB (64GB) of Kingston KVR667D2D4F5/4G DDR2 667MHz RAMTyan S5397- LGA771 / (2)
- Intel 5400B / 6321ESB
- (16) DIMM slots, Fully-Buffered DIMM / 800/667/533, Up to 128GB
- (2) PCI-E Gen2 x16 slots / (1) PCI-E x8 slot (w/ x4 link)
- (2) PCI-X 64-bit 133/100MHz slots
- (1) PCI 32-bit slot / PCI device component height limit =9.2mm
- (2) Mini-SAS connectors (8 ports), LSI SAS1068E
- (6) SATA, 6321ESBIntel XEON E5440
- Intel Socket 771
- Frequency: 2.833 GHz
- # of Cores: 4
- # of Threads: 4Kingston KVR667D2D4F5/4G
- FBDIMM Module 240-pin
- ValueRAM’s 4GB (512M x 72-bit), PC2-5300 CL5 SDRAM (Synchronous DRAM) “fully buffered”, ECC “dual rank” memory module
- DDR2 Speed Grade 667 Mbps
- Heat Spreader Full DIMM Heat Spreader (FDHS)
Everything tested and in perfect working condition.
