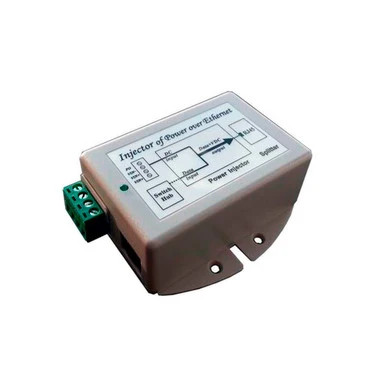

Tycon Power TP-DCDC-1248G Gigabit 48V Passive PoE Injector 9-36VDC 24W Power TP-DCDC-1248G DC-to-DC converter with integrated Gigabit PoE inserter. Accepts 9-36VDC input and provides regulated 48V passive PoE output with up to 24W output power. 𝐓𝐘𝐏𝐄 / Accessories 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• 9-36VDC input voltage range
• Regulated 48V passive PoE output
• Maximum output power: 24W
• Maximum output current: 0.5A
• Integrated 10/100/1000Mb Gigabit PoE inserter
• Shielded RJ45 data input and data/PoE output
• Dual isolated inputs for connecting two power sources
• Low self-consumption power
• Short-circuit, over-current, reverse-voltage, and over-voltage protection
• High-temperature operation
• Compact enclosure Manufacturer: Tycon Power
• Model / Part Number: TP-DCDC-1248G
• DC Input Voltage: 9-36VDC
• DC Input Connector: Removable screw-type compression wire terminal, 12 AWG maximum
• DC Output Voltage: 48V passive PoE
• Maximum Output Current: 0.5A
• Maximum Output Power: 24W
• Data Input / Data-PoE Output Connector: Shielded RJ45
• Ethernet: 10/100/1000Mb Gigabit
• PoE Power Pins: 4,5 positive; 7,8 negative
• Self-Consumption Power: 1W
• Minimum Efficiency: 75%
• Line Regulation: 1%
• Load Regulation: 5%
• Ripple: 1%
• Noise: 1%
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: CSA 22.2 and TUV EN60950
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Operating Humidity: 5% to 90%
• Storage Temperature: -40°C to +80°C (-40°F to +176°F)
• MTBF: 166,000 hours
• Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4 in.)
• Weight: 134g (4.7 oz.)
• Manufacturer-Stated Warranty: 3 years
• Compatibility Note: This model provides 48V passive PoE output. It is not the TP-DCDC-1248GD IEEE 802.3af output model. 𝐔𝐒𝐄 / 12V / 24V battery systems and vehicle applications
• Wireless access points and client devices
• IP phone systems
• Security camera systems Handling time: up to 2 business days
