Tycon Power TP-DCDC-1248GAD Gigabit DC PoE Injector
The Tycon Power TP-DCDC-1248GAD combines a regulated DC-to-DC converter with a Gigabit Power over Ethernet injector. It accepts a wide 9–36V DC input and delivers regulated 48V IEEE 802.3af Mode A PoE power, making it ideal for mobile, solar, battery-powered and remote-network installations.
Use it to power compatible security cameras, wireless access points, IP phones, radios and other IEEE 802.3af PoE devices from a 12V or 24V DC power source.
Features
- 9–36V DC input range
- Regulated 48V DC PoE output
- Maximum output current of 0.35A
- Up to 17 watts output power
- IEEE 802.3af Mode A PoE
- Gigabit Ethernet support up to 1000Mbps
- Shielded RJ45 data input
- Shielded RJ45 data and PoE output
- Removable screw-terminal DC input
- Supports wire up to 12 AWG
- Short-circuit, over-current and reverse-voltage protection
- Mounting tabs for fixed installation
Specifications
- Brand: Tycon Power Systems
- Model: TP-DCDC-1248GAD
- Input voltage: 9–36V DC
- Input current: 1.85A at 12V / 0.90A at 24V
- Output voltage: 48V DC
- Maximum output current: 0.35A
- Maximum output power: 17W
- PoE standard: IEEE 802.3af
- PoE mode: Mode A
- Data rate: 10/100/1000Mbps
- Ethernet connections: Two shielded RJ45 ports
- DC connection: Removable screw terminal
Included
- Tycon TP-DCDC-1248GAD PoE injector
- Removable DC-input terminal block
No external power supply or Ethernet cables are included. This unit requires a compatible 9–36V DC power source and an IEEE 802.3af-compatible PoE device.

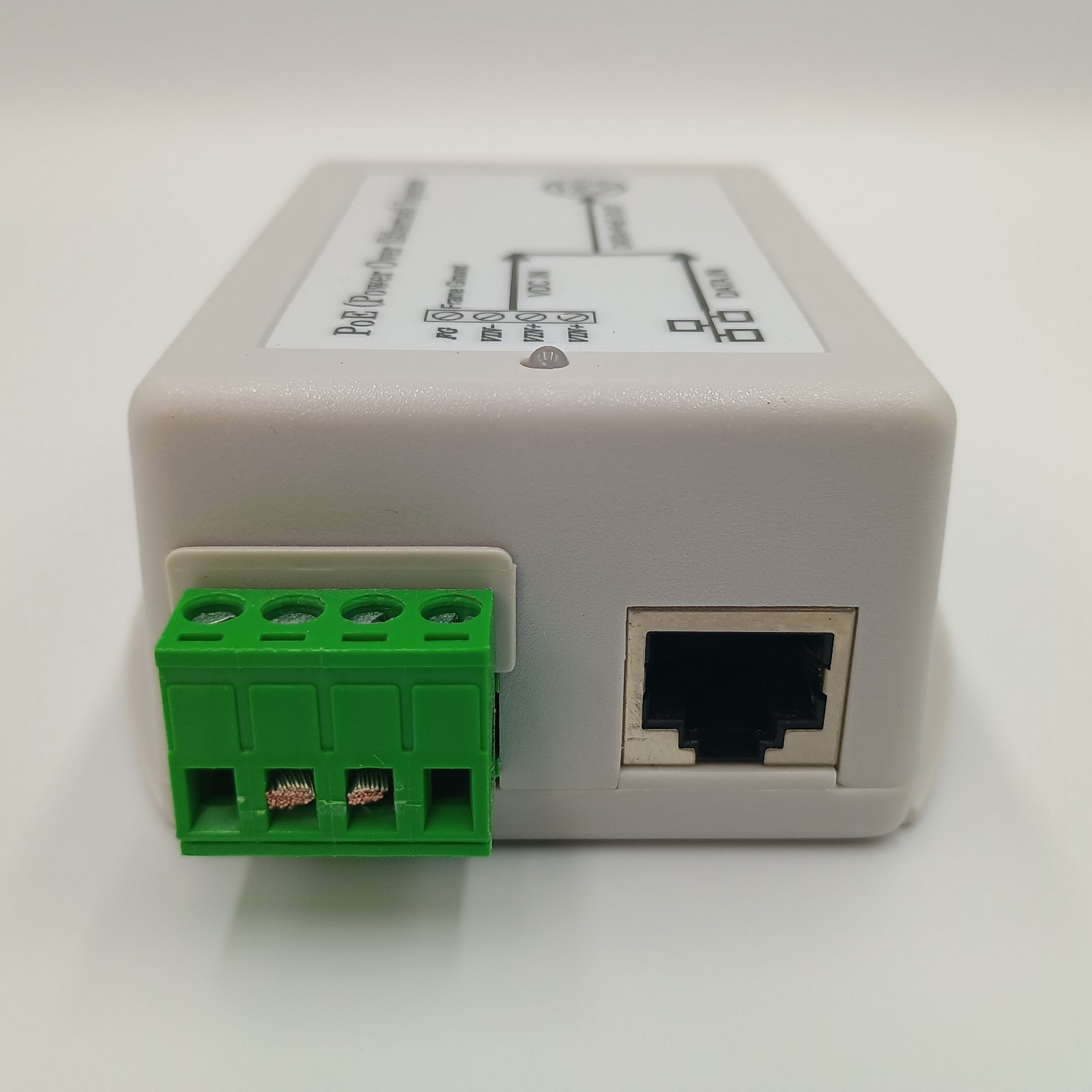

Please review the photographs for the actual item included.
