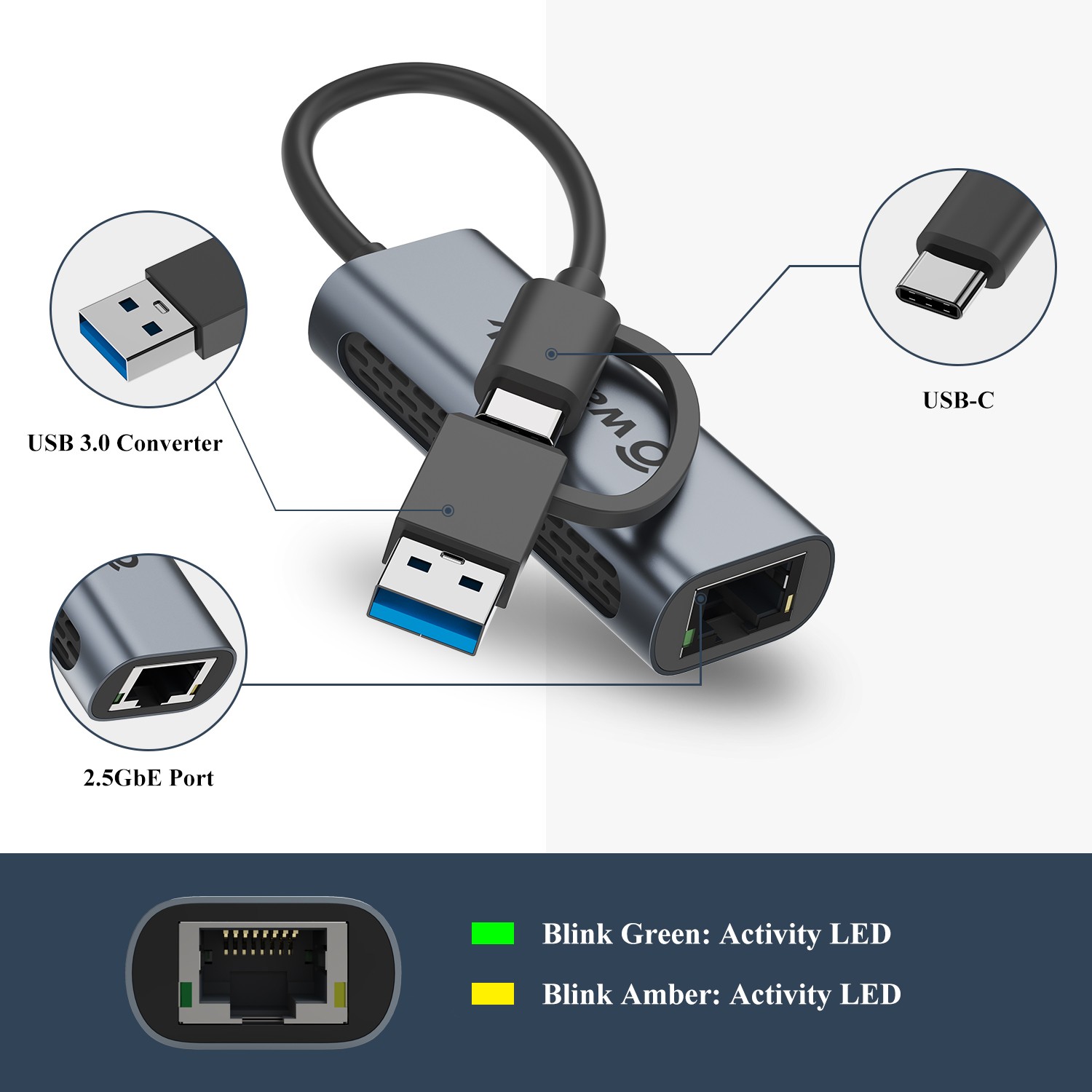

2.5G Ethernet Adapter

Wavlink 2-in-1 2.5G USB-C and USB 3.0 Ethernet Adapter Bring You to Enjoy the Blazing Fast Speed!

Integrated USB ports: This adapter comes with Type-C and USB 3.0 ports to meet your different needs. No need to buy another converter for
PCs/laptops/tablets which feature diffrent interfaces.

Slim & portable: This Ethernet adapter is specially designed for mobility, with an ultra-portable design that fits easily into your laptop sleeve,
bag or pocket.

Excellent heat dissipation: Premium space aluminum shell makes the adapter sturdy and durable. Also designed to prevent overheating,
keeping you and your devices secure.

Overview:
Compact and portable, the USB-C and USB 3.0 to 2.5Gbps Ethernet Adapter is a high performance and low expenditure solution. It is an ideal
desktop network adapter or laptop accessory. This product complies with the IEEE specifications IEEE 802.3u (10/100Mbps), IEEE 802.3ab
(1000Mbps) and IEEE 802.3bz (2500Mbps) Ethernet. Integrated USB-C and USB 3.0 cable and equipped with a 2.5G BASE-T RJ-45 port that
provides gigabit speeds up to 2.5Gbps with Cat.5e cable.

Some common functions include:
Adding wired 2.5 Gigabit network support to Windows desktops, Ultrabooks, 2-in-1 PCs, tablets, or notebooks—as well as Mac and Linux systems.
Replacing or upgrading network adapters for your computer.
USB network adapters can improve transfer speeds compared to 10/100/1000 adapters and most wireless networks.
Adding additional network interfaces, and transferring files peer-to-peer over Ethernet.
Please note, this adapter is not a solution for connecting USB devices like printers, hard drives, etc to a network. This adapter cannot be used to
share Ethernet, WiFi or mobile data between multiple devices.

Features:
1. USB-C and USB 3.0 to Ethernet adapter features 2.5Gbps superspeeds which is prepared for now and ready for future-proof.
2. USB-C compliant with Thunderbolt 3 and USB 3.0 downward compatible with USB2.0 / 1.1.
3. Ethernet compliant with the IEEE 802.3u (10/100Mbps), the IEEE 802.3ab (1000Mbps) and the IEEE 802.3bz (2500Mbps).
4. Supports Microsoft Wake Packet Detection (WPD) to provide Wake-Up Frame information to the OS.
5. Supports ‘RealWoW!’ technology to enable remote wake-up of a sleeping PC through the Internet.
6. Supports jumbo frame length maximum up to 16384 byte.
7. Design build in heat dissipation.
8. Green and amber LEDs indicate the status of power, network connection and speed.
9. Portable and tiny in size, fits anywhere in your office bag or pocket.

Specific instructions for driver installation:
Windows® 10: With existing network connection, drivers install automatically via Windows Update
macOS (10.13.6-10.15): Basic in-box driver support, but for full performance, visit our drivers page to download an updated driver
Linux (5.x Kernel+): In-box driver support, recommended to install driver on lower kernel versions

Compatible with:
Windows, macOS, Linux, and Chrome OS, USB-C (5Gbps), USB 3.0, and Thunderbolt 3 Systems
Microsoft Windows 10, 8.x, 7, Vista and XP
macOS 10.6 and above, iPadOS
Linux kernel 3.2 and above (basic support, install driver or update to 5.x kernel for full support)
Supported on up-to-date Chrome OS systems
Plug and play for Windows 10, Mac OS 10.13.6 to 11.x, iPadOS, Linux Kernel 5.x and above, up-to-date Chrome OS.

Not compatible with:
ARM-based Windows RT and Windows Mobile
Most Android devices, TiVo Series 2, Wii, or other non-PC/Mac platforms
Nintendo Switch
Not recommended for use with FreeBSD or pfSense

Note: Older versions of Windows, Linux, and macOS may require a driver download for the adapter to function. Older macOS versions
will have limited functionality (1Gbps link rate, no jumbo frame support) until the driver is updated through separate install.

95W Charging 5G Ethernet Adapter

[Enhanced Wired Connectivity up to 5G Speeds]Unlock unmatched reliability with speeds reaching up to an impressive 5000Mbps, ensuring
seamless data transmission. Compliant with IEEE standards such as 802.3u (10/100Mbps), 802.3ab (1000Mbps), and 802.3bz (2500/5000Mbps),
this device guarantees optimal performance for various network demands.

[Versatile USB-C 10Gbps Interface]Experience unparalleled connectivity with a USB-C interface that adheres to the latest USB Spec 3.2 standards,
providing lightning-fast data transfer speeds of up to 10Gbps. Whether for large file transfers or demanding applications, this feature ensures efficient
data exchange for all your connectivity needs.

[Advanced Remote Wake-up Functionality]Empower remote functionality with support for Microsoft Wake Packet Detection (WPD), 'Wake-On-Lan,'
and 'RealWoW' features. Seamlessly wake up slumbering PCs over the internet, offering convenience and accessibility like never before, enhancing
productivity and efficiency across various settings.

[Balancing Convenience and Durability]This Ethernet adapter blends convenience and durability with its sleek, lightweight design. Featuring a premium
aluminum alloy shell and internal heat dissipation, it ensures longevity, stability, and reliable performance for sustained connectivity needs.

[Efficient Power and Connectivity]With 95W charging support, this Ethernet adapter allows pass-through Type-C USB charging, enabling simultaneous
power delivery while staying connected, eliminating the need for an extra charger.

Cutting-Edge Connectivity:
Experience lightning-fast network speeds with a single RJ45 Ethernet port supporting up to 5000Mbps, meeting IEEE standards like 802.3u (10/100Mbps)
, 802.3ab (1000Mbps), and 802.3bz (2500/5000Mbps).Coupled with a USB-C port compliant with USB Spec 3.2 for 10Gbps transfer rates, this device
ensures seamless networking and data transfers.

Enhanced Remote Wake-Up Capabilities:
Integrate Microsoft Wake Packet Detection for advanced remote wake-up features like 'Wake-On-Lan' and 'RealWoW.' Boosting efficiency and reliability,
this combo enhances global accessibility with versatile options. Experience flexibility and greater control when activating devices remotely.

Portable Efficiency:
Crafted to be compact and lightweight, this device is optimized for saving space effortlessly, whether at home, in the office, or on-the-go. Its sleek design
ensures maximum portability without compromising functionality, making it an ideal companion for those who value efficiency in every setting.

Compact Portability and Streamlined Power:
This sleek Ethernet adapter features a lightweight design, integrating 95W pass-through charging. Eliminating the need for an extra power source, it reduces
burdens while ensuring longevity, stability, and reliable performance for sustained connectivity needs.

Specifications:
Model: WL-NWU340GD
Color: Grey
Material: Alumimum Alloy
Product Dimensions: 9.34x3.49x1.70cm/3.68x1.37x0.67in
Cable Length: 15cm/5.91in
Ports: 1 x USB-C compliant with USB3.2,1 x RJ45 10/100/1000Mbps/2.5G/5Gbps Ethernet,1 x 95W Charging Port
LED Indicator Blinking Green: Auto-recognition and transferring at 5000 Mbps speeds.
LED Indicator Blinking Amber: Auto-recognition and transferring at 10/100/1000/2500Mbps speeds.
System Requirement: Windows/MacOS/Linux/Chrome OS

Compatibility:
Compatible: Windows, macOS, Linux, and Chrome OS, USB-C (5Gbps), USB 3.0, and Thunderbolt 3 Systems, Microsoft Windows 10, 8.x, 7, Vista and XP, macOS 10.6 and above, iPadOS
Compatible: Linux kernel 3.2 and above (basic support, install driver or update to 5.x kernel for full support), Supported on up-to-date Chrome OS systems
Compatible: Plug and play for Windows 10, Mac OS 10.13.6 to 11.x, iPadOS, Linux Kernel 5.x and above, up-to-date Chrome OS.
Not Compatible: ARM-based Windows RT and Windows Mobile, Nintendo Switch, Most Android devices, TiVo Series 2, Wii, or other non-PC/Mac platforms, Not recommended for use with FreeBSD or pfSense

Note:
1.For 5 Gigabit network performance, use Cat 6 Ethernet cable or higher, ensure your internet plan supports 5G, and that your Modem, Switch, or Router also support 5G output. Additionally, ensure your PC's C port supports 5G or above for faster transmission speeds.
2.Plug and play (driver-free) functionality automatically installs drivers on Windows systems. For Mac and Linux, the system comes with built-in drivers for seamless plug-and-play capabilities without the need for manual installations.For older systems, please download and install the Realtek RTL8156 driver in order not to affect the use of experience.

In The Box:
1 x 5G Ethernet Adapter
1 x Quick Start Guide
1 x Driver Link Card

100W PD 5G Ethernet Adapter

WAVLINK Redefining USB-C 5 Gigabit Ethernet Adapter with 95W PD
The USB-C Network Adapter is a robust and feature-rich solution that combines a 5G Ethernet port for lightning-fast connectivity with a USB-C port
supporting up to 95W Power Delivery for quick charging, all housed in a durable metal aluminum body. With this adapter, indulge in non-stop, lag-free
video streaming, seamless gaming, and rapid file transferring-revolutionizing your online experience.

[5Gb, Unlock the Full Potential] Experience the power of WAVLINK's USB-C to Ethernet adapter, boasting 5Gb performance and lightning-fast wired
connections. This adapter increases data transfer speeds by 400% compared to Gigabit, enabling rapid downloads with NAS devices and efficient content
creation. To unlock 5Gbps speeds, use a CAT6 or higher cable, ensure your router, Ethernet switch, or server supports 5Gb Ethernet, and verify your
device's port complies with USB 3.2 Gen2 (10Gbps) or higher standards.

[Super-fast 95W Charging] The 100W PD port offers continuous power delivery for your USB-C device with max 95W, no worrying about power outage.
Note: The USB-C port only supports charging and does not support data transmission or video output. The charger and charging cable are not included.

[Network Stable Connection] Designed to provide a stable connection between USB-C devices and wired networks, this adapter exceeds the limitations of
WiFi by delivering faster and more reliable network speeds. With its plug-and-play functionality, setup is effortless, no need to install drivers or software,
allowing you to instantly enjoy a secure and high-performance internet experience.

[Sleek and Lightweight Design] Crafted with a focus on convenience, the compact and lightweight design of this device optimizes space utilization in homes,
offices, or on-the-go scenarios. Easy to carry and integrate, it ensures versatility without compromising on performance, catering to dynamic connectivity
requirements effortlessly.

[Robust Construction for Longevity] Engineered with premium aluminum alloy shell and internal heat dissipation design, this device assures durability and
stability for prolonged usage. The sturdy build not only enhances longevity but also guarantees consistent performance, making it a reliable companion for
sustained connectivity needs.

Specifications:
Model: WL-NWU341GD
Color: Grey
Material: Aluminum Alloy
Product Dimensions: 9.4x3.6x1.8cm/3.7*1.4*0.7in
Cable Length(without USB-C connector): 12cm/4.7in
Weight: 72g/2.5oz
Ports: 1x USB-C Connector,1x RJ45 10/100/1000Mbps/2.5G/5Gbps Ethernet, 1xUSB-C PD IN
LED Indicator Blinking Green: Auto-recognition and transferring at 5000Mbps speeds.
LED Indicator Blinking Amber: Auto-recognition and transferring at 10/100/1000/2500Mbps speeds.
System Requirement: Windows/MacOS/Linux/Chrome OS/iOS/iPadOS

Features:
-One RJ45 Ethernet port provides a reliable wired Internet at speed of 5000Mbps.
-Fully compliant with the IEEE 802.3u(10/100Mbps), the IEEE 802.3ab(1000Mbps) and the IEEE 802.3bz(2500/5000Mbps).
-USB-C 10Gbps compliant with USB Spec 3.0.
-The USB upstream port provides 95W power delivery.
-Support Microsoft Wake Packet Detection(WPD).
-Support 'Wake-On-Lan' and 'RealWoW' to enable remote wake-up of a sleeping PC through the Internet.
-Designed as small and light to save space at home, in the office or in your bag.
-High-quality aluminum casing and built-in heat dissipation design for high durability.

Compatibility:
USB Port Compatible: USB-C (5Gbps), USB 3.0/3.1/3.2/4.0, and Thunderbolt 3/4/5 port.
System Compatible: Microsoft Windows 10/11, 8.x, 7, Vista and XP, MacOS 10.6 and above, iPadOS, Linux kernel 3.2 and above
(basic support, install driver or update to 5.x kernel for full support), up-to-date Chrome OS systems.
Plug and play for Windows 10/11, Mac OS 10.13.6 to 11.x, iPadOS, Linux Kernel 5.x and above, up-to-date Chrome OS.
Not Compatible: ARM-based Windows RT and Windows mobile, Nintendo Switch, Most Android devices, TiVo Series 2, Wii,
or other non-PC/Mac platforms, Not recommended for use with FreeBSD or pfSense.

Note:
1.For 5 Gigabit network performance, use Cat 6 Ethernet cable or higher, ensure your internet plan supports 5G, and that your Modem, Switch, or Router also support 10G output. Additionally, ensure your PC's C port supports 5G or above for faster transmission speeds.
2.Plug and play (driver-free) functionality automatically installs drivers on Windows systems. For Mac and Linux, the system comes with built-in drivers for seamless plug-and-play capabilities without the need for manual installations. For older systems, please download and install the Realtek RTL8157 driver in order not to affect the use of experience.

In The Box:
1 x 5G Ethernet Adapter
1 x Quick Start Guide
1 x Driver Link Card
