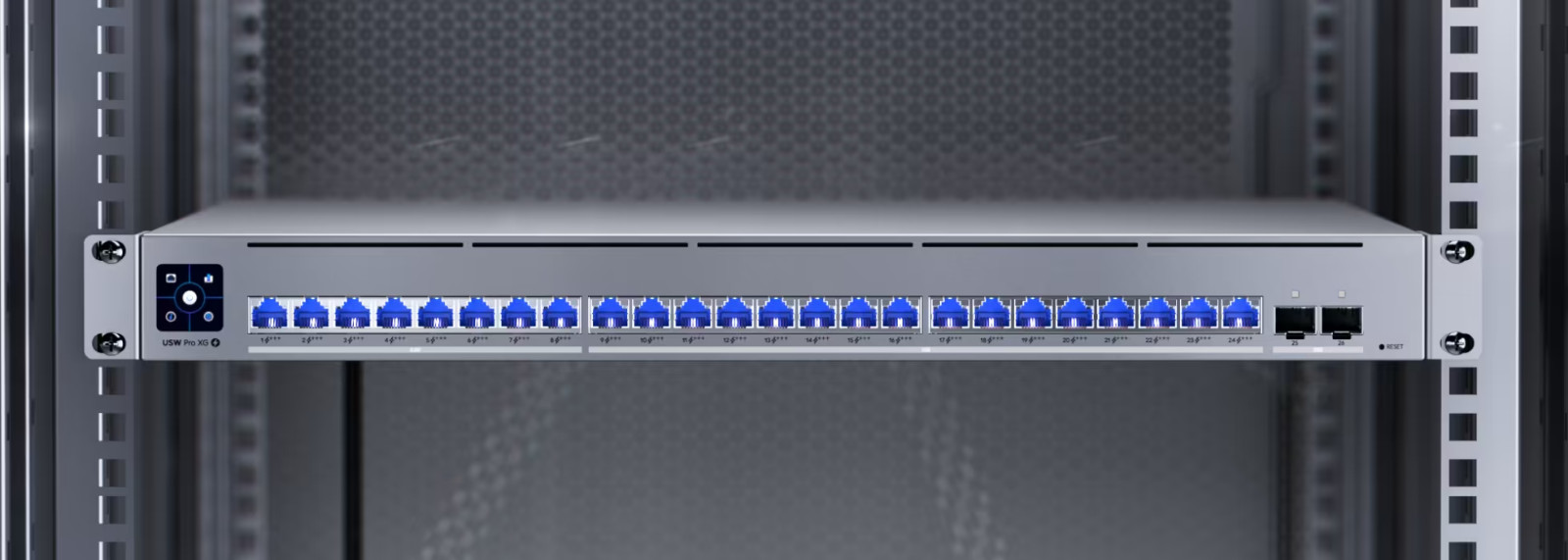

Enterprise Multi-Gigabit Layer 3 Switching Ubiquiti UniFi Pro XG 24 PoE (720W PoE) Model: USW-Pro-XG-24-PoE • (16) 10 GbE PoE+++ • (8) 2.5 GbE PoE+++ • (2) 25G SFP28 • Etherlighting™ 720W Usable PoE Budget PoE+++ (Up to 90W/Port) (16) 10 GbE Ports (8) 2.5 GbE Ports (2) 25G SFP28 Uplinks Etherlighting™ Layer 3 Routing USP-RPS DC Backup NDAA Compliant Product Overview
The UniFi Switch Pro XG 24 PoE is an enterprise-tier Layer 3 aggregation and high-density distribution switch engineered for high-throughput enterprise infrastructure and multi-gigabit access hardware. Featuring sixteen 10 GbE RJ45 ports and eight 2.5 GbE RJ45 ports—delivering up to 90W PoE+++ per port across an abundant 720W total PoE power allocation—alongside dual 25G SFP28 uplinks for ultra-high-bandwidth aggregation. Equipped with Etherlighting™ dynamic port illumination, USP-RPS DC failover support, and complete integration into the central UniFi Network management console.
What is Included • 1× Ubiquiti USW-Pro-XG-24-PoE Switch • 1× Set of Rackmount Ears & Mounting Hardware • 1× Standard AC Power Cord Please note: Photos shown are representative/sample images for illustration and do not depict the exact individual unit or serial number received. Shipping & Transit Verification Packaging: Shipped securely inside a durable, heavy-duty plain brown shipping box with padding. Carrier: Standard tracked and fully insured carrier transit. Security: Direct signature required upon delivery per high-value protection policy. Hardware & System Specifications Port Layout • (16) 10 GbE RJ45 Ports (All PoE+++, 10G/5G/2.5G/1G/100M/10M)
• (8) 2.5 GbE RJ45 Ports (All PoE+++, 2.5G/1G/100M/10M)
• (2) 25G SFP28 Ports (25G/10G/1G) Total Usable PoE Budget 720W Dedicated PoE Output PoE Delivery per Port (24) PoE+++ Ports • PoE (15.4W) / PoE+ (30W) / PoE++ (60W) / PoE+++ (90W Max Output) Power Supply & System Draw Internal 870W AC/DC PSU (720W Allocated for PoE Delivery + 150W Switch System Hardware) Switching Capacity 460 Gbps Total Non-Blocking Throughput 230 Gbps Forwarding Rate 342 Mpps LCM Display 1.3" Touchscreen Status Display Power Redundancy (1) USP-RPS DC Input for Seamless Power Failover Dimensions & Weight 442 × 480 × 44 mm (17.4 × 18.9 × 1.7 in) — 1U Full-Depth Rackmount • 7.9 kg (17.4 lbs) without brackets Enclosure & Compliance SGCC Galvanized Steel Enclosure • NDAA Compliant Layer 2, Layer 3 & Management Features Etherlighting™ Technology Port locator illumination, link speed status, and native VLAN color-coding across RJ45 and SFP28 interfaces Layer 3 Routing Inter-VLAN Routing, Static Routing, DHCP Server (Local Networks), DHCP Relay Link Aggregation & Spanning Tree LACP Port Aggregation, STP, RSTP, Loop Protection, Jumbo Frames Pro AV & Multicast Protocols IGMP Snooping, Querier, Fast Leave, Router Port, Pro AV Profiles (Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Security & Traffic Isolation 802.1X Access Control, MAC & IP-Based ACLs (256 each), Port & Device Isolation, DHCP Snooping & Guarding, Storm Control Hardware Capacities 32,000 MAC Address Entries, 1,000 VLANs, 512 IPv4 Static Routes, 8 MB Packet Buffer Authentic Ubiquiti Enterprise Hardware • Fully Tested & Protected for Transit
