- Hotend COMPATIBILITY: This upgrade kit comes with two different connector adapters, making it compatible with a wide range of 3D printers including the Voron series, Ender 3, Ender 3 Pro, Ender 3 V2, Ender 5 series, Ender 2 series, Ender 6, and CR10 series. Enjoy seamless integration with your existing setup!

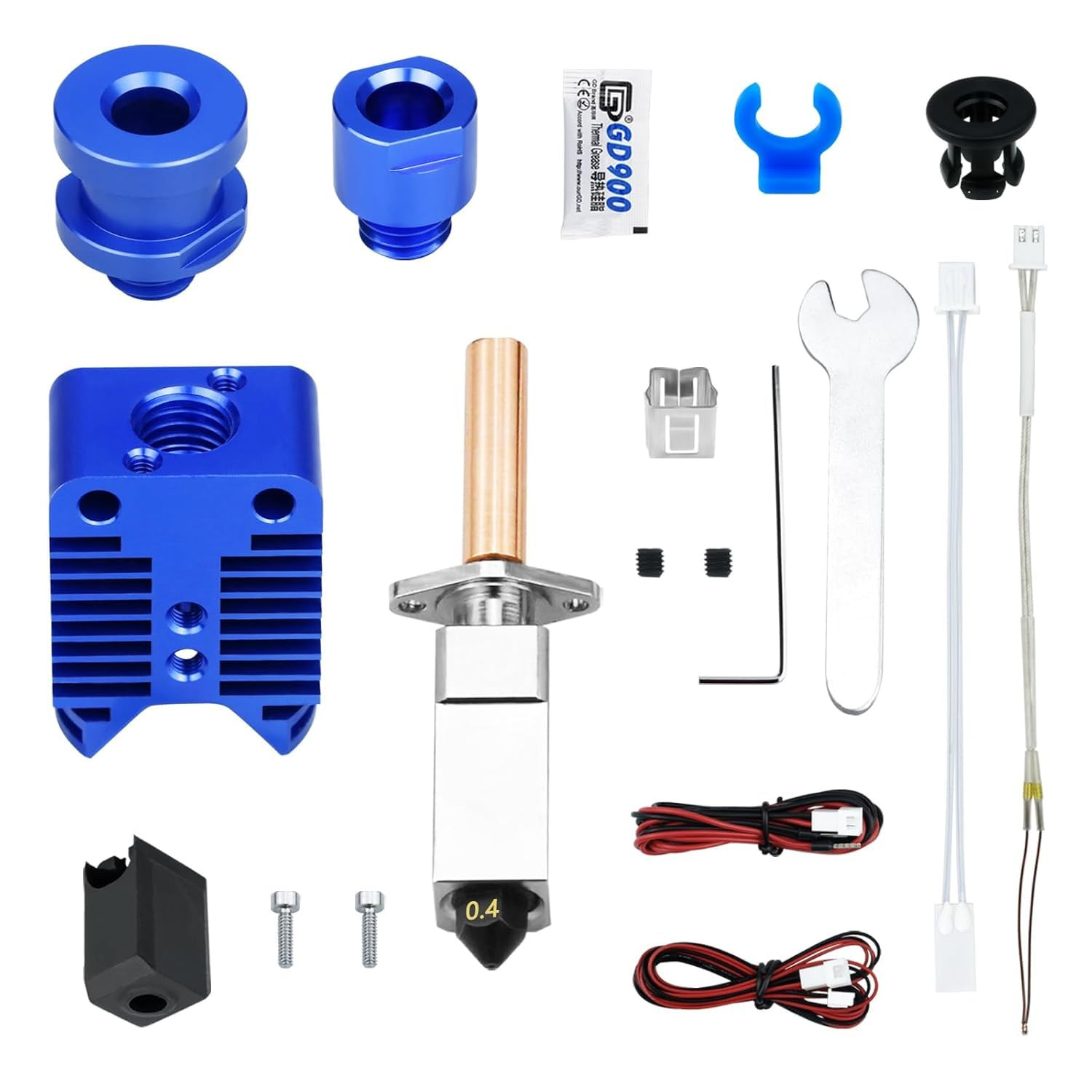

- Package Includes: 1 Set of Hot Ends as shown in the first photo. For firmware options, it is compatible with Marlin Firmware Configuration using NTC 100K MGB18-104F39050L32 Thermistor with a 4.7k Pull-Up.
- Ceramic Heater: The kit features a 24V 48W Ceramic Heater, equipped with an NTC 100K MGB18-104F39050L32 Thermistor, tracking an impressive range of 22-33mm³/S. Unlike standard hotends, the ceramic heater tube and thermistor are separate, allowing for easy replacement without needing to change the entire heater block kit.
- All Metal Design: This upgrade boasts a bimetallic heatsink made from TC4 titanium and copper plating, ensuring superior heat dissipation. The sturdy construction is fastened securely with two small M2 screws, providing a reliable and durable hotend for your 3D printing needs.
- Heater Block Upgrade: Crafted from nickel-plated copper, this heater block can withstand temperatures up to 500°C and conducts heat rapidly. While the heater core and thermistor are rated for 300°C, this hotend is capable of printing with a wide variety of special filaments. Please note that the maximum print temperature is 300°C for optimal performance.
- Hardened Steel Nozzle: The nozzle is made from hardened steel with a threaded connection, ensuring a secure fit and minimizing the risk of shedding and leakage. The removable nozzles can be easily replaced, saving you time and enhancing your printing experience.
- Warm Tip: If you’re in search of a hotend that can print at higher temperatures and faster speeds without overheating, this Upgrade Hotend Kit is the perfect choice for you!
Product descriptionUpgrade Xirbbo High Flow Hotend Ceramic CHC 24V Copper Heater Block Titanium Heatbreak 3D Printer Accessory Part Hotend KitEnder 3 V2 Neo High Flow Hotend - Small Size and Lightweight
This hotend features a ceramic heater with a 24 Volt 48 Watt thermistor (NTC 100K 3950B), tracking range of 22-33mm³/S. Unlike traditional CHC heaters, the ceramic heater and thermistor are separate, allowing for easy user replacement without needing to replace the entire heater kit.
Upgrade Xirbbo High Flow Ender 3 V2 Neo Ceramic Hotend3D Printer Upgrade Xirbbo High Flow Ender 3 V2 Neo Ceramic Hotend Installation Details
Net Weight of Kit Product: 25-30g
Radiator Material and Process: Aluminum Alloy
Pipe Material Technology: Chromium Zirconium Copper Wrapped Bowl Alloy
Heating Block Material Technology: Chromium-Plated Zirconium Copper Nickel
Nozzle Material Process: Hardened Steel SKD11 + Surface DLC Nano-Treatment
Throat Wall Thickness: 0.25mm; Throat Insulation Distance: 1.2mm
Throat Inner Wall Roughness: Ra0.4; Standard Nozzle Diameter: 0.4mm
Consumable Diameter: 1.75mm
Support Printing Consumables: PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK, PEI, and more.
The Hot End is suitable for CR10, CR10S, Ender 3, Ender 3 V2, Ender 3 Pro, Voron 2.4.
3D Printer Upgrade Xirbbo High Flow Ender 3 V2 Neo Ceramic Hotend Replacement for a Wide Range of ModelsCompatibility:
With two different connector adapters, this hotend is compatible with the Voron series, Ender 3, Ender 3 Pro, Ender 3 V2, Ender 5 Series, Ender 2 Series, Ender 6, and CR10 Series 3D printers.
Upgrade Xirbbo High Flow Ender 3 V2 Neo Ceramic Hotend Description of Internal Details
The radiator and throat can be disassembled and locked by a side top wire to reduce the cost of use.
The nozzle is connected by means of a thread, utilizing the contact between the nozzle and the step surface at the bottom of the throat, which completely solves the issue of shedding and reduces the possibility of material leakage. The removable nozzle design further reduces costs.
The throat fits tightly with the heater block, and the added step surface at the bottom of the throat completely eliminates dislodging and reduces the possibility of material leakage.
High Temperature Resistant Printing with Fast Thermal Conductivity
The heating block is upgraded to chrome-plated copper with nickel plating for maximum durability and efficiency.
The nozzle is made of hardened steel, ensuring wear-resistance and prolonging service life.
This design reduces clogging and enhances print quality.
Structural Upgrades to Pipes and Nozzles
The nozzle structure features a threaded connection between the heating block and the throat, effectively addressing dislodging issues and allowing for easy disassembly and replacement to minimize costs.
Tube and Nozzle Inner Wall Roughness
The throat and heating block are designed for an integrated interference fit, with structural upgrades and an added step limit to prevent material leakage and dislodgement.
Radiator & Hose
Fixed by side fixing shaft with top wire for enhanced stability.
Hardened Steel Nozzle SizeThermistor + Heater + Silicon SleeveThermistor + Heating Pad Parameters
