Kindly Reminder: This bluetooth module can only support Android mobile device.
Used to communicating between the VESC and VESC Tool (mobile) over BLE. Note that the UART port on the VESC must be enabled with a baud rate of 115200 for this to work. The UART port on VESC can work only under 115200 baud

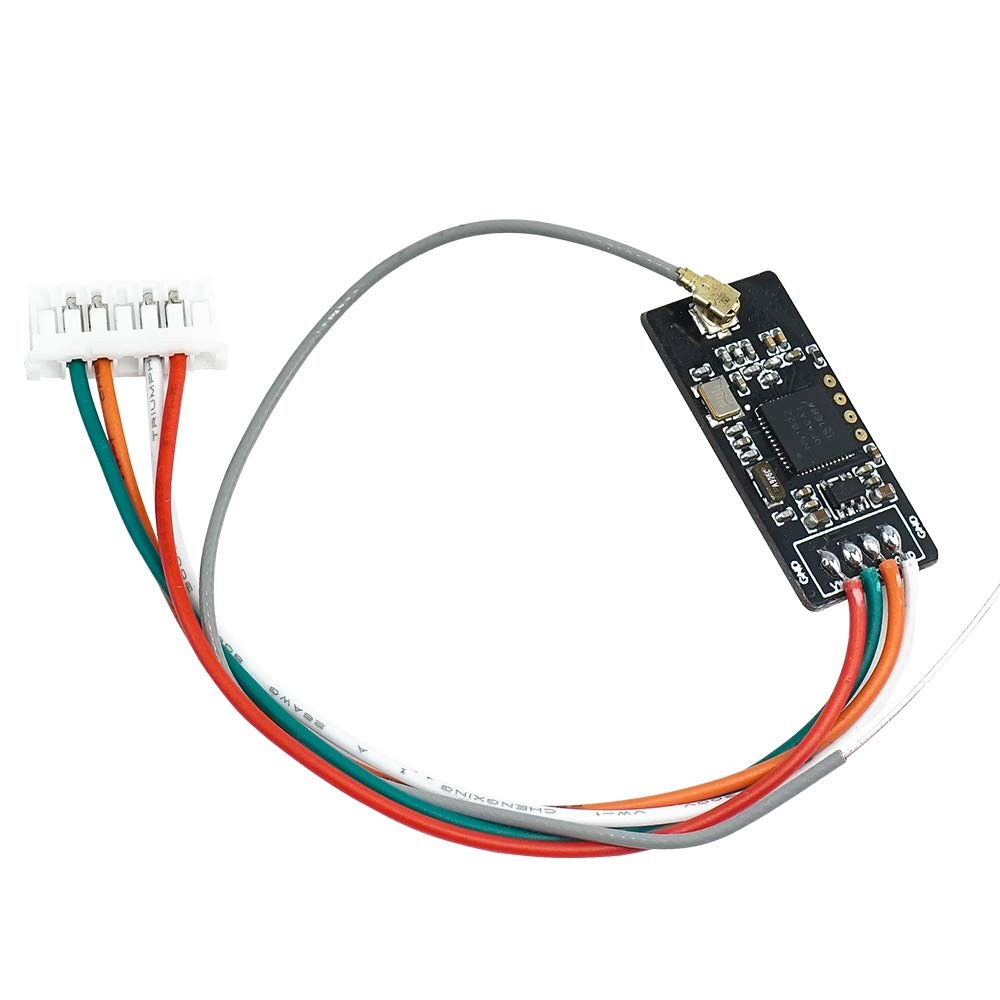

Operating voltage: 2.0V ~ 12V Onboard Chip: NRF51822
Actual use distance: The distance to communicate with VESC is about 15 meters
Frequency range: 2.4GHz
2.4 GHz multiprotololl RF receiver
ARM Cortex-M0 32 bit processor
256kB flash & 16kB RAM
PCB size：27mm*13mm
2.0mm seven-pin four-wire connector length：90mm
Antenna length：145mm
net weight：0.006kgKindly Reminder: This bluetooth module support Android /IOS mobile device.
Used to communicating between the VESC and VESC Tool (mobile) over BLE. Note that the UART port on the VESC must be enabled with a baud rate of 115200 for this to work. The UART port on VESC can work only under 115200 baud
Operating voltage: 2.0V ~ 12V Onboard Chip: NRF51822
Actual use distance: The distance to communicate with VESC is about 15 meters
Kindly Reminder: This bluetooth module support Android /IOS mobile device.
