Features:

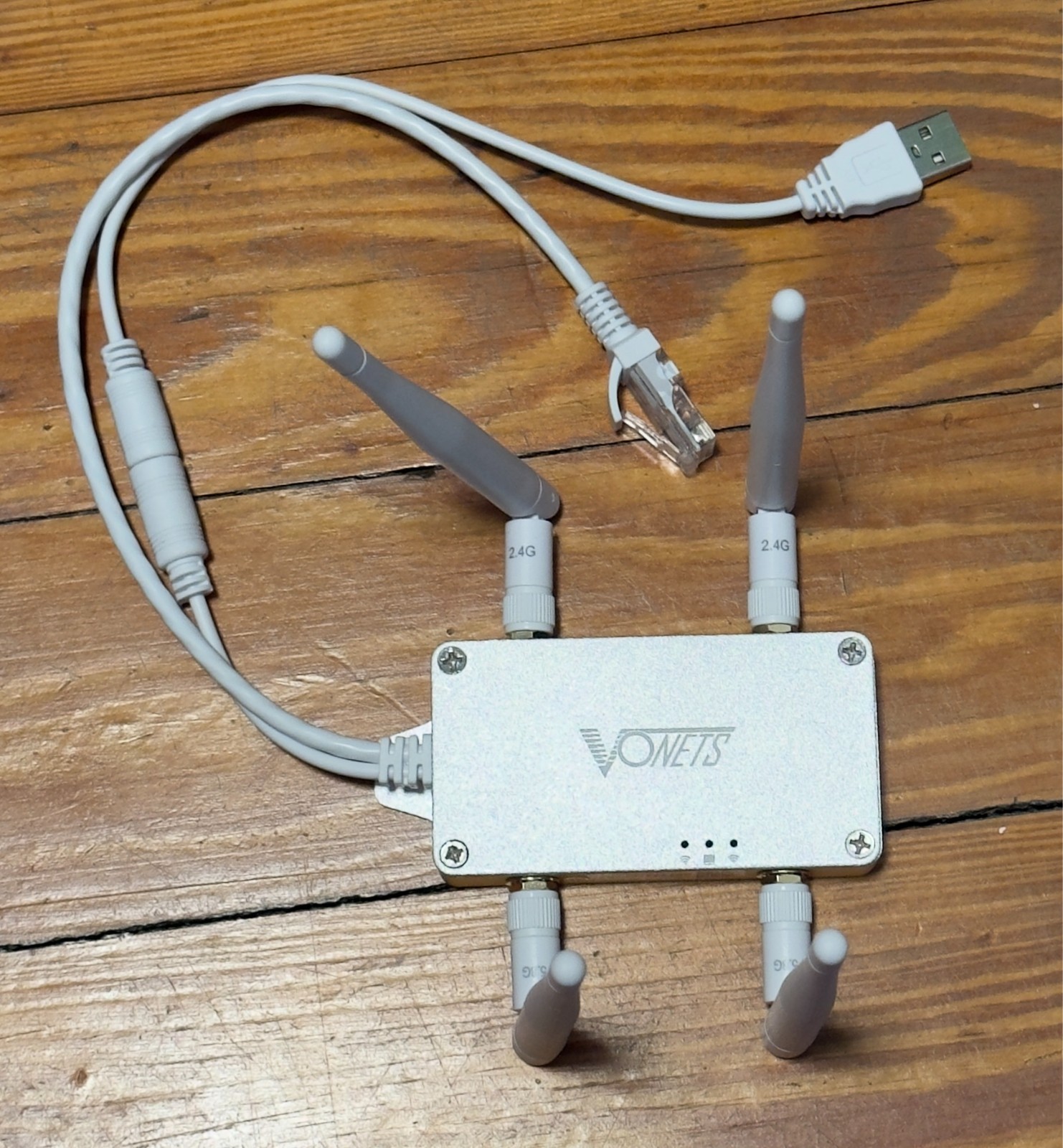

1.Industrial Mini 2.4GHz/5GHz Dual Band AC1200 WiFi Bridge/Router (Ethernet to WiFi or WiFi to Ethernet);
2.The output power of the power supply is not less than 10W (typical power supply 5V/2A, ripple less than 100mV)
3.Product power supply: 1.3W - 3.75W
4.The product built-in low noise amplifier (LNA) to enhance receiving sensitivity (the receiving sensitivity is 14dB); the product built-in PA greatly enhances signal coverage
5.The aluminum alloy shell has good heat dissipation characteristics, which can quickly dissipate the heat generated when the device is working;
6.Working Environment temperature is -20℃ to 50℃
7.Support 802.11ac/a/g/b/n WiFi transmission protocol
8.Support connecting more than 20pcs WiFi terminal at the same time
9.Hotspot connection parameter import and export function
10.Adopt temperature compensated auto frequency control technology, WiFi signal is more stable and not easy to drop;Hardware Specification:
Reset button: Long press 5 seconds then release(During operation, the product can not be powered down, otherwise it may cause damage to the product.)
LED Status instruction:
Ethernet port status light (Yellow);
2.4G WiFi connection status light (Blue);
5G WiFi connection status light (Green);
