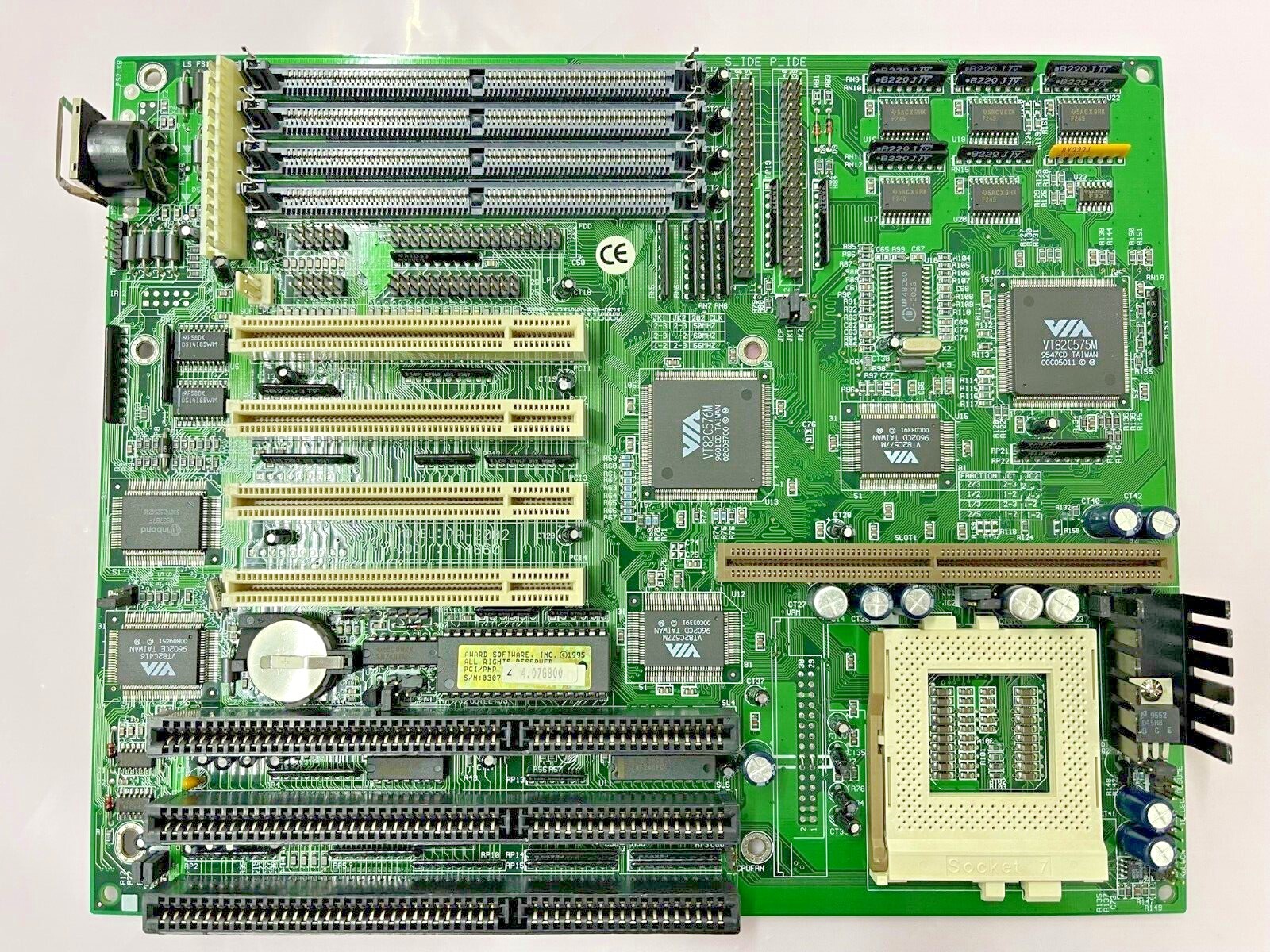

VINTAGE FIC PA-2002 VIA APOLLO 570M SOCKET 7 AT MOTHERBOARD INTEL AMD K5 K6 CYRIX MBMX38.Manuals,Drivers and Cables NOT included. Fully Tested. OEM Surplus.

VISIT CPU-UPGRADE DOT COM FOR TEST CPU SUPPORT ON THIS MOTHERBOARD or GOOGLE "PA-2002 SPECS"

** USA Seller ** THE ONLY LISTING ON ! OEM DIRECT!

FLAT USPS PRIORITY Shipping

US-RM2-MBMX38-0000

SPECS:

• CPU support:6x86 to 166, K5, P54C to 166.
• Speed:50, 60, or 66MHz.
• Slots:4 PCI, 3 ISA
• RAM:4 72-pin FPM, EDO or BEDO, up to 128MB.
• Cache:COAST socket, 256k pipeline burst standard, asynch or PLB up to 1MB optional.
• Chipset:VIA Apollo 570M, Award BIOS.
• Best With:Pentium.
• Status:Legacy.
•


FIRST INTERNATIONAL COMPUTER, INC.

PA-2002

Processor

Pentium

Processor Speed

Chip Set

VIA

Max. Onboard DRAM

128MB

Cache

256/512/1024KB

BIOS

Award

Dimensions

274mm x 218mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), VRM connector, cache slot, IR connector

NPU Options

None

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

BAT

Green PC connector

GREEN

PS/2 mouse interface

CN1

IR LED

ILED

IR connector

CN2

Power LED & keylock

LOCK

Serial port 2

CN4

Reset switch

RESET

Serial port 1

CN5

Speaker

SPEAK

Parallel port

CN6

Turbo LED

TLED

Floppy drive interface

CN7

32-bit PCI slots

PC1 - PC4

IDE interface 2

CN8

Cache slot

SL1

IDE interface 1

CN9

VRM connector

VRM

Chassis fan power

FAN

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Factory configured - do not alter

CN3

N/A

»

Password disabled

JCP

Open

Password enabled

JCP

Closed

»

Parallel port unidirectional

JI

Open

Parallel port offerirectional

JI

Closed

BIOS select Intel 28F001BX-T

J2

Pins 2 & 3 closed

BIOS select SST 29EE010

J2

Pins 1 & 2 closed

»

Turbo LED enabled

J3

Open

Green PC LED enabled

J3

Closed

»

Factory configured - do not alter

OUT

N/A

DRAM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(2) 256K x 36

None

4MB

(2) 256K x 36

(2) 256K x 36

8MB

(2) 1M x 36

None

10MB

(2) 1M x 36

(2) 256K x 36

16MB

(2) 1M x 36

(2) 1M x 36

18MB

(2) 2M x 36

(2) 256K x 36

32MB

(2) 4M x 36

None

34MB

(2) 4M x 36

(2) 256K x 36

36MB

(2) 4M x 36

(2) 512K x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 4M x 36

(2) 4M x 36

66MB

(2) 8M x 36

(2) 256K x 36

72MB

(2) 8M x 36

(2) 1M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

Note: Board accepts EDO DRAM.

CACHE JUMPER CONFIGURATION

Type

JSRAM

Asynchronous

Pins 1 & 2 closed

Synchronous

Pins 2 & 3 closed

CPU SPEED CONFIGURATION

Speed

JC1

JC2

JK1

JK2

75MHz

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

90MHz

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

100MHz

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

120MHz

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

133MHz

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

150MHz

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

166MHz

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

CPU VOLTAGE CONFIGURATION

Voltage

CPUV

3.384v

Pins 2 & 3 closed

3.54v

Pins 1 & 2 closed

POWER SUPPLY CONFIGURATION

Setting

J1

J4

Normal power supply

Closed

Closed

Software power supply

Open

Open
