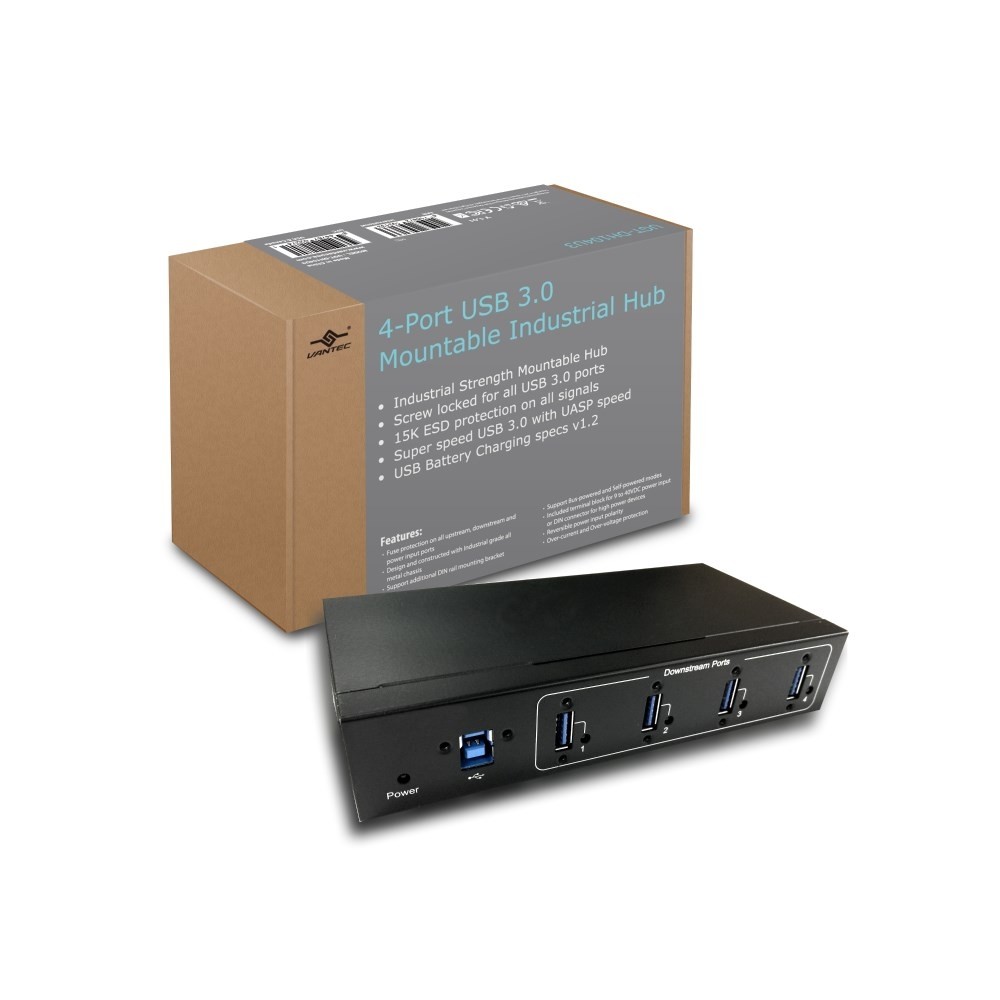

Vantec 4-Port USB 3.0 Mountable Industrial Hub
Price: US $39.99
Vantec 4-Port USB 3.0 Mountable Industrial Hub
The 4-Port USB 3.0 Mountable Industrial Hub is design for USB connectivity in hush environment. Ready to take on 15K ESD, Fuse protection, and screw lock USB cable connection, this hub comes with mounting kit for mounting on wall or other accessible location. The Power input uses industrial standard terminal block with different DC power input for flexible power environment. The housing is made with industrial grade metal casing for strength and durability. With this USB Hub running at Super speed and UASP pass thru will greatly speed any data USB 3.0 compliant with added speed using UASP protocol
Supports USB Battery Charging specification v1.2
Support screw locked USB 3.0 cable on all upstream, and downstream USB ports
15K ESD protection on all signals, power pins of all up/downstream and power input ports
Fuse protection on all upstream, downstream and power input ports
Design and constructed with Industrial grade all metal chassis
Support additional DIN rail mounting bracket
Support Bus-powered and Self-powered modes
Included terminal block for 9 to 40VDC power input or DIN connector for high power devices
Reversible power input polarity
Over-current and Over-voltage protection
Clear LED Status Indicator for power and individual USB ports
Backward compatible with USB 2.0 and 1.x specification and devices
No Drivers needed, Plug and Play
Support All newer OS that have USB 3.0 support
Model: UGT-DH104U3Device Support: USB 3.0 Type A (backward compatible with USB 2.0 and 1.1)Down Stream Ports: 4, USB 3.0 Type A portsUp Stream Port: 1, USB 3.0 Type B portPower Input: Terminal block for 9 to 40VDC Power Input or Barrel ConnectorDimension: 6.2 x 3.2 x 1.3 inches / 158 x 80 x 32 mmWeight: 11.6 oz. / 330gOperating Temp: 0°C to 70°C (32°F to 158°F)Storage Temp: -55°C to 125°C (-67°F to 257°F)Humidity: 10%~90% RH (Non-condensing)System Requirements:Microsoft Windows 7, 8, 8.1 / Mac OS X 10.6 or Greater / Latest Linux OSUSB 3.0 Port preferred to get maximum speedWhat's Included: 4-Port USB 3.0 Mountable Industrial Hub, Screw lock USB cable (Type B to A), Wall Mounting Kit, Terminal Block, Quick Installation Guide
