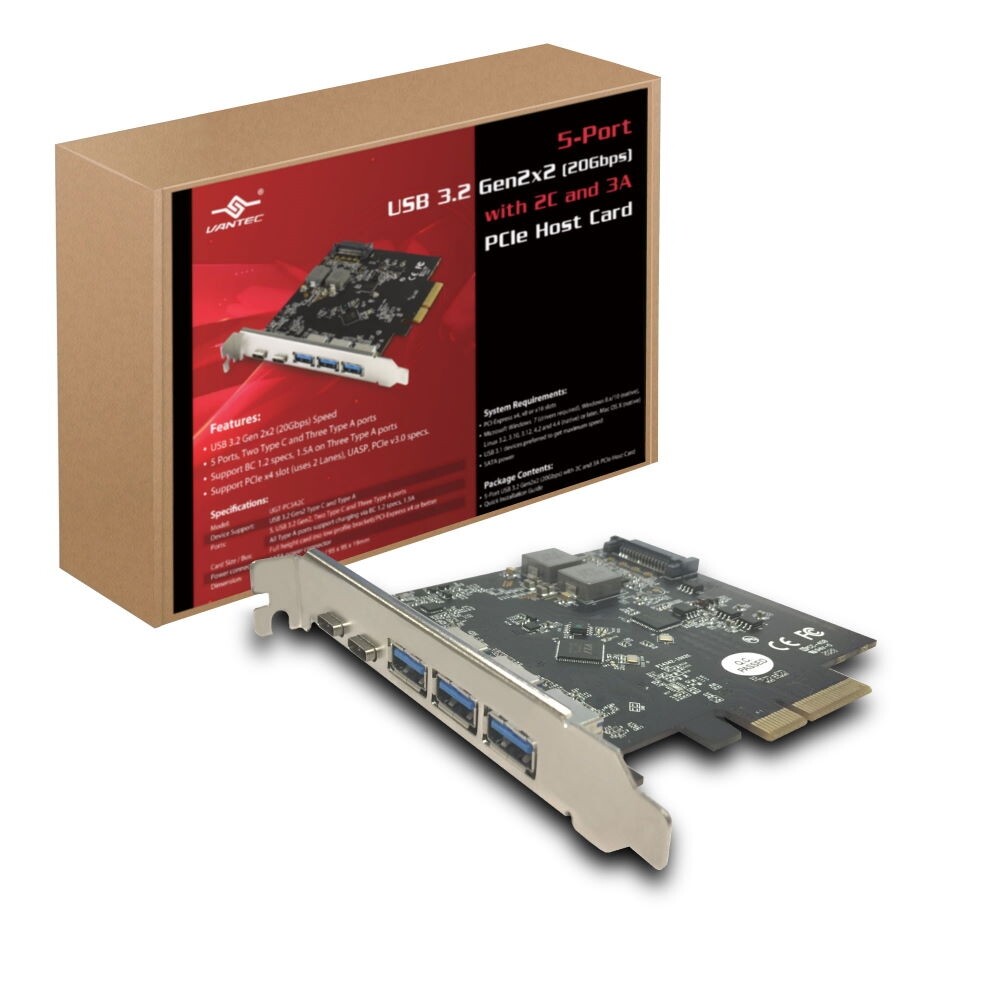

Vantec 5-Port USB 3.2 Gen2x2 (20Gbps) With 2C And 3A PCIe Host CardThe Vantec 5-Port USB 3.2 Gen 2x2 (20Gbps) 2C 3A PCIe Host Card is designed to offer the latest in USB 3.2 Technology. It provides the flexibility of Two Type C and Three Type A ports all on one card. This design links the PCIe Gen3 x2 from the PCIe Bus to all five ports. All three Type-A ports support Battery Charging Specs 1.2 with 1.5A per port. Each port is capable of a theoretical speed of 10Gbps which is twice the speed of older USB 3.0(5Gbps). This speed enables you to access/transfer data extremely faster, and with backward compatibility to older USB 3.0, USB 2.0 or USB 1.1. - USB 3.2 Gen 2x2 (20Gbps) Speed to give you the Maximum File Transfer or Backup.
- Support PCIe x4 slot(use 2 lanes) interface with wider lanes for speed and large amount of data.
- Support UASP Devices on both ports for extra boost in speed when using latest OS.
- Support PCI-Express 3.0 specifications for increase speed thru the PCIe Bus.
- Support for Windows and Linux OS for latest Technology
- USB 3.1 Type C Port for Newer devices and Type A for Compatibility with older USB 3.0 and 2.0.
- Full height PCIe x2 (requires x4 slot)
- Backward compatible with legacy USB 3.0, 2.0 and 1.1
- Compliant with extensible Host Controller interface specification Revision 1.1
- Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
- Supports PCI Express® Card Electromechanical Specification Release 2.0
- Supports PCI Bus Power Management Interface Specification Release 1.2
- Support driver on Windows 7 and native drivers within Windows 8/8.1/10
- Support Linux kernel 3.13.0 & UGT-PC3A2C
Device Support: USB 3.2 Gen2 Type C and Type A
Ports: 5, USB 3.2 Gen2, Two Type C and Three Type A ports
All Type A ports support charging via BC 1.2 specs, 1.5A
Bus Technology: PCI-Express x2 (uses PCIe x4 slot)
Power connector: SATA power connector
Dimension: 3.7 x 3.7 x 0.7 inches / 95 x 95 x 19mm Environmental Operating Temperature: 5 ℃ to +50℃Operating Humidity: 20% to 80 % RH (no condensation)Storage Temperature: -20℃ to +60℃Storage Humidity: 10% to 90% RH (no condensation)System Requirements:
- PCI-Express x4, x8 or x16 slots
- Microsoft Windows 7 (drivers required, on CD or latest drivers online).
Windows 8.x/10 (native, no drivers required),
Linux 3.2, 3.10, 3.12, 4.2 and 4.4 (native) or later
- USB 3.1 devices preferred to get maximum speed
- SATA power, not Low Profile
Package Contents:
- 5-Port USB 3.2 Gen2x2 (20Gbps) with 2C and 3A PCIe Host Card
- Quick Installation Guide
 |
|
