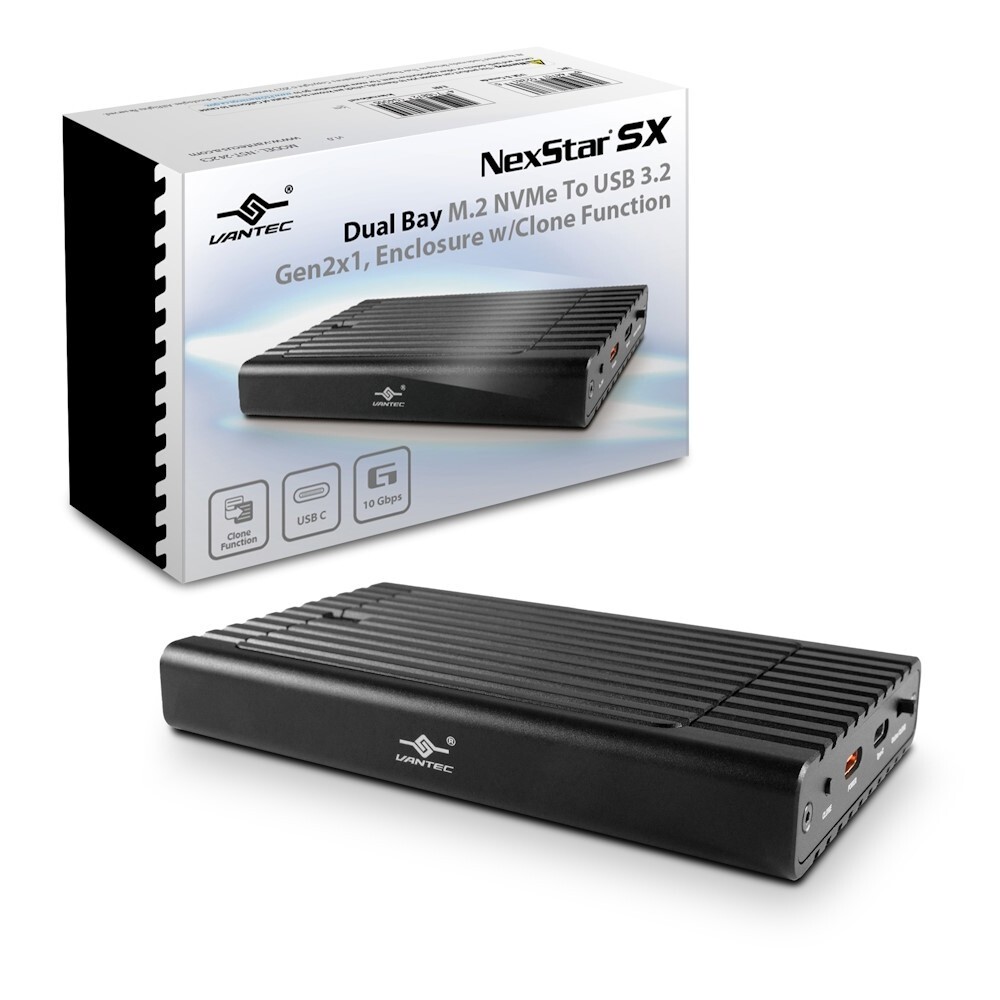

Vantec NexStar SX, Dual Bay M.2 NVMe To USB 3.2 Gen2x1, Enclosure W/Clone Function This Enclosure is designed for Two M.2 NVMe Modules with a Total Capacity of 32TB (16TB per bay max, as of this writing, maybe more later). It works as two individual drives each with its storage. It can be used as a clone enclosure to clone from Source to Target while online. Designed to be fast using native USB C with USB 3.2 Gen2x1, 10Gbps speed. Two marked USB C ports for Power/Data and Power Only to supplement your NVMe power requirement. The whole enclosure is designed to be the heatsink for both of the M.2 NVMe in the Enclosure, no drivers are required, Plugged and Ready, and supports all current OS available on the marketplace. Features: - Access data on both M.2 NVMe as individual drive
- Online Cloning NVMe to NVMe
- Designed for Backup purposes and/or Secondary Storage
- Compatible with all M.2 NVMe of sizes 2230, 2242, 2260, 2280
- Use as a Data recovery tool and/or Transfer data between drives
- Uses USB 3.2 Gen2x1, native USB C, USB C to C/A cable
- USB power port for additional power for your High powered NVMe module
- No driver needed, plugged & ready
- Compatible with All OS with USB support, UASP, BOT, TRIM
Model: NST-242C3USB Connector: Native USB C, USB 3.2 Gen2x1 (USB reversible connector)Device Connectors: Two M.2 NVMeM.2 Size Support: 2230, 2242, 2260, 2280Drive Capacity: **16TB max per M.2 NVMe connectorPower Supply: **Bus Powered (power requirement based on user M.2 NVMe module)Material: AluminumItem Dimensions (L x W x H): 4.72 x 2.77 x 0.68 inches / 119.8 x 70.3 x 17.25 mmItem Weight: 7.29 oz. / 206.75 gCable Type and length: USB C to C/A, 15.7 inches / 400 mmOS Support: Windows 10/11, Mac OS X 10.10 or higher, and Linux OSPackage Dimensions (L x W x H): 140 x 3.54 x 1.77 inches / 140 x 90 x 45 mmPackage Weight: (11 oz /327 g)** NOTE: Tested maximum capacity. The User total M.2 NVMe power requirement will dictate how much power is required from your USB port. If the user’s USB port cannot provide enough power to this enclosure, it is necessary to use the provided USB C Power Port to supplement power. The total power required by the user M.2 cannot be more than what your USB port can provide.System Requirements: - USB C or USB Type A port
- Newer OS like Windows 10/11, OS X 10.10, latest Linux
Package Contents: - 1 x Dual Bay M.2 NVMe To USB 3.2 Gen2x1, Enclosure
- USB C to C/A cable (Power and Data)
- USB C to USB A (Power ONLY cable)
- Quick Install Guide
Environmental:Operating Temperature 0 ℃ to +45℃Operating Humidity 10% to 85 % RH (no condensation)Storage Temperature -10℃ to +70℃Storage Humidity 5% to 90% RH (no condensation)  |
|
