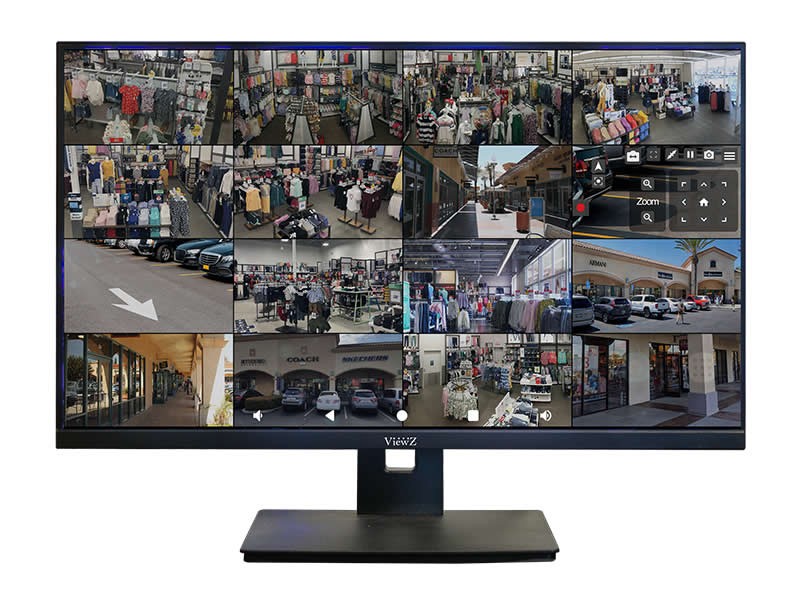

for All Products ViewZ VZ-24IPM 24in Full HD IP Monitor / 16-Channel 1080p Multiview / Android Manufacturer:ViewZ SKU:VZ-24IPM Condition:New Warranty:3 Years
The VZ-24IPM is a 23.8 inch Full HD IP-enabled monitor that streams live 1080p video directly from IP cameras and VMS platforms. It runs an onboard Android operating system and supports native app installation for clientless viewing. The unit is designed to replace a dedicated PC for remote monitoring tasks while maintaining continuous operation.
The monitor supports sequential viewing and a 16-channel 1080p multiview layout selectable via the built-in ViewZ app. It is compatible with over 22,000 IP camera models and verified with major VMS providers. NDAA compliance and a 3-year warranty address procurement and lifecycle concerns.
Display performance includes 1920 x 1080 at 60Hz resolution, 250 cd/m2 brightness, 1000:1 contrast ratio and a 178 degree viewing angle. The internal Android board provides an octa-core CPU, 8 GB DDR4 RAM and 32 GB NAND storage for responsive on-screen navigation and app performance. The monitor is engineered for 24/7/365 operation and includes auto power and source recovery.
Connectivity includes one 10/100 Ethernet port, Micro SD slot, USB Type-A 2.0, USB Type-A 3.0 and USB Type-C, plus HDMI I/O for test and pass-through scenarios. The unit is verified to integrate with Exacq, Genetec, Avigilon, Milestone and additional VMS applications. External storage and networking options extend recording and remote management capabilities.
Typical use cases include security operations centers, remote guard stations, retail loss prevention and transportation control rooms where continuous multi-camera monitoring is required. The compact footprint and VESA 100x100 support allow deployment on desks, walls or rack-adjacent mounts. Sequential mode and flexible multiview options help operators focus on priority feeds while keeping situational awareness across the system.
Installation is straightforward using the included height-adjustable stand or VESA mount patterns for wall mounting. The monitor supports Micro SD recording and USB storage expansion for local capture and playback. Built construction supports continuous operation and the 3-year parts and labor warranty ensures professional support and Size23.8"Max Resolution1920 x 1080 at 60HzPixel Pitch0.2745 mm x 0.2745 Ratio1000 : 1Aspect Ratio16 : 9Viewing Angle (H/V)178°/178°Display Color16.7 MillionResponse Time< 14 msEthernet 10/1001Micro SD In1USB 2.0 In (Type-A)1USB 3.0 In (Type-A)1USB In (Type-C)1HDMI In (Test Purpose Only)1HDMI Out1Audio Out1I/O (RESET)1Verified VMS APPsExacq, Genetec, Avigilon, Milestone, I3internationalSequential Viewing ModeAvailableMulti Channel Viewing Modes1 / 2 / 3 / 4 / 6 / 9 / 12 / 16Multi-Lingual LanguageEnglish, German, Spanish, French, Italian, Portuguese, NetherlanderOutline Dimension (W x H x D)21.31 x 16.2 x 1.53" / 541.4 x 411.7 x 39 mmNet Weight8.04 lbs / 3.65 kgGross Weight9.92 lbs / 4.5k gVesa100 mm x 100 mm / M4 x L8 mmAndroid OSVer. 12.0CPUOcta Core, Quad Cortex-A76 & A55, 2.1 GHzRAM8 GB DDR4Storage32 GB (NAND-Flash)External StorageMicro SD up to 32GB / USB 2.0 up to 2TBWiFi + BTIEEE 802.11 a/b/g/n/ac/ax, Dual WiFi antenna, Bluetooth BT5.2, Bluetooth v2.1+EDRTransmitter – IR Remote ControlYesPower – Electrical RatingsDC 12V, 2A(AC100 ~ 240V[50/60Hz])Power – Consumption24 wWarranty – Parts / Labor3 Year / 3 YearOperating Temperature14 ~ 122°F / -10 ~ 50°CCompatible Mounts – WallVZ-WM05, VZ-WM11, VZ-AM02-ACompatible Mounts – PoleVZ-SCM-SQ, VZ-SCM-SCompatible Mounts – CeilingVZ-CMKiT-01RegulationFCC(A), CE, NDAA OUR PERKS Great Prices and
