The VisionTek DLX4 2242 NVMe SSD, equipped with Opal 2.0, offers an ideal blend of high performance and robust security for compact systems. Boasting PCIe Gen4 x4 speeds up to 5200MB/s read and 4775MB/s write, along with integrated Opal 2.0 hardware-based self-encryption, it caters to enterprise environments, IT professionals, and power users seeking both speed and data protection. This single-sided M.2 2242 drive incorporates SLC caching, LDPC ECC, and AES 256-bit encryption, supported by an MTBF rating of 1.5 million hours. Whether you're constructing a secure mobile workstation or enhancing a compact PC, the DLX4 2242 delivers superior NVMe power with advanced privacy features.

• About Us
• Payment Info
• Shipping Info
• Customer Support
• response

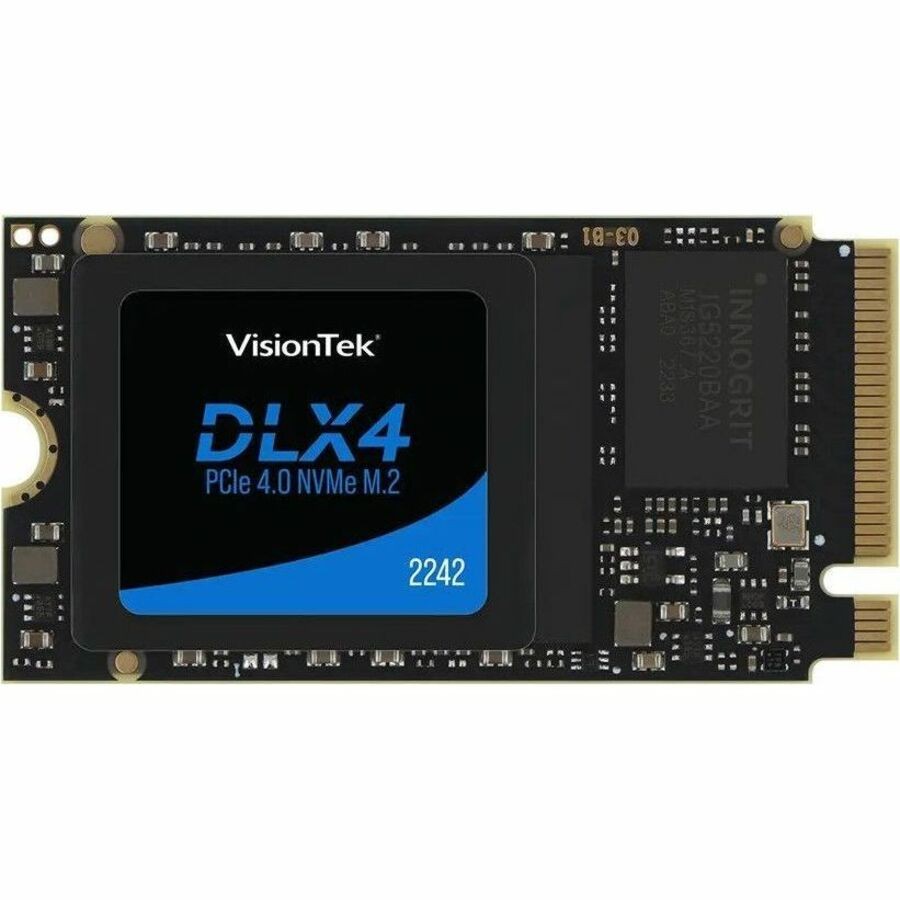

VisionTek DLX4 1TB 2242 M.2 PCIe 4.0 x4 SSD (NVMe) Opal 2.0 SED 901703 Brand: VisionTek UPC: 0810078053163 Mfr Part #: 901703

General Information

Powered by the Innogrit IG5220 controller, VisionTek DLX4 2242 M.2 NVMe SSDs offers speed and reliability for professionals. Features Opal 2.0 hardware based Self-Encrypting Technology?ensuring that your data remains secure and private.?With read speeds up to 5200MB/s and write speeds up to 4775MB/s take your storage to the next level.

• Max Sequential Reads up to 5200MB/s
• Max Sequential Writes up to 4775MB/s
• Max 4K Random Reads up to 370K IOPS
• Max 4K Random Writes up to?288K IOPS?

• Single-Level Cell (SLC) Caching: Enhances performance by temporarily storing frequently accessed data
• Low-Density Parity-Check (LDPC) Error Correction Code (ECC): Ensures data integrity and reliability
• Advanced Encryption Standard (AES) 256-bit Encryption: Provides robust data security
• Global Wear Leveling: Distributes data evenly across the drive to prolong its lifespan
• Static Data Refresh Technology: Periodically refreshes data to prevent data loss due to charge leakage
• Data Shaping for Enhanced Endurance: Optimizes data layout to increase drive endurance
• Intelligent Garbage Collection Routines: Automatically frees up space for new data
• NVMe Deallocate Function Support: Allows the host to free up unused memory space on the drive
• Host Memory Buffer (HMB) Support: Utilizes system memory to improve performance
• S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) Support: Monitors and reports drive health and performance
• Optimized LDPC Engine: Improves error correction performance
• NVMe Protocol 1.4 Compliance: Ensures compatibility with the latest NVMe standards
• Restriction of Hazardous Substances (RoHS) Compliant: Meets environmental standards for hazardous materials

?

Technical Information Storage Capacity: 1 TB SSD Cache Capacity: 330 GB Encryption Standard: 256-bit AES

?

Drive Performance Maximum Read Transfer Rate: 5200 MB/s Maximum Write Transfer Rate: 4775 MB/s Random 4KB Read: 370000IOPS Random 4KB Write: 288000IOPS

?

Physical Characteristics Drive Type: Internal Form Factor: M.2 2242 Width: 0.9" Length: 1.7" Weight (Approximate): 0.25 oz

?

Warranty Limited Warranty: 5 Year
