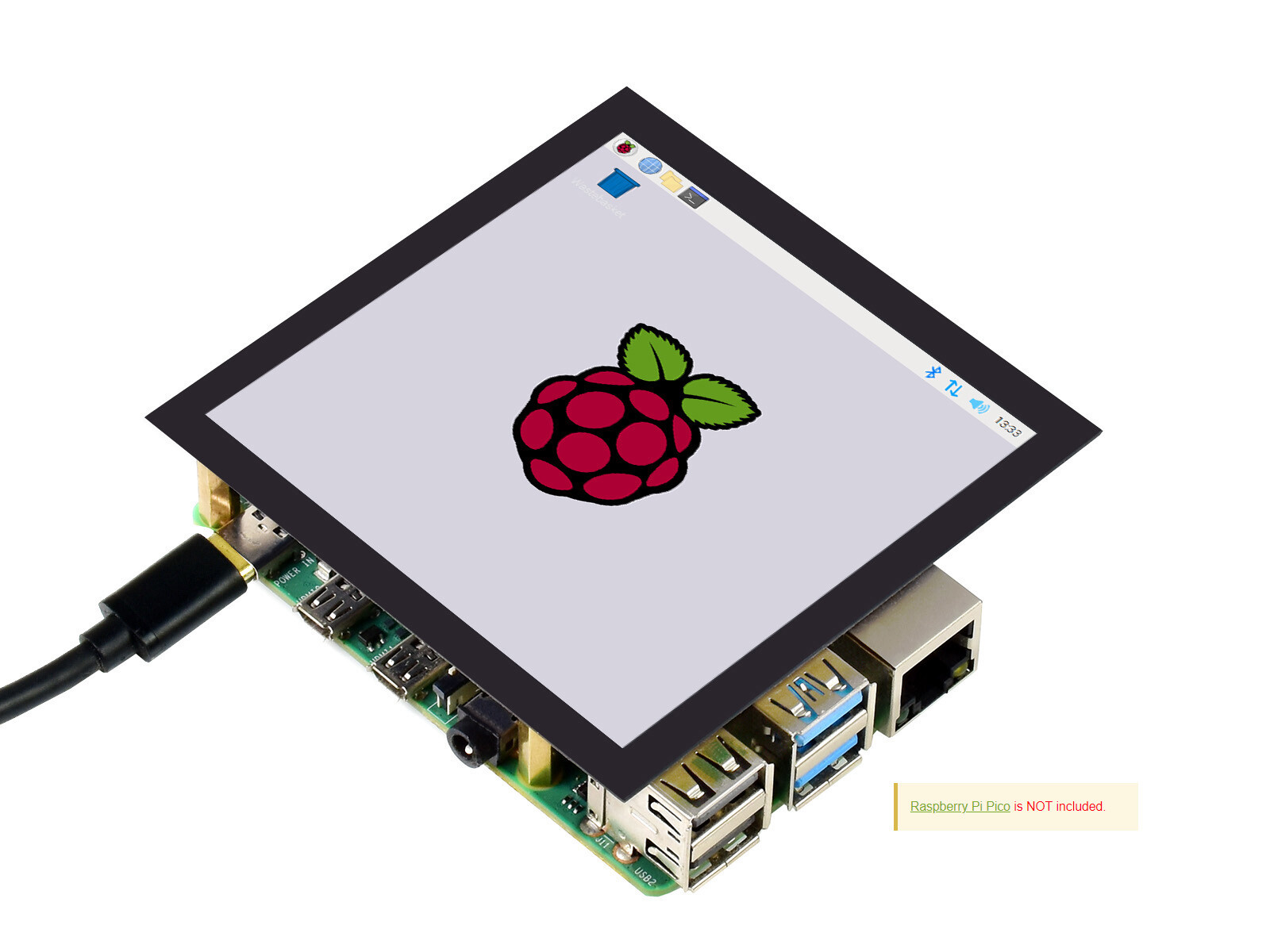

Waveshare 4inch Square Capacitive Touch Screen LCD (C) for Raspberry Pi DPI IPS
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Waveshare 4inch Square Capacitive Touch Screen LCD (C) for Raspberry Pi DPI IPS
Price: CN $113.47
4inch Square Capacitive Touch Screen LCD (C) For Raspberry Pi, 720×720, DPI, IPS, Toughened Glass Cover, Low Power Solution4" Square DPI Touch Display
  • Size4"
  • Resolution720×720
  • Display PortDPI666 (262K Colors)
  • Display PanelIPS
  • Viewing Angle170°
  • Touch TypeCapacitive
  • Touch Points5-Points
  • Touch PortI2C
  • Touch Panel TechFully Laminated
  • Touch PanelToughened Glass
Device & System Support
Raspberry PiBased on Raspberry Pi 40PIN GPIO header
Driven by Raspberry Pi DPI666 interface, up to 60Hz refresh rate
5-Points touch control through Raspberry Pi I2C interface
Supports systems like Raspbian, Kali, Ubuntu mate...

Supports future version which is backward compatible

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Appearance And Dimensions

PACKAGE CONTENT

Weight:0.079 kg

  1. 4inch DPI LCD (C) x1
  2. Screws pack x1
12
