DESCRIPTION

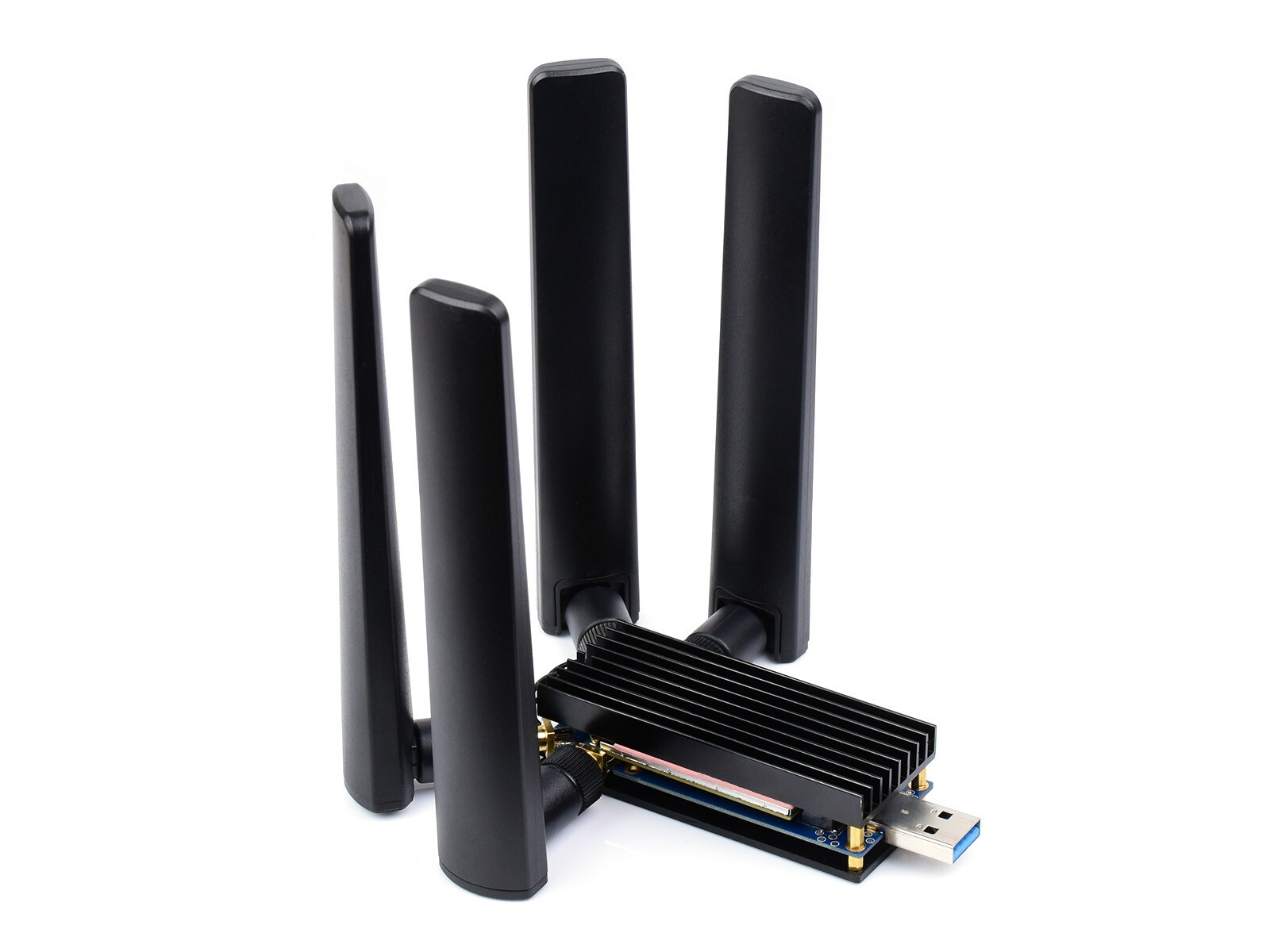

5G DONGLE Module, Quad Antennas, USB3.1 Port, Aluminum Alloy Heatsink, M.2 Key B Interface5G DONGLE MODULEM.2 TO USB 3.1 port

Support SIMCom & Quectel 5G Module

Features At A Glance

• Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom and Quectel 5G modules
• Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules
• USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network
• 4x SMA antenna connectors, easy to install the antenna
• Onboard SIM card slot for NANO SIM card
• Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
• PCB ENIG process, reserved multi slots and positioning holes for integration
• Comes with customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective and durable

Compatible With SIMCom / Quectel 5G Standard3GPP R153GPP R163GPP R153GPP R16Region / Providerexcept AmericasAmericasGlobal (except US)Global (except China)GlobalCHIPQualcomm Snapdragon X55Qualcomm Snapdragon X62Qualcomm Snapdragon X55Qualcomm Snapdragon X62FREQUENCY BANDSub-6Gn1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n795G NR NSA: n41, n77, n78, n795G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n795G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n795G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n795G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79LTE-FDDB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71LTE-TDDB34, B38, B39, B40, B41, B42, B43, B48B38, B39, B40, B41, B42, B43B41, B46, B48B34, B38, B39, B40, B41, B42, B43, B48LAA-B46WCDMAB1, B2, B3, B4, B5, B8B1, B5, B8B2, B4, B5B1, B2, B3, B4, B5, B6, B8, B19B1, B2, B4, B5, B8, B19GNSSGPS / GLONASS / BeiDou(Compass) / Galileo/ QZSS (RM500Q-GL and RM502Q-AE do not support this function)DATA RATESub-6G2.4 Gbps (DL) / 500 Mbps (UL)5G NR NSA:
2.1 Gbps (DL) / 900 Mbps (UL)5G NR NSA:
4.2 Gbps (DL) / 450 Mbps (UL)5G NR NSA:
4.2 Gbps (DL) / 900 Mbps (UL)5G NR SA:
2.5 Gbps (DL) / 600/650 Mbps (UL)5G NR SA:
5.0 Gbps (DL) / 650 Mbps (UL)5G NR SA:
3.4 Gbps (DL) / 550 Mbps (UL)LTE1 Gbps (DL) / 200 Mbps (UL)2.0 Gbps (DL) / 200 Mbps (UL)1.6 Gbps (DL) / 200 Mbps (UL)UMTS42 Mbps (DL) / 5.76 Mbps (UL)SOFTWARE FUNCTIONSOperating protocolsTCP / UDP / FTP / HTTP / HTTPS / PING / SMSDial UpRNDIS, NDIS, PPP, MBIMFirmware upgradeSupports firmware upgrade via USB portHARDWARE SPECIFICATIONSSIM Card1.8V/2.95VAntennaFor 3G/4G/5G/GNSS4 × IPEX-4 connectorsPower Supply3.135~4.4V3.135 to 4.4 V, 3.7 V typicalForm FactorM.2Dimensions42.0 × 30.0 × 2.3mm52.0 × 30.0 × 2.3mmNote: For reference only, 5G module is not included. If used with other modules, actual testing is required to confirm pin compatibilityMultiple Size Compatibility

Compatible With 3042 / 3052 Form Factor

Connection Examples

Supports Directly Connect Or Access Via The USB Cable To Windows PC, Raspberry Pi 4B/3B+,
CM4-IO-BASE-A/B And Jetson Nano Series

connecting with Raspberry Pi 4B

Connect to PC with USB cable

Connect to Jetson Nano

for reference only, the modules in the pictures are not included.
Multi System Support, Easy To Use

Supports Windows/Linux

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

Aluminum Alloy Heatsink

Effective Heat Dissipation For 5G Module, Protect Your HAT At The Same Time

PACKAGE CONTENT

1. USB TO M.2 B KEY x 1
2. Aluminum Alloy case (top and bottom) x 1
3. Antenna x 4
4. IPEX adapter cable x 1
5. USB Type-A extension cable x 1
6. SMA Protective Cap x 4
7. Thermal tape x 1
8. Screws pack x 1
