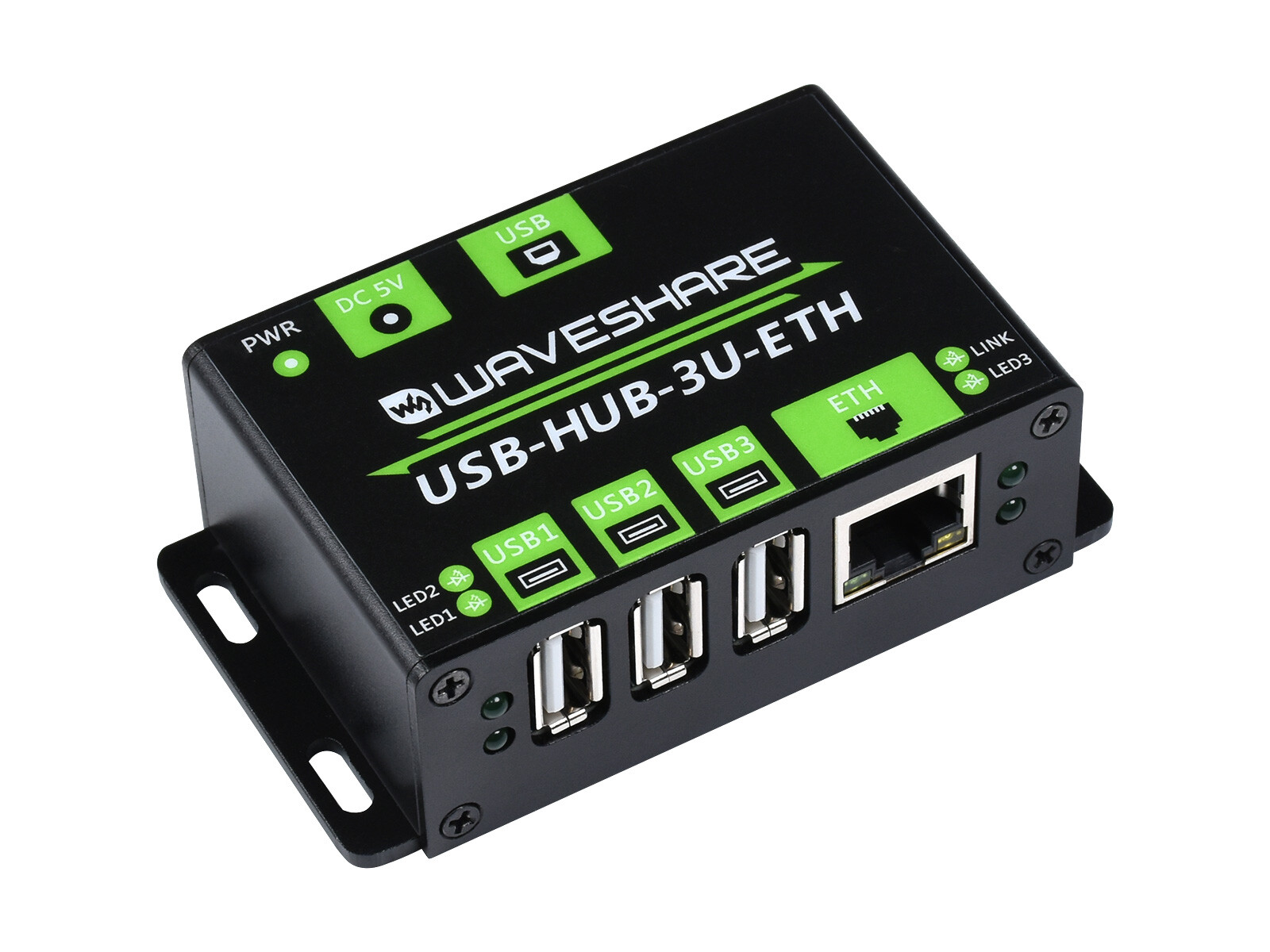

Waveshare Industrial Grade Multifunctional USB HUB Extending 3x USB ports

Price: CN $27.83

DESCRIPTION
Industrial Grade Multifunctional USB HUB, Extending 3x USB Ports + 100M Ethernet PortUSB-HUB-3U-ETH

3x USB + 100M Ethernet Connector

Suitable For Industrial/Office Environments Requiring Higher Level Device And Network Connection

Features At A Glance

3x extended USB ports, compatible with USB 2.0 / 1.1
Onboard RTL8152B Ethernet chip, adapting RJ45 network port, 10/100M adaptive
Industrial grade HUB chip, adopting STT technology, allows stable and smooth concurrent USB connections
ESD protection for each USB port, preventing electric surge damage and data loss
Onboard large-capacity electrolytic capacitor, effectively making the power supply output of the USB port more stable
Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
LED indicators for monitoring operating statuses of power supply, network port and USB ports
Industrial grade metal case, rugged & durable, with mounting holes for easy installation

SpecificationsUSB PORTUSB 2.0 Port x 3, theoretically up to 480MbpsNETWORKING10/100 adaptiveUSB HUB INPUToperating voltage:5V
connector:USB-BUSB OUTPUToperating voltage:5V@Imax:1.2A①
connector:USB-AEXTERNAL POWERpower supply voltage:DC 5V②
connector:DC jackOPERATING ENVIRONMENT-40℃ ~ 85℃OS SUPPORTMac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP① up to 1.2A Max output current for each USB ports, when there's enough power input
② comes with 5V 2A power supply, it is recommended to use another 5V 4A or above power supply for higher USB loads
Industrial Grade HUB Chip

STT Technology, 3x Concurrent USB Connections, Stable And Smooth

Large-Capacity Electrolytic Capacitors

More Stable Power Output Via USB Port

Multiple Protections, More Safe

Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...

Multiple OS Support, Plug & PlayApplication Environments

Suitable For Industrial/Office Environments Requiring Higher Level Device And Network Connection

Interface IntroductionOutline DimensionsPACKAGE CONTENT

Weight:0.16 kg
