Waveshare Luckfox PicoKVM Lightweight IP KVM Remote Management Tool

Price: CN $75.91

Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input and HID Signal Output for Device Control Luckfox PicoKVM Version options

Luckfox PicoKVM Base Lite
Basic version without eMMC

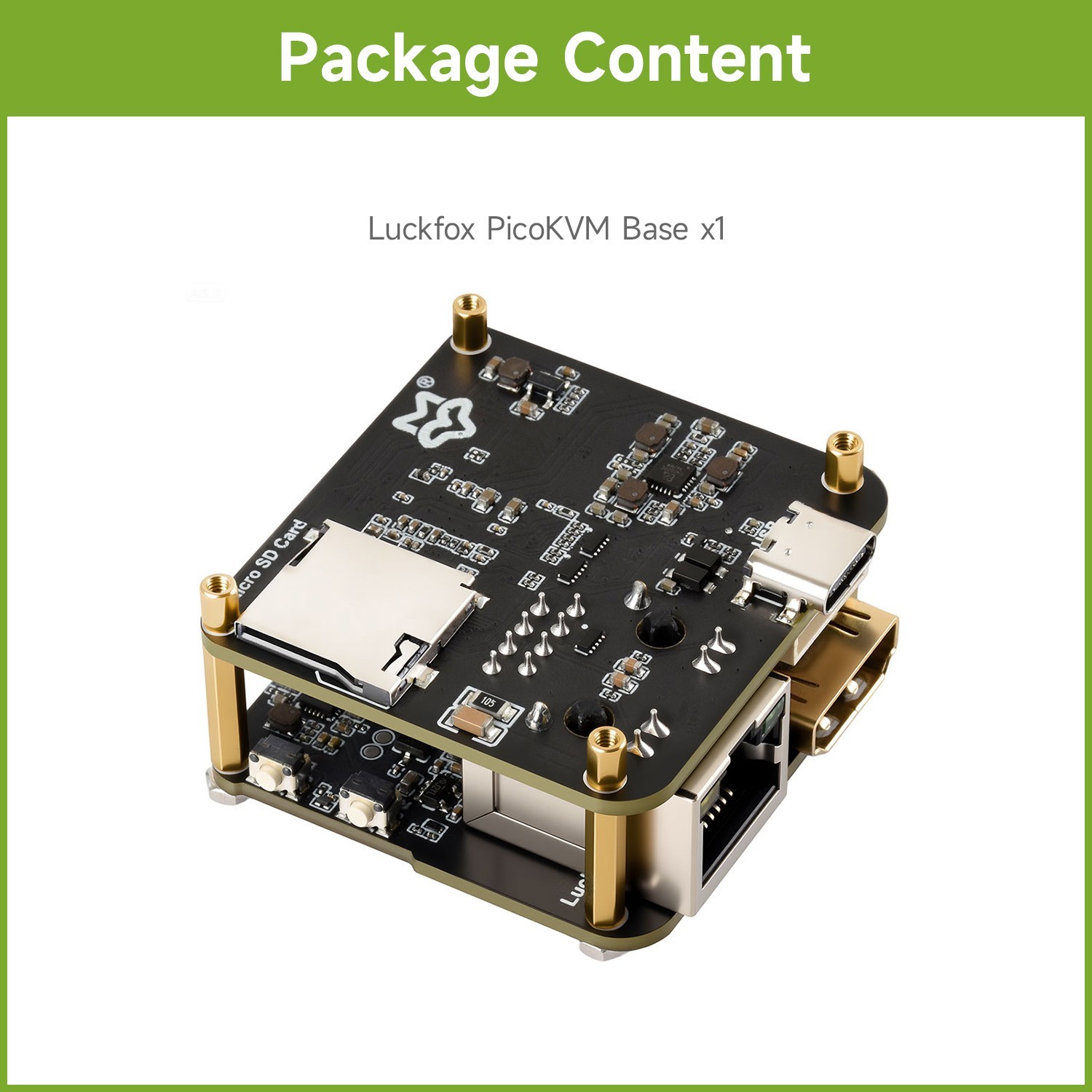

Luckfox PicoKVM Base
Basic version with 8GB eMMC

Luckfox PicoKVM Lite
Full version without eMMC
(with metal case and 1.54inch touch display)

Luckfox PicoKVM
Full version with 8GB eMMC
(with metal case and 1.54inch touch display)

Luckfox PicoKVM Lite Kit
Luckfox PicoKVM Lite Full version (with metal case and 1.54inch touch display, without eMMC) + Luckfox PicoKVM Ext Power Management Expansion Board

Luckfox PicoKVM Kit
Luckfox PicoKVM Full version (with 8GB eMMC, metal case, and 1.54inch touch display) + Luckfox PicoKVM Ext Power Management Expansion Board

Note: The Lite versions require a TF card (please purchase separately) for proper operation.

Features

The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.

Key Features:

Onboard HDMI input interface: recognized by PC as a display for video capture
Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
Onboard 100Mbps Ethernet port: for video and control signal transmission
1.54inch touch display: for displaying IP address, connection status, and system operating status
TF card slot: supports storage expansion
I/O expansion interface: for host power ON/OFF control

Specifications Product Luckfox PicoKVM Luckfox PicoKVM Lite Processor RV1106G3 Core 1 × [email protected] Memory 256M DDR3 Storage 8G eMMC TF card (please purchase separately) System PicoKVM Resolution 1080P@60fps Video Encoding H.264/AVC, H.265/HEVC Video Latency 80ms ~ 200ms Audio Transmission √ UEFI / BIOS Support √ USB Keyboard & Mouse Emulation √ USB Storage Emulation √ Wake-on-LAN (WOL) √ Web Terminal √ Custom Script √ TF Card Slot √ Serial Terminal 1-Ch Power Control GPIO control Ethernet 100Mbps LCD Display 1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full versions) Power Input Type-C Outline Dimension Luckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm) Luckfox PicoKVM Base: 44.00 × 42.00 × 23.60 (mm) Comparison with Commercial Remote Control Software Remote Power Control

Enables Physical-Level Remote Power Control with Luckfox PicoKVM Ext Expansion Board

* for reference only, the above host board is NOT included.
Please purchase the Luckfox PicoKVM Ext Expansion Board separately or choose the Luckfox PicoKVM Kit.

Function Demonstrations What's On Board

HDMI IN interface
for connecting to the HDMI output interface of the controlled host
I/O expansion interface
USB Type-C port
for power supply, simulating HID/UMS devices, and programming
10/100Mbps RJ45 Ethernet port with indicator
