Description
Waveshare RP2350-Zero Mini Development Board, Raspberry Pi Microcontroller Development Board, Based On Raspberry Pi Dual-core & Dual-architecture MicrocontrollerRP2350 MCU BoardZero
a Pico-like MCU board based on Raspberry Pi RP2350A
Castellated module, suitable for SMD applications
Board specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 4MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use
- Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 24 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Pinheader optionsC/C++, MicroPython support
Comprehensive SDK, dev resources, tutorials to help you easily get started
dual-core, dual-architecture
Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
29 × multi-function GPIO pins
configurable pin function, allows flexible development and integration
What's On Board
- USB Type-C connector
for program downloading, supports USB1.1 hosts and slave devices - ME6217C33M5G
Low dropout regulator, 800mA output (Max.) - BOOT button
Press it when resetting to enter download mode - RUN reset button
- WS2812
cool RGB LED
- P25Q32SH-UXH-IR
4MB NOR-Flash - RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency - RP2350A pins
10x solder points, 9 of which are GPIO pins - Debug pins
outline dimensionsResources & Services
Pico Product SelectionPRODUCTVoltage regulator chipUSBFlashLithium battery headerOnboard LCDRP2350 chip
Raspberry Pi Pico 2DC-DC, 800mAMicro USB4MB--
Type-C ver.LDO, 800mAType-C4MB--
ETH Port ver.LDO, 800mAType-C4MB-with Ethernet port
1.28inch Round LCD ver.LDO, 300mAType-C4MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD
1.28inch Round Touch LCD ver.LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS touch LCD
Plus ver.DC-DC, 2000mAType-C4MBSupport(allows recharging the battery and powering the board at the same time)-RP2040 chip
Raspberry Pi Pico WDC-DC, 3000mAMicro USB2MB-with WIFI
Raspberry Pi Pico WHDC-DC, 3000mAMicro USB2MB-with WIFI
Raspberry Pi PicoDC-DC, 800mAMicro USB2MB--
Raspberry Pi Pico HDC-DC, 800mAMicro USB2MB--
Type-A ver.LDO, 500mAType-A4MB--
Mini ver.LDO, 800mAType-C2MB--
Tiny ver.LDO, 500mASeparate Type-C port adapter2MB-Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.LDO, 500mAType-C2MB-Onboard 5×5 RGB LED matrix
BLE ver.LDO, 300mASeparate Type-C port adapter2MB-Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC
ETH Port ver.LDO, 500mAType-C4MB-with Ethernet port
0.99inch Round LCD with case ver.LDO, 500mAType-C2MB-0.99inch IPS LCD, CNC metal case
1.28inch Round LCD ver.LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD
1.28inch Round LCD with case ver.LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD, CNC metal case
1.28inch Round Touch LCD ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD
1.28inch Round Touch LCD with case ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD, CNC metal case
1.69inch Touch LCD ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.69inch Touch LCD
0.96 LCD ver.DC-DC, 1800mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)0.96inch IPS LCD
Plus ver.DC-DC, 1800mAType-C4MB/16MBSupport(allows recharging the battery and powering the board at the same time)-
DVI port ver.LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)Onboard DVI interface, TF card slot and PIO-USB port
Cam & LCD ver.-Type-C16MB-Onboard grayscale camera and 1.14inch IPS LCD displayPackage Content
Weight:0.002 kg

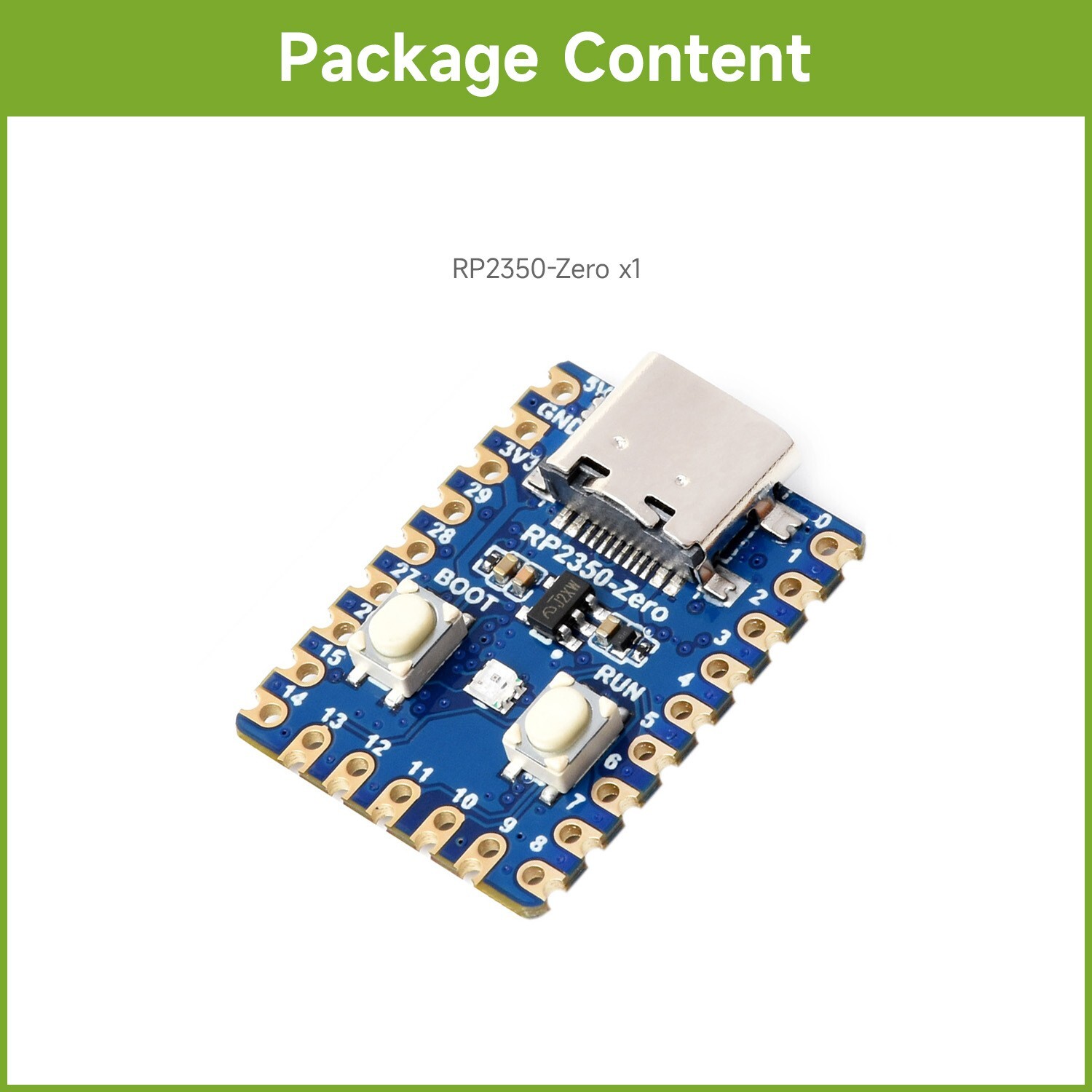

RP2350-Zero
RP2350-Zero x1
RP2350-Zero-M
RP2350-Zero with pre-soldered header x1
