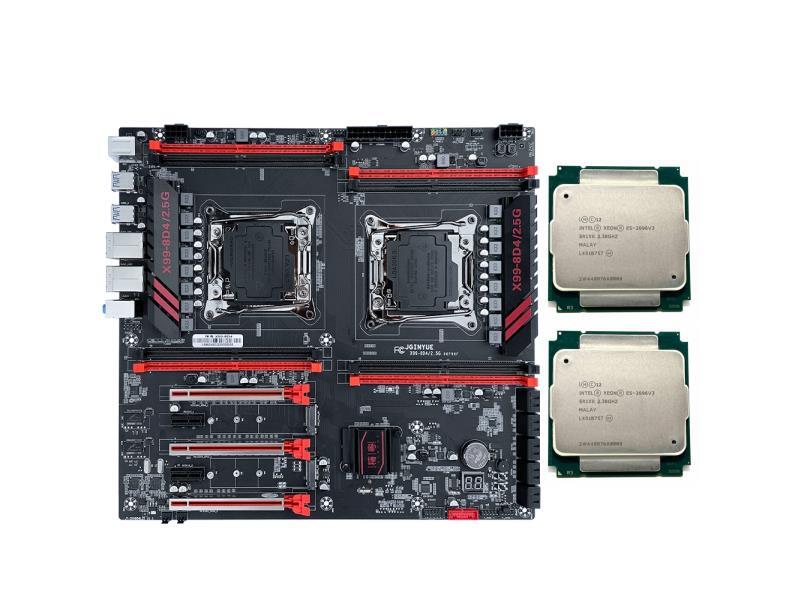

Package include:
1XJGINYUE X99-8D4/2.5G dual circuit board
2XIntel Xeon E5-2696v3 18c/36t 2.3GHz
Motherboard
Model: X99-8D4/2.5G dual circuit board
CPU slot: 2011-3 pin E5 V3 V4 series processor
memory slot: 8xDDR4
Memory frequency: 2133/2400/2666MHz Memory capacity: 256G (32Gx8)
Specification and size: E-ATX length 30x width 33cm
Fan pin: 2x4 pin 4x3 pin
M. 2 interfaces: 2xM.2 NVME protocol interface
PCIE slot: 3xPCI Express x16 2x PCI Express x1
U SB interface: rear USB3.0x4 USB2.0x4
Front USB3.0 pin x1 USB2.0 pin x2
SATA interface: 10xSATA3.0
Power supply slot: 24Pin x1/8Pin x2
Network card interface: 2x Intel 2.5G Network card interface
Power supply phase number: 8+8 phase Power supply
PCB thickness: 10 layers of PCB
Other interfaces: PS/2 keyboard x1 PS/2 mouse x1
CPU
CPU SpecificationsTotal Cores18Total Threads36Max Turbo Frequency3.60 GHzIntel® Turbo Boost Technology 2.0 Frequency‡3.60 GHzProcessor Base Frequency2.30 GHzCache45 MB Intel® Smart CacheBus Speed9.6 GT/s# of QPI Links2TDP145 WSupplemental InformationMarketing StatusDiscontinuedLaunch DateQ3'14Servicing StatusEnd of Servicing UpdatesEnd of Servicing Updates DateFriday | December 31 | 2021Embedded Options AvailableNoDatasheetView nowMemory SpecificationsMax Memory Size (dependent on memory type)768 GBMemory TypesDDR4 1600/1866/2133Max # of Memory Channels4Max Memory Bandwidth68 GB/sPhysical Address Extensions46-bitECC Memory Supported ‡YesExpansion OptionsScalability2SPCI Express Revision3PCI Express Configurations ‡x4 | x8 | x16Max # of PCI Express Lanes40Package SpecificationsSockets SupportedFCLGA2011Max CPU Configuration2TCASE76.4°CPackage Size52.5mm x 51mmAdvanced TechnologiesIntel® Turbo Boost Technology ‡2Intel® Hyper-Threading Technology ‡YesIntel® Transactional Synchronization ExtensionsNoIntel® 64 ‡YesInstruction Set64-bitInstruction Set ExtensionsIntel® AVX2Idle StatesYesEnhanced Intel SpeedStep® TechnologyYesIntel® Demand Based SwitchingYesThermal Monitoring TechnologiesYesIntel® Flex Memory AccessNoIntel® Identity Protection Technology ‡NoSecurity & ReliabilityIntel vPro® Eligibility ‡Intel vPro® PlatformIntel® AES New InstructionsYesSecure KeyYesIntel® OS GuardYesIntel® Trusted Execution Technology ‡YesExecute Disable Bit ‡YesIntel® Virtualization Technology (VT-x) ‡YesIntel® Virtualization Technology for Directed I/O (VT-d) ‡YesIntel® VT-x with Extended Page Tables (EPT) ‡Yes
