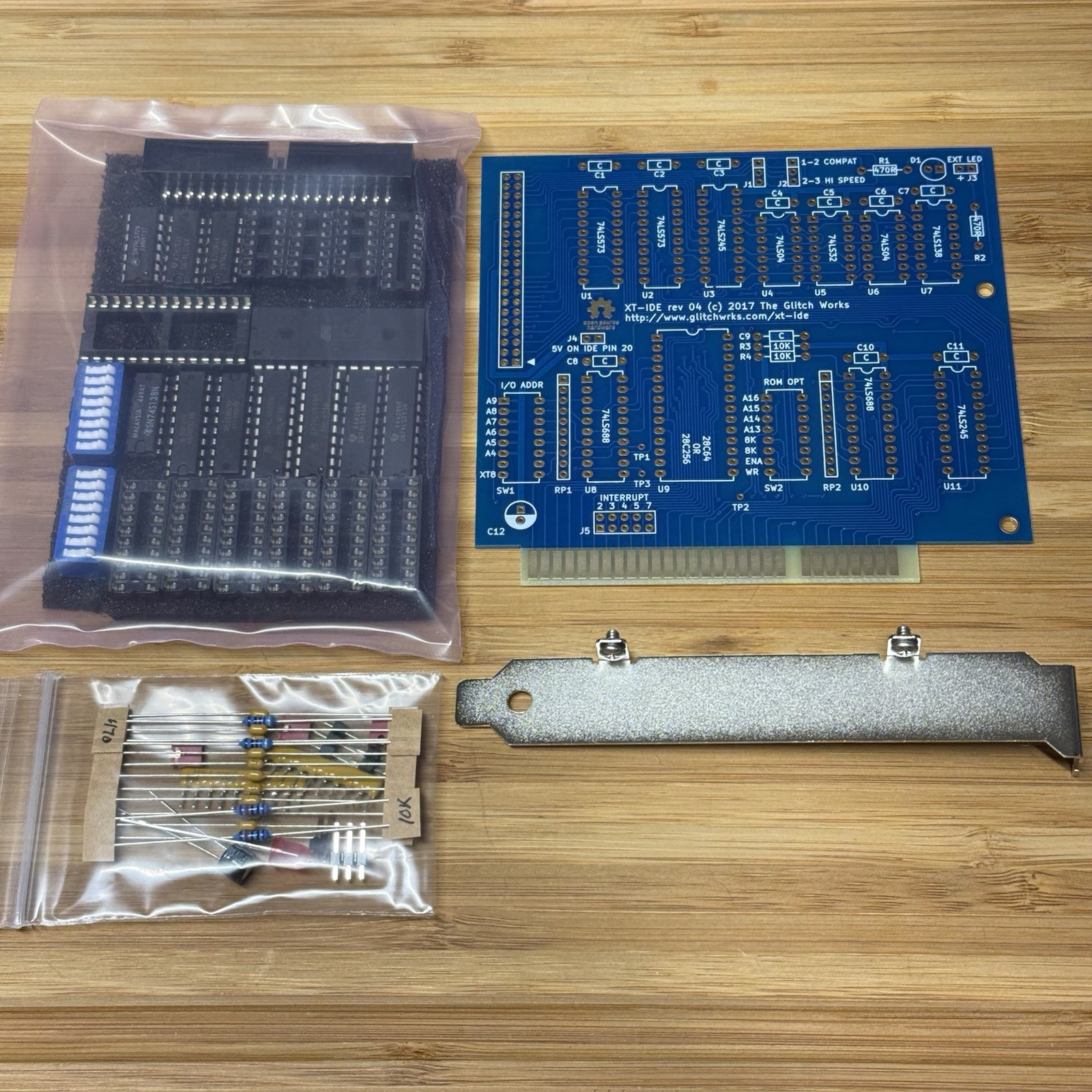

XT-IDE ISA 8-Bit IDE Controller DIY Kit XTIDE Including Bracket & Sockets
Price: US $49.95
Have some fun building your own XT-IDE! All of the components required to build an XT-IDE card are included.
No software is included in this kit. You will need to download the latest XT-IDE Bios from xtideuniversalbios and flash the EEPROM using the included utility.
No instructions are included in this kit. You can find more information on the Glitch Works GitHub project site.Thanks to Glitch Works for this project.
Here's a list of what is included in this listing:
1 x Glitch Works XT-IDE Gold Plated (ENIG) PCB Rev 4 2 x74573 IC's 2 x74245 IC's 2 x7404 IC's 1 x7432 IC 1 x74138 IC 2 x74688 IC's 1 x 28C64 EEPROM 2 x 8 position Dip Switches 2 x10K x 9 SIP resistors 2 x470R 1/4 Watt 5% resistors 2 x10K 1/4 Watt 5% resistors 1 x 5mm Red LED 1 x 10x1 Header (Cut to size for jumpers) 1 x 40 Pin IDE Header 11 x0.1 uF 50V axial capacitors 1 x100 uF 10V capacitor 3 x Jumper Shunts 6 x 20 Pin Dip Sockets 3 x 14 Pin DIP Sockets 1 x 28 Pin DIP Socket 1 x 16 Pin DIP Socket 1 x ISA Bracket 2 x Bracket Screws
