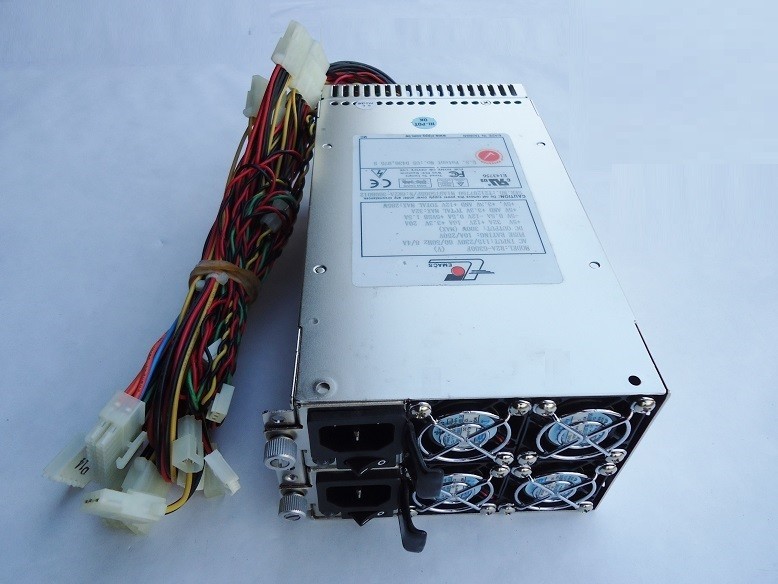

Zippy Emacs R2A-6300F 2U/3U 300W ATX Redundant Power Supply
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Zippy Emacs R2A-6300F 2U/3U 300W ATX Redundant Power Supply
Price: US $57.95

* Ship by next business day *


  • Input: 115-230V 60/50Hz, 8/4A
  • +5V: 32A , +12V: 16A , +3.3V: 20A , -5V: 0.5A , -12V: 0.5A , +5VSB: 1.5A
  • +5V, +3.3V and +12V total Max 285W
  • +5V and +3.3V total Max 32A
  • Connector: 20+4
  • Cooling: 4x40 mm DC Fan
  • EMI noise filter: FCC Class B, CISPR 22 Class B
  • Humidity: operating: 20%-95%, non-operating: 10%-95%
  • Remarks: 85% is normal condition and 95% is with special coating process
  • Remote on/off control
  • Safety: UL 1950, CSA 22.2 no/ 950, TUV IEC 950
  • Temperature range: operating: 0C ~ 40C.
  • Dim: 225mm(L) x 85mm(H) x 120mm(W)
