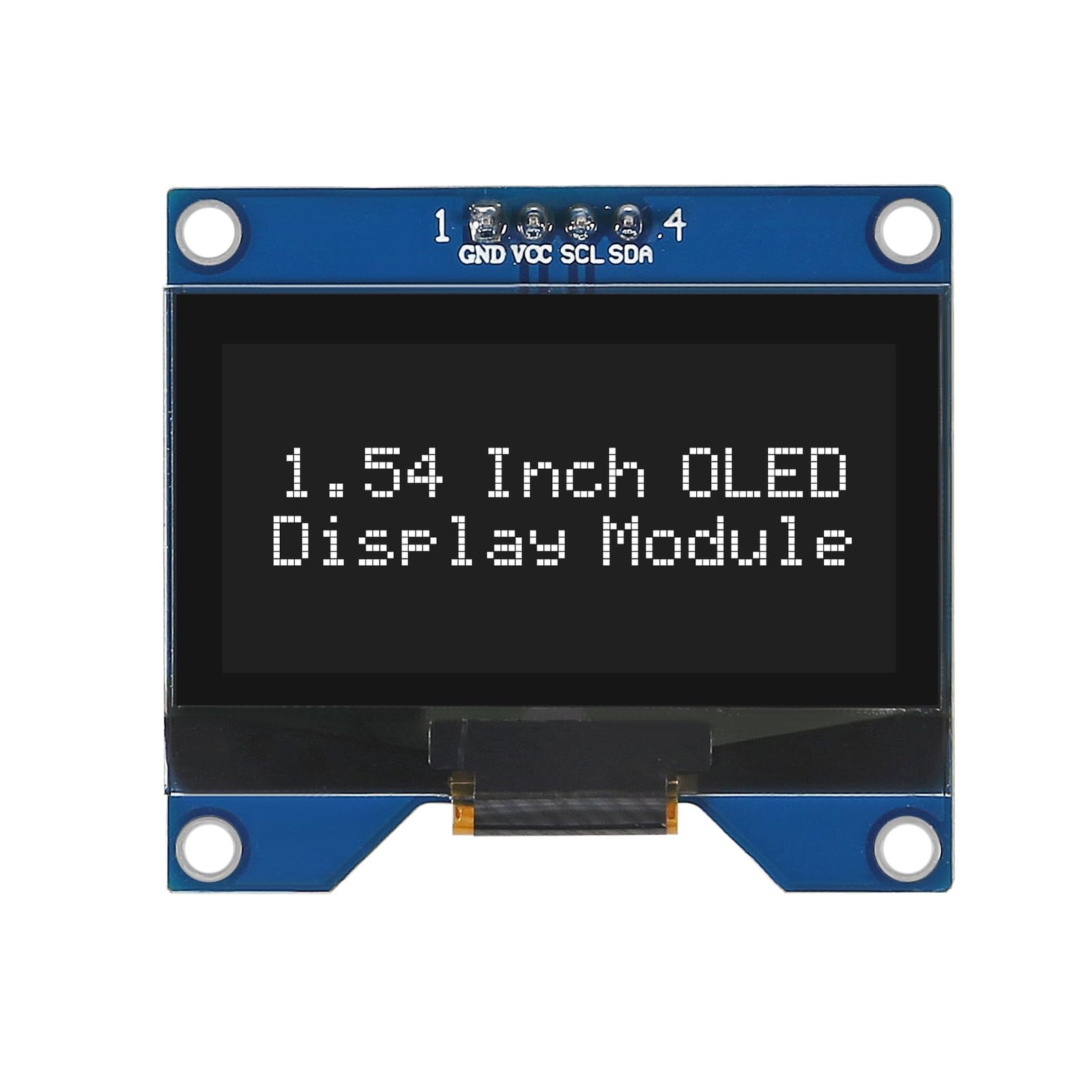

1.54 Inch White OLED Module 128x64 SSD1309 I2C Serial Display Board 4 Pin
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
1.54 Inch White OLED Module 128x64 SSD1309 I2C Serial Display Board 4 Pin
Price: US $17.61
1.54 Inch OLED Module 12864 128x64 SSD1309 Driver IIC I2C Serial Interface Self-Luminous Display Board for Raspberry Pi 4 Pin White🛍 Product Details

Specification:
Item Type: 1.54 Inch OLED I2C IIC Display Module
Resolution: 128 x 64(Pixel)
Driver IIC: SSD1309, compatible with SSD1306
Interface: SPI interface I2C interface
Drive Voltage: 3.3V-5V
Display Color: Blue/White

Features:
OLED self-luminous, no backlight
High resolution: 128x64 (same resolution as 12864, high PPI)
Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display)
Ultra-low power consumption: normal display 0.06w (far lower than TFT display)
Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips
The IIC interface only needs 2 IOs to light up easily

Applications:
MP3, MP4, watch. Head-mounted displays. Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices!

Package Included: 1pcs 1.54 Inch OLED I2C IIC Display Module(with protective box)

🌟 Key Features
    • 1.54inch OLED Display: Resolution: 128 x 64 Pixel, View angle: > 160°, Support voltage: DC 3.3V-5V Power consumption: 0.04W during normal operation, full screen lit 0.08W.
    • Embedded Driver IC: SSD1309, Communication: I2C/IIC Interface, only need 2 I/O ports.
    • Self-luminous Design: No backlight is required, the display can self-luminous; It has high contrast, bright and crisp dots, even tiny fonts quite readable.
    • There are no fonts embedded in the OLED controller, users can create fonts through the font generation software.
    • Application:1.54 inch OLED module supports many chips: compatible with R3 board and Mega, for Raspberry pi, 51 MCU, STIM 32, etc.
