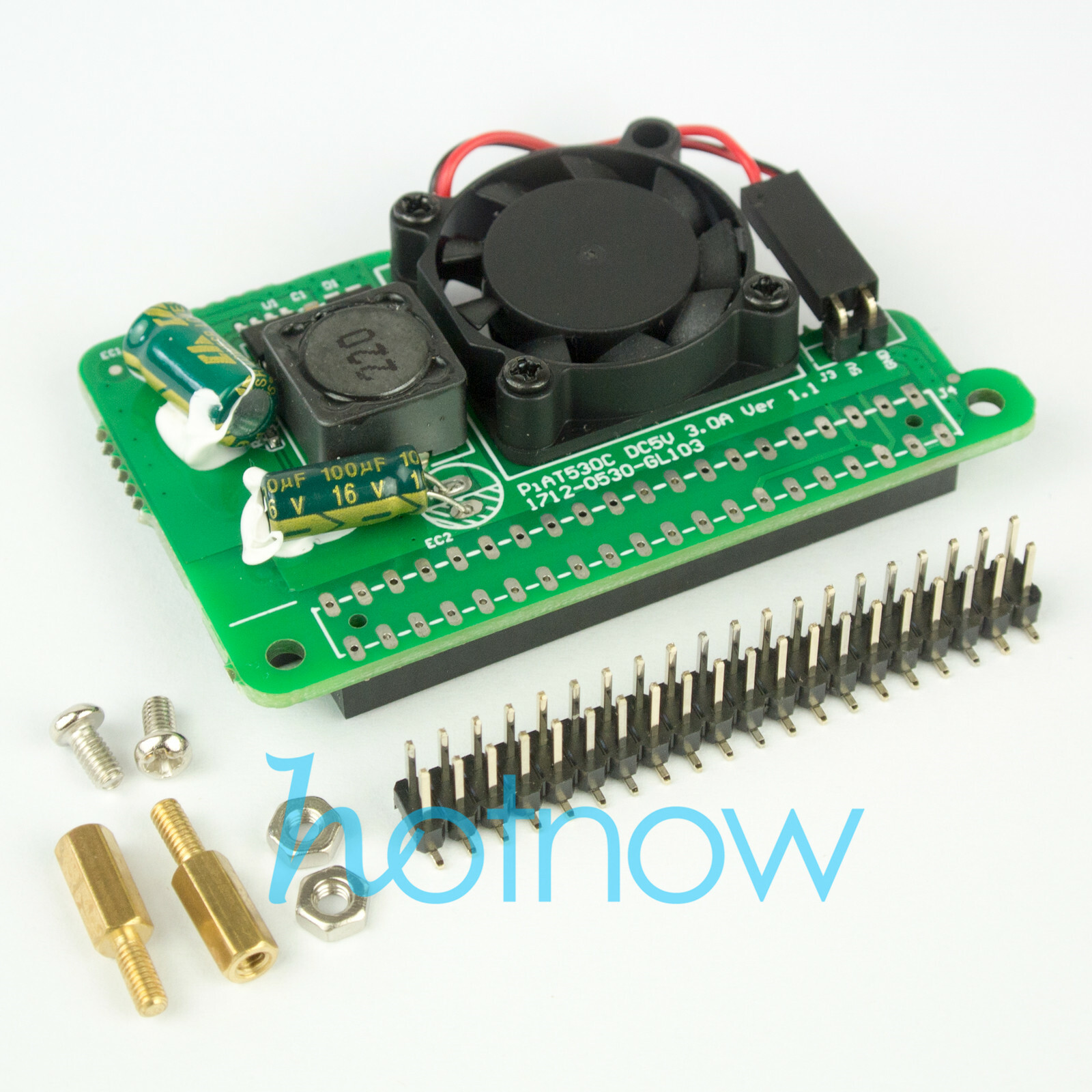

forRaspberry Pi 4B 3B+(3B Plus)
Maximum. 17.5Watt DC5V 3.5A
Compatible unsolicited Passive PoE Switch

Note:

The product must be used in conjunction with a Raspberry Pi 4B 3B+ and a PoE switch (or PoE injector)

The Poe Hat is designed with a non-isolated power supply. Make sure you don't need this feature before you buy it and it won't affect you in any other ways.

Output power Max.12Watt (DC5V2.5A) when used with the IEEE802.3af standard PoE switch(or802.3af PoE injector)

Output power Max.17.5Watt (DC5V3.5A) when used with the IEEE802.3at standard PoE switch (or 802.3atPoE injector)
Output power Max.17.5Watt (DC5V3.5A) when used with the DSLRKIT Non-standard 48V~52V Passive PoE switches (or 48V~52V Passive PoE injector)

The Poe Hat can power The Raspberry Pi by one ethernet cable, it do not the separate power adapter. But you also need to have a POE switch(or POE injector) to make it work.

The POE HAT integrates cooling fan for better cooling effect.

In order to limit the HAT height for use in PI Cluster, the GPIO Header is not installed. But it comes with a GPIO Header that you can solder by yourself.

Note: The Poe Hat is designed with a non-isolated power supply. Make sure you don't need this feature before you buy it and it won't affect you in any other ways.

Support 48V~57V Passive Power Over Ethernet PoE Switch
Support 48V~57V Passive Power Over Ethernet PoE injector

Isolation: NOT
Power Input: DC38~57V

Storage Temperature:-30℃ ~ 80℃

2x20pins GPIOHeader x1

M2.5 NUT x2

M2.5 Screw x2
