Zombie Components LLC Sylmar, California ASUS P6T6 WS Revolution Motherboard with Intel Core i7-920 and 12 GB RAM P6T6 WS REVOLUTION LGA 1366 · Intel X58 · i7-920 2.66 GHz · 12 GB DDR3 · heat sink and fan

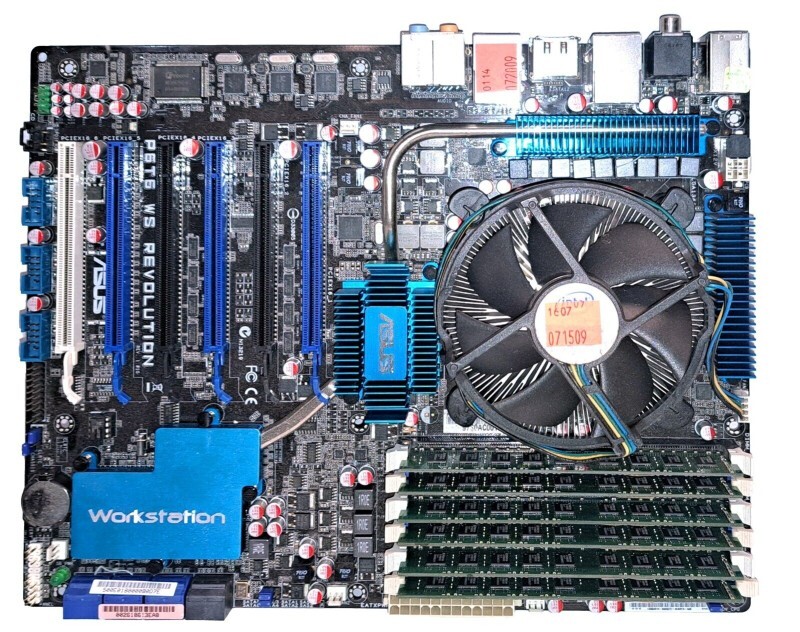

ASUS P6T6 WS Revolution workstation motherboard (Intel X58 / ICH10R with NVIDIA NF200, LGA 1366) supplied with an Intel Core i7-920 CPU, 12 GB of DDR3 RAM in all six DIMM slots, the CPU heat sink and fan, and the I/O plate. Two units are available; quantity is set in the listing.
Condition
Used: 60 day money back guarantee.
Specifications ParameterValueMPNP6T6 WS REVOLUTIONBrandASUSSupplied withIntel Core i7-920 (2.66 GHz), 12 GB DDR3 RAM in 6 DIMM slots, CPU heat sink and fan, I/O plateCPU socketLGA 1366 (Socket B)CPU supportIntel Socket 1366 Core i7 / Core i7 Extreme Edition; Xeon W5500/3600/3500, E5600/5500, X5600/5500, L5600/5500 series; CPUs up to 6 cores; Intel Dynamic Speed Technology (refer to ASUS for the CPU support list)ChipsetNVIDIA NF200 / Intel X58 / ICH10RSystem bus6.4 GT/s Intel QuickPath InterconnectMemory6 x DIMM, max. 24 GB, DDR3 MHz; non-ECC un-buffered and ECC memory; triple channel; Intel XMPMemory notesHyper DIMM support depends on the individual CPU. ECC un-buffered memory needs a Nehalem-WS 1S W3500 or Nehalem-EP E5500 series CPU. Refer to ASUS for the memory QVL.Multi-GPUNVIDIA 3-Way SLI; AMD CrossFireX; AMD Quad-GPU CrossFireXExpansion slots6 x PCIe 2.0 x16: 1 x x16, 2 x x16/x8, 2 x x8 mode, 1 x x4 mode. True x16 3-Way SLI in slots 1, 3 and 5 when slots 2 and 4 are emptyStorage, Intel ICH10R6 x SATA 3Gb/s (navy blue); RAID 0, 1, 5, 10Storage, Marvell 88SE63202 x SAS 3Gb/s (black); RAID 0, 1Storage, Marvell 88SE61212 x eSATA 3Gb/s (red); RAID 0LAN2 x Gigabit, Realtek 8111C; teaming supportedAudio8-channel HD audio, AD2000B codec; coaxial and optical S/PDIF out at back panel; ASUS Noise Filter; front panel jack-retasking, jack-detection, multi-streamingUSB12 x USB 2.0 (6 at mid-board, 6 at back panel)Workstation featuresASUS WS Heartbeat; G.P. Diagnosis Card; SAS onboard; ASUS SASsaby series card support; ASUS WS Diag. LEDOverclocking protectionASUS C.P.R. (CPU Parameter Recall)Power design16+2 phase; ASUS EPU-6 EngineThermalASUS Fan Xpert; Stack Cool 2; fanless heat-pipe designASUS featuresQ-Connector; TurboV; Express Gate; AI Nap; CrashFree BIOS 3; MyLogo 2; EZ Flash 2; Q-Shield; O.C. ProfileBack I/O2 x eSATA 3Gb/s; 2 x LAN (RJ-45); 6 x USB 2.0; 1 x coaxial S/PDIF out; 1 x optical S/PDIF out; 6 x audio jacks; 1 x PS/2 keyboard/mouse comboInternal I/O24-pin EATX power; 8-pin ATX 12V power; CPU fan; power fan; 3 x chassis fan; 3 x USB 2.0 headers (6 more ports); S/PDIF out header; CD audio in; TPM; front panel; system panel; chassis intrusionBIOS16 Mb flash ROM, AMI BIOS, Green, PnP, DMI v2.0, WfM2.0, ACPI v2.0a, SMBIOS v2.4ManageabilityWOL/WOR by PME, WOR by Ring, Chassis Intrusion, AI NET2ASUS support disc (ASUS spec)BIOS flash utility under DOS, AI Suite, ASUS Update, ASUS PC Probe II, anti-virus (OEM), Adobe Acrobat Reader 8.0, Microsoft DirectX 9.0C, image-editing suiteForm factorATX, 12 in x 9.6 in (30.5 cm x 24.4 cm) Included
ASUS P6T6 WS Revolution motherboard with Intel Core i7-920 CPU, 12 GB RAM, CPU heat sink and fan, and I/O plate, per unit purchased.
Quality control
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Shipping
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
Export compliance. Our products are subject to the U.S. Export Administration Regulations (EAR), overseen by the Bureau of Industry and Security (BIS) and the U.S. Census Bureau. We do not ship to Country Group E. Determining the Export Control Classification Number (ECCN) can take up to 30 days; where an export license is required, licensing can take a further 30-90 days. For international orders we require a written statement of the ultimate end user, the intended end use of each product, and the buyer's agreement to comply with the EAR. You will receive an email with the documentation; the order cannot be processed until it is complete.
Returns, and money-back guarantee
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
