Zombie Components LLC Sylmar, California ASUS P6T6 WS Revolution Motherboard with Intel Core i7-920 P6T6 WS REVOLUTION · Rev 1.01G LGA 1366 · Intel X58 / ICH10R · Core i7-920 · heat sink and fan
ASUS P6T6 WS Revolution workstation motherboard, Rev 1.01G, with an Intel Core i7-920 (2.66 GHz) installed and an Intel heat sink and fan fitted. ATX form factor, 12 x 9.6 in (30.5 x 24.4 cm), LGA 1366 socket, NVIDIA NF200 / Intel X58 / ICH10R chipset, six DDR3 DIMM slots and six PCIe 2.0 x16 slots.
Condition
Used: 60 day money back guarantee.
Specifications ParameterValueMPNP6T6 WS REVOLUTIONRevision1.01GBrandASUSCPU installedIntel Core i7-920, 2.66 GHz, with heat sink and fanSocketLGA 1366 (Socket B)CPU supportIntel Core i7 / Core i7 Extreme Edition; Xeon L5600/5500, X5600/5500, E5600/5500, W5500/3600/3500 series; up to 6 cores; Intel Dynamic Speed Technology (refer to ASUS for the CPU support list)ChipsetNVIDIA NF200 / Intel X58 / ICH10RSystem bus6.4 GT/s Intel QuickPath InterconnectMemory6 x DIMM, max. 24 GB, DDR3 1066/1333 MHz, 1600/1800/1866/2000 MHz (O.C.); non-ECC un-buffered, ECC memory; triple channel; Intel XMPExpansion slots6 x PCIe 2.0 x16: 1 x16, 1 x16 (x4 mode), 2 x16 (x8 mode), 2 x16 (x16/x8); true x16 3-way SLI in slots 1, 3 and 5 when slots 2 and 4 are emptyMulti-GPUNVIDIA 3-Way SLI; AMD CrossFireX and Quad-GPU CrossFireXStorageIntel ICH10R: 6 x SATA 3 Gb/s (RAID 0, 1, 5, 10); Marvell 88SE6320: 2 x SAS 3 Gb/s (RAID 0, 1); Marvell 88SE6121: 2 x eSATA 3 Gb/s (RAID 0)LAN2 x Gigabit, Realtek 8111C; teamingAudio8-channel HD audio, AD2000B codec; coaxial and optical S/PDIF out; ASUS Noise Filter; jack retasking, jack detection, multi-streamingUSB12 x USB 2.0 (6 back panel, 6 mid-board)Back I/OPS/2 keyboard/mouse combo, 2 x eSATA, 2 x RJ-45 LAN, 6 x USB 2.0, coaxial and optical S/PDIF out, 6 x audio jacksInternal I/O3 x USB 2.0 headers (6 ports), TPM, CD audio in, S/PDIF out header, front panel, system panel, chassis intrusion, CPU / power / 3 x chassis fan connectors, 24-pin EATX and 8-pin ATX 12V powerBIOS16 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SMBIOS v2.4ManageabilityWOL / WOR by PME, WOR by Ring, chassis intrusion, AI NET2Form factorATX, 12 x 9.6 in (30.5 x 24.4 cm) ASUS feature list
Workstation features: ASUS WS Heartbeat, WS Diag. LED, SAS onboard, ASUS SASsaby series card support, G.P. Diagnosis Card bundled.
Power and thermal: 16+2 phase power design, ASUS EPU-6 Engine, fanless heat-pipe design, Stack Cool 2, Fan Xpert.
Overclocking protection: ASUS C.P.R. (CPU Parameter Recall), TurboV, O.C. Profile. Other ASUS features: Express Gate, AI Nap, Q-Connector, Q-Shield, CrashFree BIOS 3, EZ Flash 2, MyLogo 2.
Support disc (per the ASUS specification): DOS BIOS flash utility, AI Suite, ASUS Update, PC Probe II, anti-virus (OEM), Adobe Acrobat Reader 8.0, DirectX 9.0c, image-editing suite.
Hyper DIMM support depends on the individual CPU. ECC un-buffered memory needs a Nehalem-WS 1S W3500 series or Nehalem-EP E5500 series processor. Refer to ASUS for the memory QVL.
Included

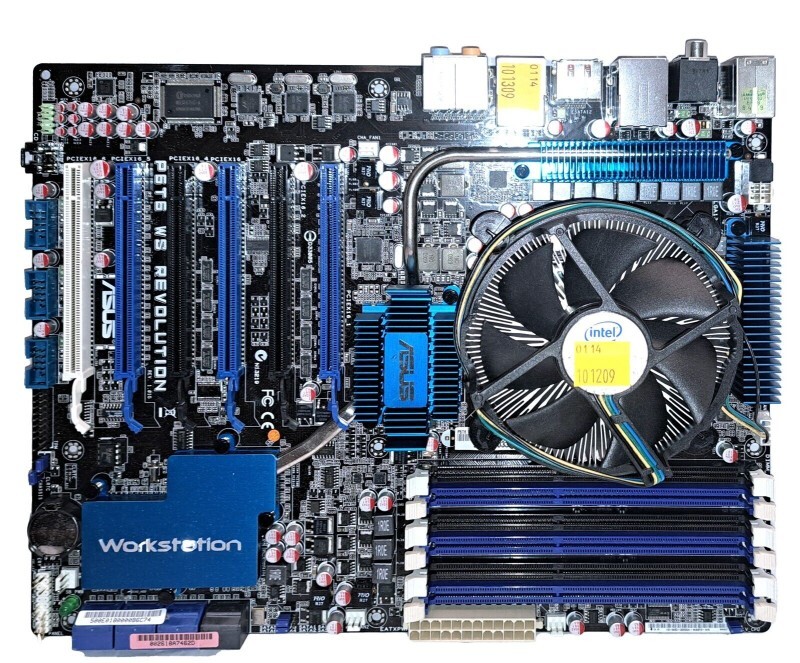

One ASUS P6T6 WS Revolution motherboard with the Intel Core i7-920 and heat sink and fan installed, as shown in the photos.
Not included:
Memory
I/O shield
Cables
Quality control
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Shipping
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
Export compliance. Our products are subject to the U.S. Export Administration Regulations (EAR), overseen by the Bureau of Industry and Security (BIS) and the U.S. Census Bureau. We do not ship to Country Group E. Determining the Export Control Classification Number (ECCN) can take up to 30 days; where an export license is required, licensing can take a further 30-90 days. For international orders we require a written statement of the ultimate end user, the intended end use of each product, and the buyer's agreement to comply with the EAR. You will receive an email with the documentation; the order cannot be processed until it is complete.
Returns, and money-back guarantee
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
