Important Notes:
- A good quality CAT5e/6/7 cable is essential in delivering quality content
- This kit is point to point and comes with 1 Transmitter and 1 Receiver. It’s not meant to work through routers or network switches
Specifications
- Audio connections: Digital Toslink or L/R Analog
- Zero latency
- Ultra-low jitter
- High-fidelity design
- Audio formats – Toslink Digital Audio: up to 5.1-channel, supports Dolby Digital, LPCM; L/R Analog Audio: PCM 2.0
- Audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz, and 192kHz up to 24-bit
- CAT6/7 transmission range: 984ft/300m (48kHz), 492ft/150m (96kHz), 328ft/100m (192kHz)
- Embedded DAC (digital-analog converter)
- Simultaneous audio outputs (Toslink & L/R) on the Receiver end with a Toslink source set to PCM 2.0
- POWER over CABLE (PoC) – Bi-directional PoC allows 1 power supply connected to either the TX or RX to power both units
- Power supply: USB (DC 5V/1A)
- Power consumption: 1.5 Watts (max)
- Operation temperature: 32 to 104° F
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS
What's in the Package

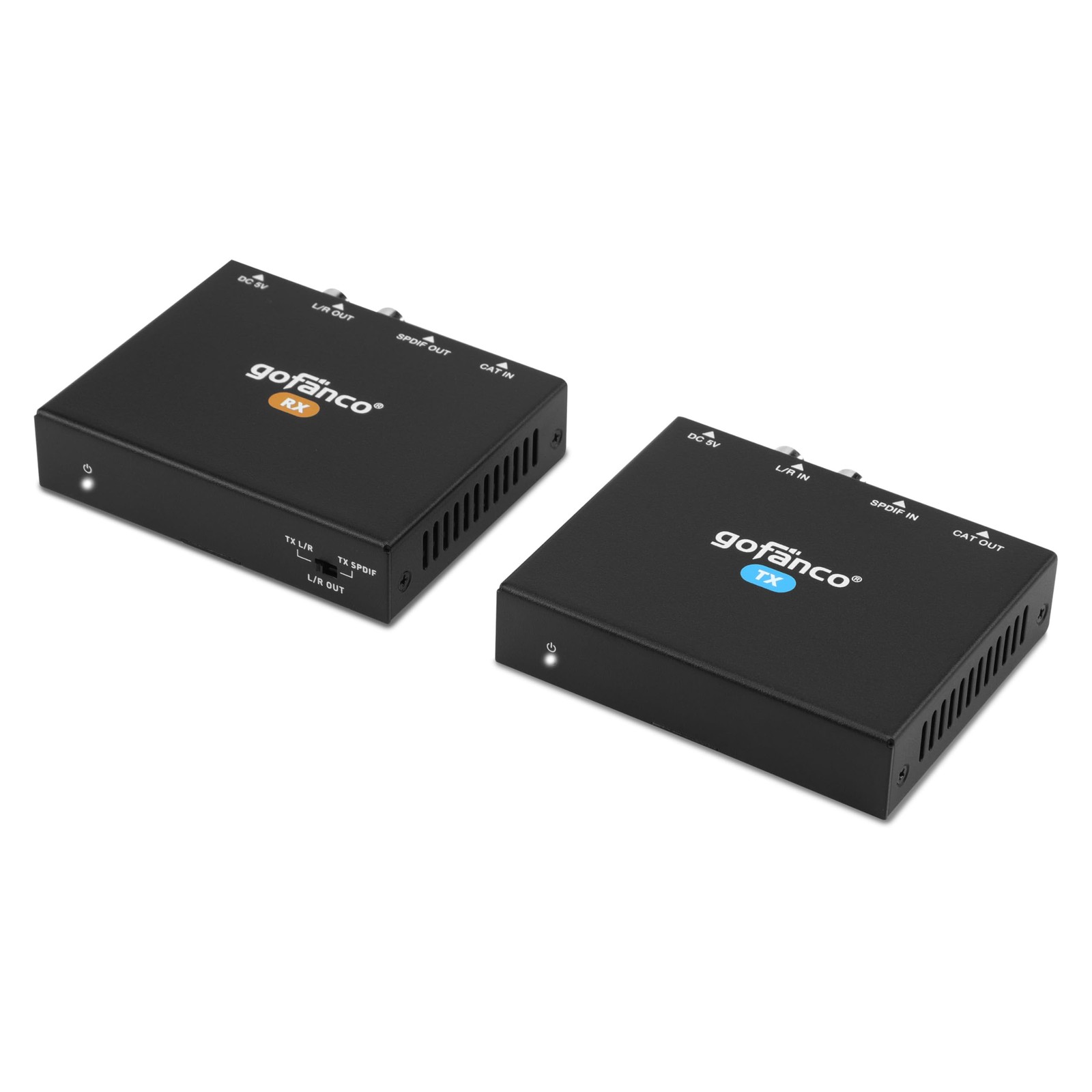

- Audio CAT Extender over CAT with DAC – 300m (TX & RX Kit)
- USB-A to micro-B cable (USB powered)
- User’s manual
& Support
- Limited -Year and Product Support
AUDIO CAT EXTENDER – Extend SPDIF digital (Toslink) or analog (L/R) audio up to 984ft/300m (48kHz), 492ft/150m (96kHz), 328ft/100m (192kHz) over a CAT5e/6 cable. *Note: Only input can be used at a time
AUDIO FORMATS – Toslink Digital Audio: up to 5.1-channel, supports Dolby Digital, LPCM; L/R Analog Audio: PCM 2.0; Audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz, and 192kHz up to 24-bit
FLAWLESS AUDIO TRANSMISSION – No latency/delay between the source and remote audio systems with Ultra-low jitter, and High-fidelity design; Embedded DAC enables digital to analog conversion and outputs audio to both Toslink and L/R (PCM 2.0 max) connectors simultaneously
POWER over CABLE (PoC) – Bi-directional PoC allows 1 power supply connected to either the TX or RX to power both units
SIMPLE INSTALLATION – No driver required; Surface mountable metal housing provides durability and minimizes EMI noise interference. FCC, CE & RoHS compliant.
