- AUDIO CAT EXTENDER – Extend SPDIF digital (Toslink) or analog (L/R) audio up to 984ft/300m (48kHz), 492ft/150m (96kHz), 328ft/100m (192kHz) over a CAT5e/6 cable. *Note: Only one input can be used at a time
- AUDIO FORMATS – Toslink Digital Audio: up to 5.1-channel, supports Dolby Digital, LPCM; L/R Analog Audio: PCM 2.0; Audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz, and 192kHz up to 24-bit
- FLAWLESS AUDIO TRANSMISSION – No latency/delay between the source and remote audio systems with Ultra-low jitter, and High-fidelity design; Embedded DAC enables digital to analog conversion and outputs audio to both Toslink and L/R (PCM 2.0 max) connectors simultaneously
- POWER over CABLE (PoC) – Bi-directional PoC allows 1 power supply connected to either the TX or RX to power both units
- SIMPLE INSTALLATION – No driver required; Surface mountable metal housing provides durability and minimizes EMI noise interference. FCC, CE & RoHS compliant.
Product description Extend SPDIF digital (Toslink) or analog (L/R) audio up to 984ft/300m (48kHz), 492ft/150m (96kHz), 328ft/100m (192kHz) over a CAT6/7 cable. *Important Notes - Only one input can be used at a time
- A good quality CAT5e/6/7 cable is essential in delivering quality content
- This kit is point to point and comes with 1 Transmitter and 1 Receiver. It’s not meant to work through routers or network switches
gofanco Audio Extender Over CAT6/7 - AUDIO FORMATS – Toslink Digital Audio: up to 5.1-channel, supports Dolby Digital, LPCM; L/R Analog Audio: PCM 2.0; Audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz, and 192kHz up to 24-bit
- FLAWLESS AUDIO TRANSMISSION – No latency/delay between the source and remote audio systems with Ultra-low jitter, and High-fidelity design; Embedded DAC enables digital to analog conversion and outputs audio to both Toslink and L/R (PCM 2.0 max) connectors simultaneously
- POWER over CABLE (PoC) – Bi-directional PoC allows 1 power supply connected to either the TX or RX to power both units
- SIMPLE INSTALLATION – No driver required; Surface mountable metal housing provides durability and minimizes EMI noise interference. FCC, CE & RoHS compliant.
Specifications - Audio connections: Digital Toslink or L/R Analog
- Zero latency, Ultra-low jitter, High-fidelity design
- Audio formats – Toslink Digital Audio: up to 5.1-channel, supports Dolby Digital, LPCM; L/R Analog Audio: PCM 2.0
- Audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz, and 192kHz up to 24-bit
- CAT6/7 transmission range: 984ft/300m (48kHz), 492ft/150m (96kHz), 328ft/100m (192kHz)
- Embedded DAC (digital-analog converter)
- Simultaneous audio outputs (Toslink & L/R) on the Receiver end with a Toslink source set to PCM 2.0
- POWER over CABLE (PoC) – Bi-directional PoC allows 1 power supply connected to either the TX or RX to power both units, Power supply: USB (DC 5V/1A), Power consumption: 1.5 Watts (max), Operation temperature: 32 to 104° F
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS

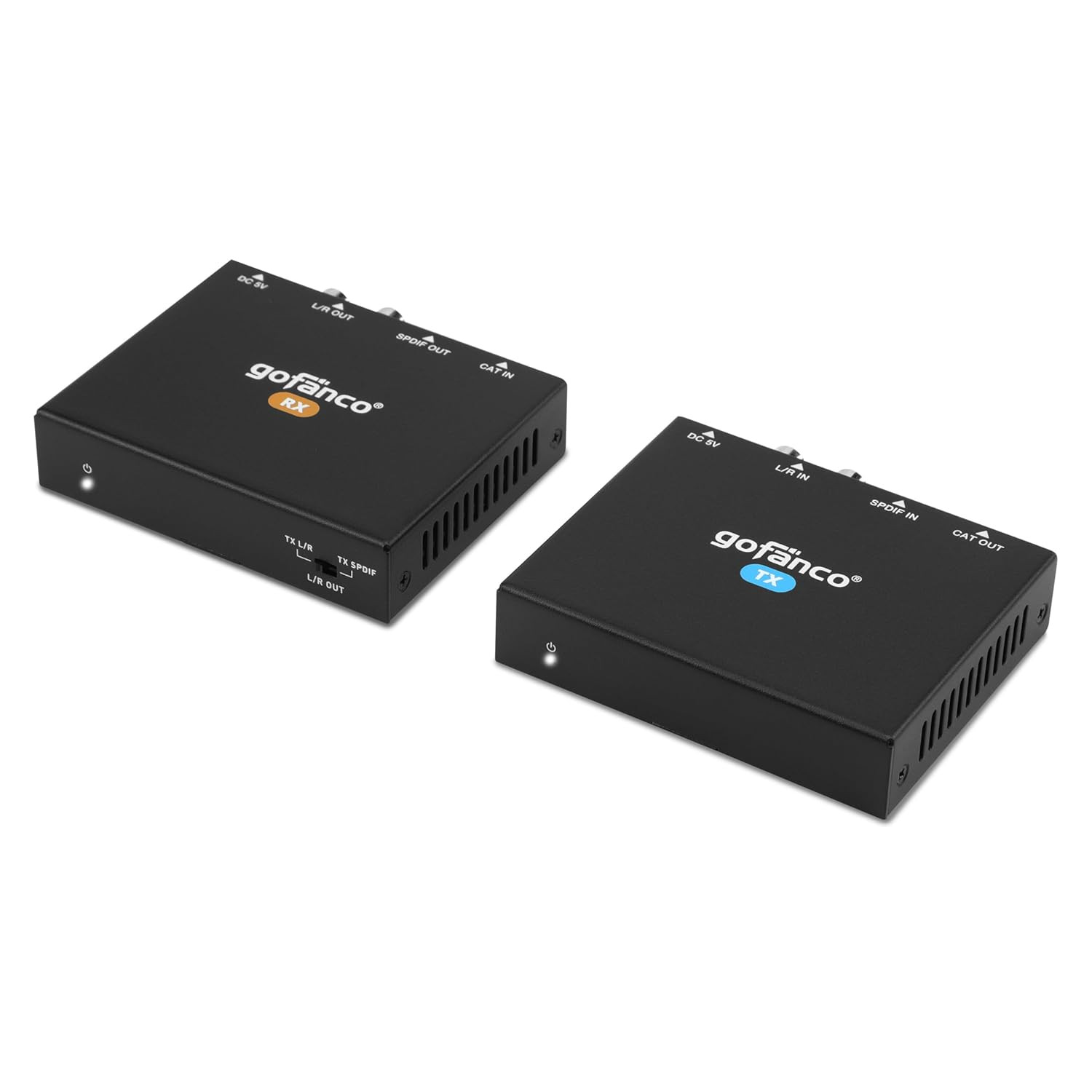

About Us Our team at gofanco strives to become the preferred provider of audio video and connectivity solutions for enterprise, higher education, corporate, and residential environments by developing and offering the highest quality products at competitive prices. Our solutions are designed to add value and solve problems, while maintaining an elevated user-experience. We are dedicated to serving you, the customer, with lifetime s upport and will go the extra mile to make sure you are taken care of. What's in the Package - Audio CAT Extender over CAT with DAC – 300m (TX & RX Kit)
- USB-A to micro-B cable (USB powered)
- User’s manual
 |
|
