About this item
- 6 Ethernet ports, 4 port PoE+ with 60W total power budget, 2 port uplink ideal for connecting NVR and Internet. Compact Design with Internal Power Supply
- Power over Ethernet with 802.3at and 802.3af compliant. Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices.
- CCTV function support remote power and data feeding up to 250m long distance, which is easy to expand network via ethernet cable to somewhere without power supply but need fix device such as IP Cameras.
- With PD detect function, this PoE switch support auto detect power device, will not burned non-standard PoE device or normal PoE switch. Pin assignment: alternative 1/2 (+), 3/6 (-).
- High Quality chipset inside: Use high quality POE chip to ensure stable operation of the product.Plug & play: Mode A alternative 1/2 (+), 3/6 (-) power supply, simple set up with no software or configuration needed
Product descriptionReliable PoE for 24/7 Consistent OperationIEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to30Wof power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Watchdog will be enabled under VLAN and Extend modes, and if a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
Extend PoE Reach. Enhance Client Security.Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Exceptional Built-Quality for Stable OperationBuild Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.
- ESD: Contact 6kV; Air 8kV
- Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet portsshielded withnickel-plated cooper alloyand robustSPCC metal casing.

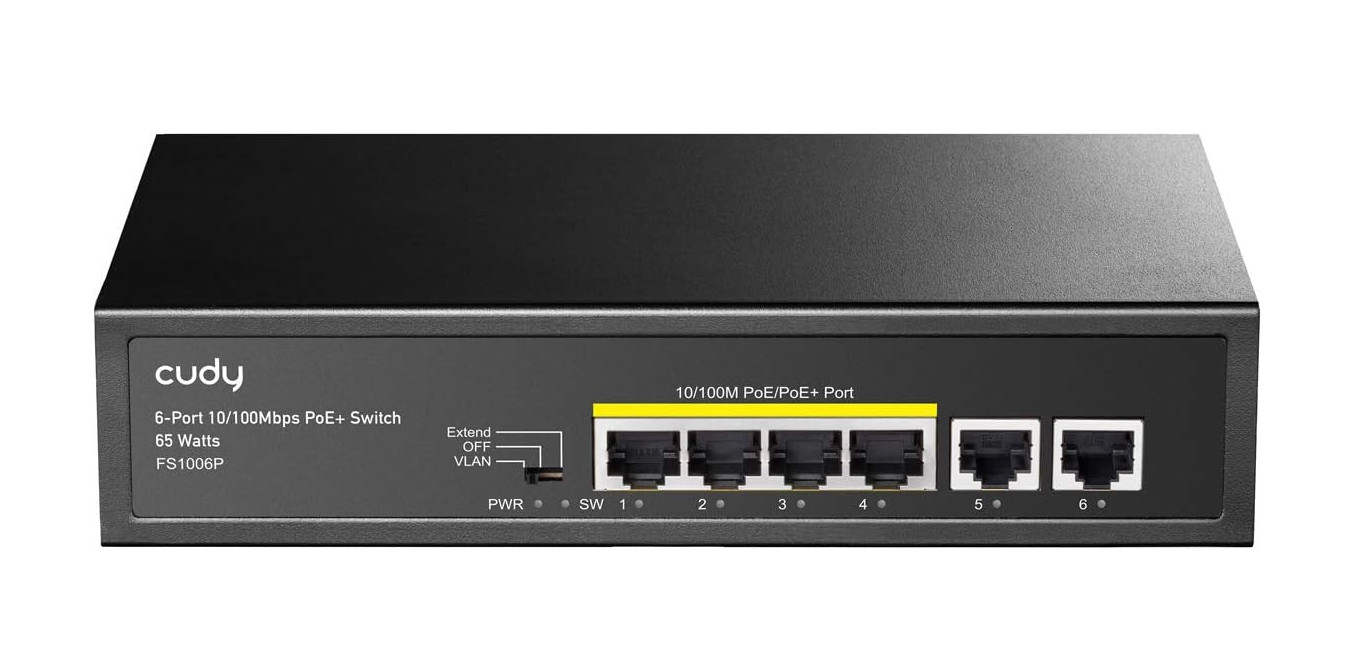

Versatile ScenariosSurveillanceOffice NetworkingCampuses Wi-FiAccesses and SignagesProduct informationFeatures & SpecsNumber of Ports6Compatible DevicesDesktopSwitch TypePoEPlatformNot Machine SpecificMaximum Power6E+1 WattsUpper Temperature Rating40 Degrees CelsiusInterfacePoEData Transfer Rate100 Megabits Per SecondAdditional detailsColor6-Port 100Mbps Ethernet PoE+ SwitchCase Material TypeAlloy Steel
Item detailsBrandCudyManufacturerShenzhen Cudy Technology Co., Ltd.UPC644925514862
Item Height1.26 inchesUnit Count1 CountWarranty DescriptionLimited Life Time WarrantyMeasurementsItem Dimensions L x W x H6.61"L x 3.66"W x 1.26"HItem Weight0.74 Kilograms
