Product Overview

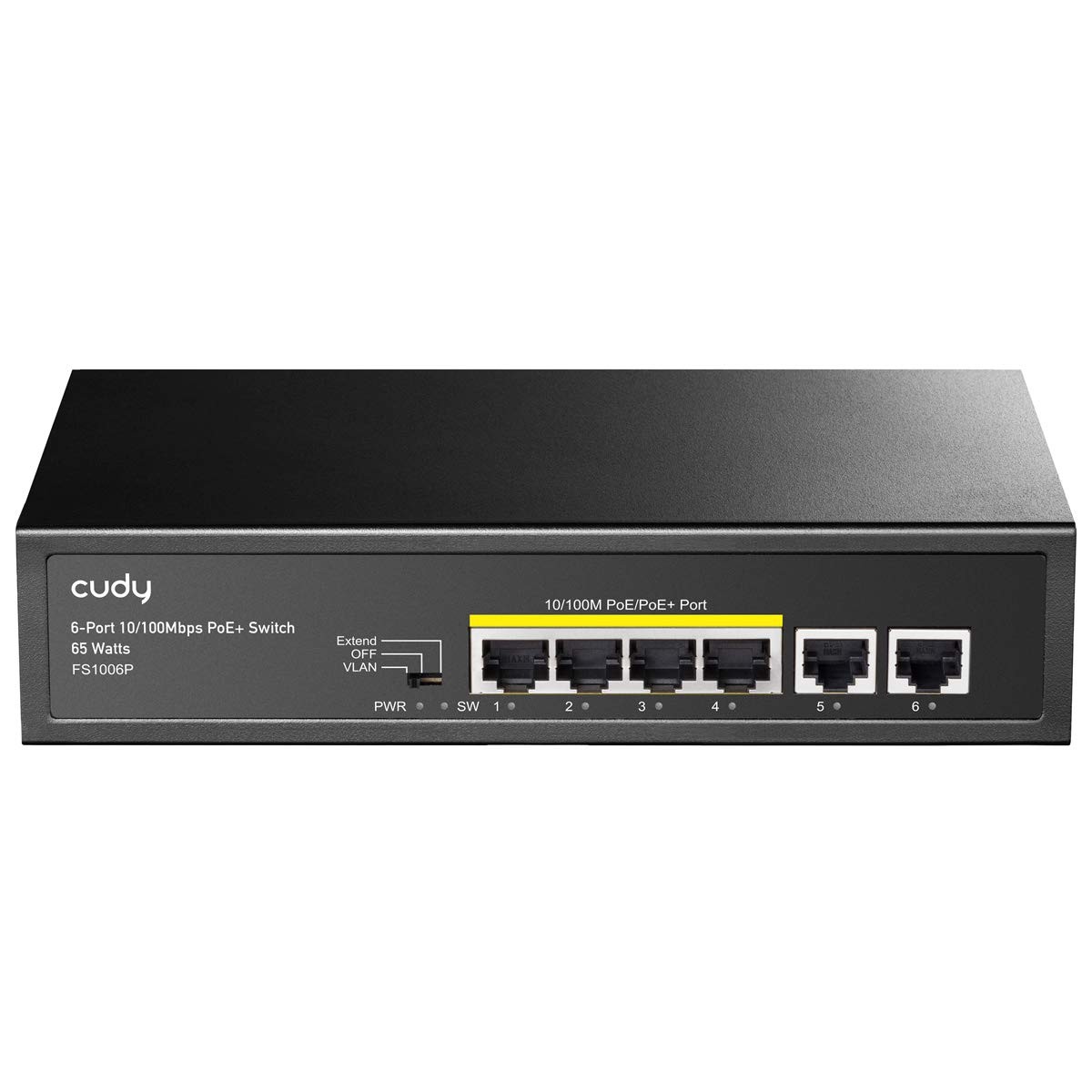

FS1006P is 6-port 10/100Mbps switch with 4 port PoE(Port1~4). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.FS1006P supports CCTV function which can improve the network environment and reduces network maintenance costs. It is easy to manage and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc.
Product Features
- Complies with IEEE802.3af/at Standard.
- Supports 60W total PoE power and up to 32W for each PoE port.
- Auto detect power device; will not burned non-standard PoE device or normal PoE switch.
- Supports port power supply prioritization, the continuous power supply of key node.
- key CCTV mode, remote power and data feeding up to 250m.
- Supports IEEE802.3 x full duplex flow control and back pressure half duplex flow control.
- Line-speed forwarding, intelligent identification.
- Supports storage–and-forward for Data exchange.
- Internal power supply with small case.
- Dimension 168*93*32mm.
- MTBF >50000 hour.
- Electrostatic standard: 4KV, air 6KV.
6 Ethernet ports, 4 port PoE+ with 60W total power budget, 2 port uplink ideal for connecting NVR and Internet. Compact Design with Internal Power Supply
Power over Ethernet with 802.3at and 802.3af compliant. Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Cameras, VoIP phones, wireless access points, and other PoE-powered devices.
CCTV function support remote power and data feeding up to 250m long distance, which is easy to expand network via ethernet cable to somewhere without power supply but need fix device such as IP Cameras.
With PD detect function, this PoE switch support auto detect power device, will not burned non-standard PoE device or normal PoE switch. Pin assignment: alternative 1/2 (+), 3/6 (-).
High Quality chipset inside: Use high quality POE chip to ensure stable operation of the product.Plug & play: Mode A alternative 1/2 (+), 3/6 (-) power supply, simple set up with no software or configuration needed.
